7.6 MR260 - PROTOTYPE VERSION DATASHEET
 |   |  |
|---|

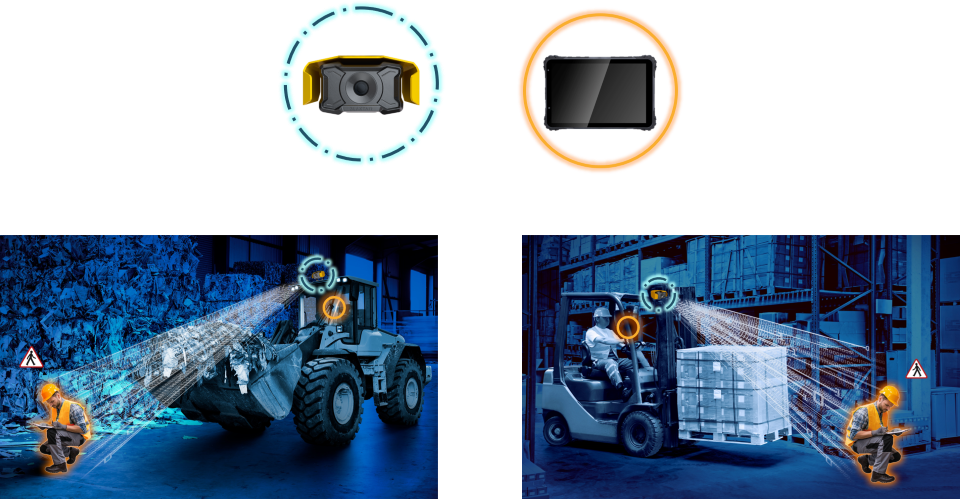

Description
Blaxtair saves lives. The most advanced pedestrian detection solution to prevent collisions with machinery, able at the same time to alert drivers to danger, to avoid unnecessary alarms and to helps HSE and site managers to control and reduce the risk of accidents. Compact, robust, connected, scalable, and easy to install, with unparalleled performance on the market, Blaxtair is the only AI camera capable of accurately detecting and locating pedestrians in real-time, in any posture (standing, crouching, or partially occulted) in all the most demanding work environments.
To go beyond the prevention of last-second accidents, the system integrates the Cloud-based IoT solution "Blaxtair Connect" which revolutionizes the safety of people around machines by dividing the coactivity between machines and pedestrians by 3.
Improves safety, working conditions, and productivity
Avoids unnecessary alerts that tire the driver
Controls and reduces the risks of accidents thanks to the integrated Blaxtair Connect
Future-proofed: online maintenance & remote software updates
Scalable: ready for future additional features or cloud services
Limitations and restrictions
The delivered product is in pre-series phase. Some limitations apply:
EMC certification and related CE, FCC certificates are on going
U bracket can show weakness in case of high vibrations. We advise to use 6-axis mount bracket for Camera installation
The Ethernet switch red connector is not waterproof. Installation shall be inside cabin and protected from water.
The software can show some issues, especially during start phase. A corrected version is under validation. Systems will be updated with this new SW version in the coming weeks.
Certifications and approvals (on going)
Standards | Type |
Water/dust protection | |
AI Camera | ISO 20653 - IP6K9K/IP67 |
Connector of camera cable | IP65 |
Smart display | IEC 60529 - IP67 ⚠️ Sealing level is ensured under the following conditions
|
Climatic test | |
AI Camera | ISO 16750-4 |
Smart display | ISO 16750-4 |
Vibrations & Shocks (tests on-going) | |
AI Camera | ISO 16750-3 |
Smart display | ISO 16750-3 |
Electromagnetic Compatibility (tests on-going) | |
AI Camera | Directive 2014/30/UE |
Smart display | Directive 2014/30/UE |
Electrical loads | |
AI Camera | ISO 7637-2 |
Smart display | ISO 7637-2 |
Radio frequency | |
Smart display | RED - Radio Equipment Directive 2014/53/EU |
Object detection systems assistance | |
Earth-moving machinery | ISO 16001 (on-going) |
Industrial truck | VDI 4482 (on-going) |
Marks | |
Blaxtair system | CE, FCC, Reach, RoHS |
Region | Regulatory compliance/quality marks |
Europe | CE |
Great Britain | UKCA |
USA | FCC ID |
Canada | IC ID |
IoT Country Approval
Region | Countries |
Europe | France, Germany, Austria, Spain, Poland, United Kingdom, Czech Republic, Italy, Belgium, Switzerland, Romania, Denmark, Portugal, Ireland, Indonesia, Ukraine, Slovak Republic, Hungary, Norway, Luxembourg, Sweden, Greece, Netherlands, Finland, Slovenia, Latvia, Estonia, Serbia, Monaco, Lituanie |
Middle East & Africa | La Reunion |
North America | United States of America, Canada, |
Installation/configuration notes

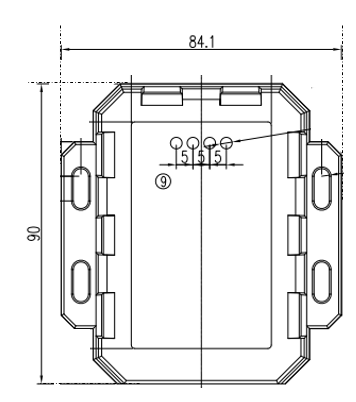

AI Camera without protective hood | ||
|---|---|---|
Front view | Side view | Bottom view |
 |  |  |

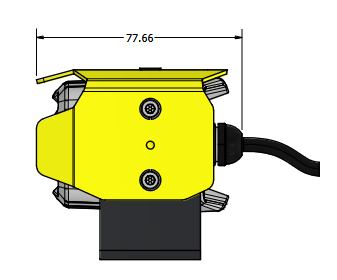

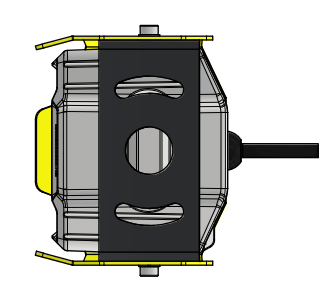

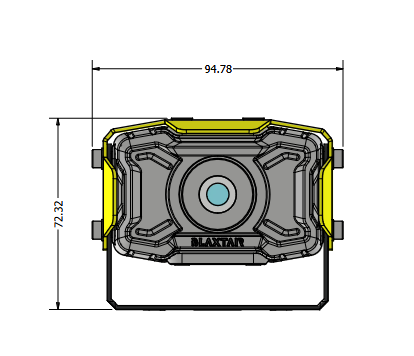

AI Camera with protective hood | ||
|---|---|---|
Front view | Side view | Bottom view |
to be confirmed | to be confirmed | to be confirmed |

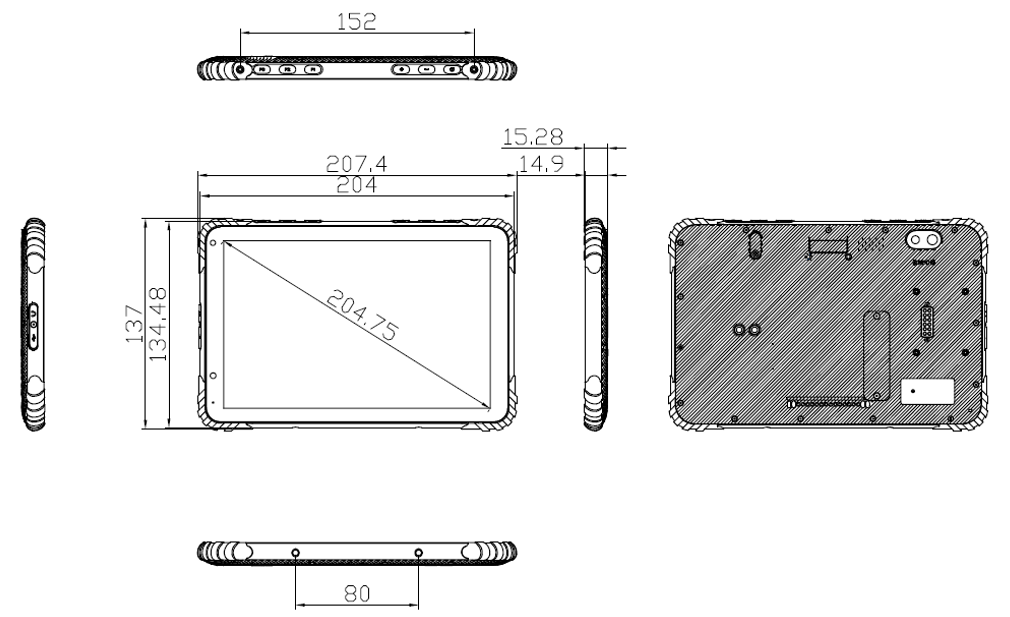

Smart display without cables |
|---|
 |
Smart display with metal craddle and cables |
|---|
 |
Smart display with Sunshield |
 |
Technical specifications
Electrical
Rated Voltage | 12-24 VDC nominal ⚠️ For vehicle voltage >24 VDC use a power converter. |
Input voltage | ~12-32 VDC |
Power Consumption | MR130: 18 W-25.2W @12V (1.5A-2.1A) ℹ️ Depends on system usage and configuration |
User connection
AI Camera | |
|---|---|

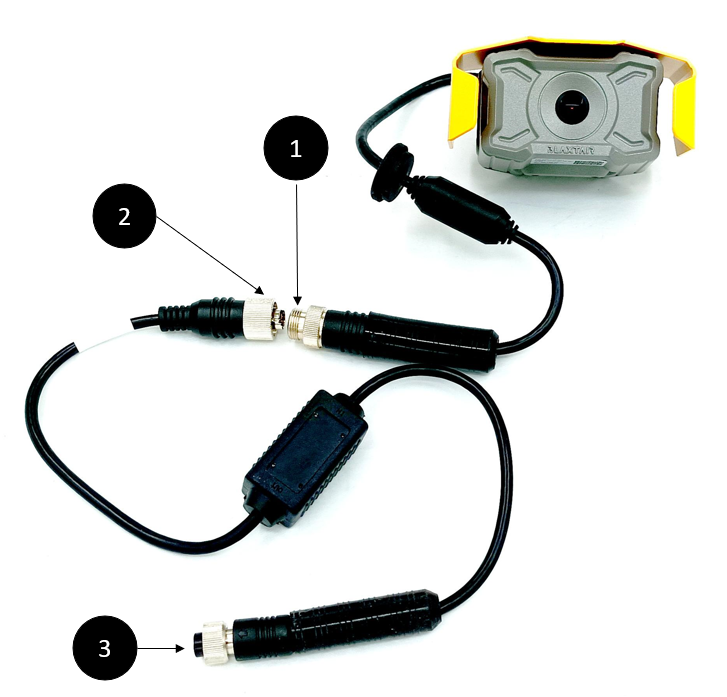

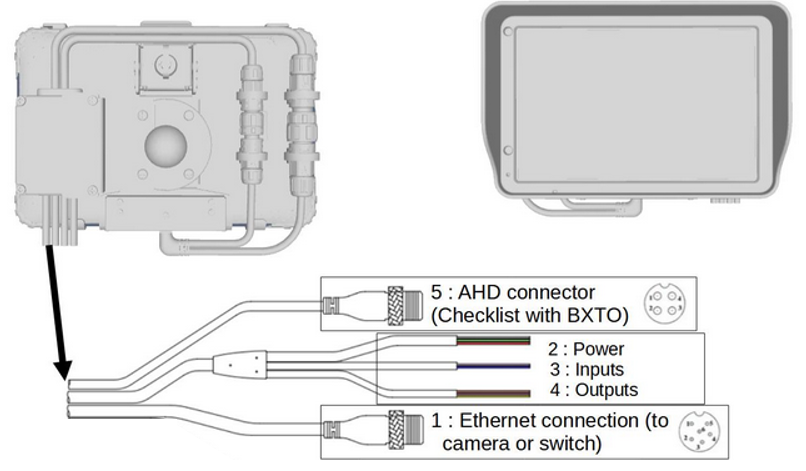

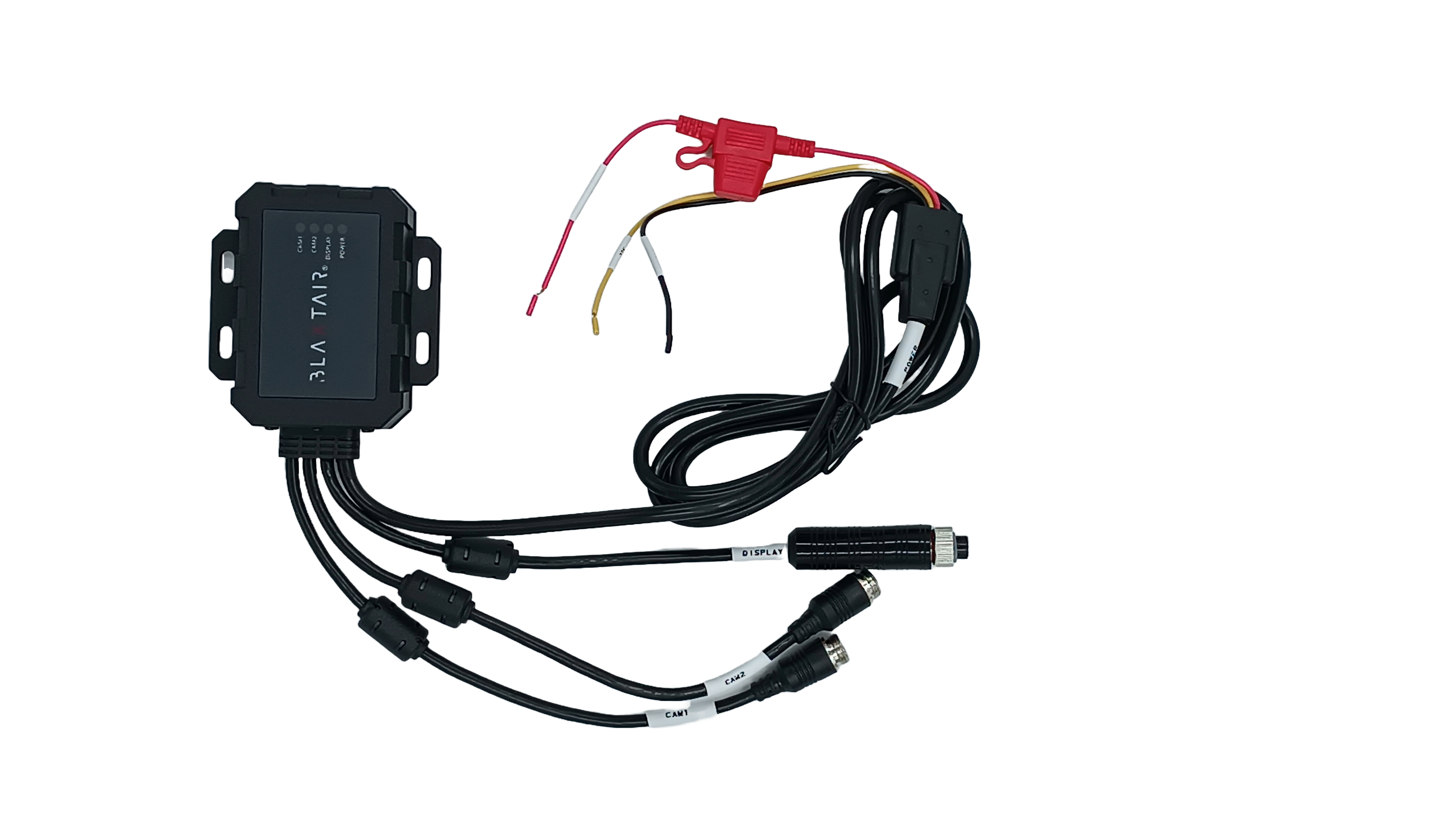

 | (1) 8P Female camera connector (Data + Power) |
Smart display connection | |||
|---|---|---|---|
Cable 1 | M12 | 1500 mm | Male M12 6 Pin |
Cable 2 | no connector | 4800 mm | System Power supply |
Cable 3 | no connector | 4800 mm | Discrete inputs x2 |
Cable 4 | no connector | 4800 mm | Discrete outputs x2 |
Cable 5 | M12 | 1500 mm | NA |
Switch | |
|---|---|
 | Red/ yellow wires : Power (both need to be connected) |
Video - AI camera
Dynamic range | 81 dB |
Frame Rate | 25 |
Shutter type | Electronic rolling shutter |
Resolution | 720p |
IMAGE PERFORMANCE - SMART DISPLAY
Resolution | 1280 x 800 px |
Start/Stop
Starting duration | ~0s with soft-off delay option |
Performance
Display latency | to be confirmed |
Detection Latency | Latency < 300 ms |
Operational Illumination range | >300 Lux (recommended for best performance) |
Pedestrian detection - Field of view | Diagonal - 152° |
Pedestrian position detected | Standing ℹ️ * Performance depends on the scene |
IoT
Technology | LTE |
Frequency band | B1 (FDD 2100) |
Miscellaneous
Supported Languages | English, French, German, Spanish |
Diagnostics | Various status conditions are tracked in the internal diagnostic log. Critical fault conditions will also be displayed on the screen |
Mechanical
AI Camera | |
|---|---|
Dimensions (L x W x D) | 80,4 x 53,4 x 71,5 mm |
Weight without protective hood | 425g |
Housing | |
Camera Housing | Aluminum alloy ADC12 |
Color | Yellow Ral 1003 for protective hood |
Camera cable | |
|---|---|
Length | 2 m (78,7 in) |
Smart display | |
|---|---|
Dimensions (L x W x H) | 207 x 137 x 15 mm (8,1 x 5,4 x 0,6 in) |
Weight | 528 g |
Environmental
Operational Temperature | |
AI Camera | -20°C to +70°C (-4 °F to 158 °F) |
Smart display | -20°C to +60°C (-4 °F to 140 °F) |
Storage Temperature | |
AI Camera | -30°C to +80°C (-22 °F to 176 °F) |
Smart display | -20°C to +70°C (-4 °F to 158 °F) |
Cold Start | |
Smart display | -20°C (-4 °F) |
