4.4 DRAFT Blaxtair AHD without display - Datasheet

Description

Blaxtair saves lives. The most advanced pedestrian detection solution designed to prevent collisions with machinery. Able at the same time to alert drivers to danger, avoids unnecessary alarms, and helps HSE and site managers control and reduce the risk of accidents. Compact, robust, and easy to install, with unparalleled performance on the market, Blaxtair is the only AI-powered camera capable of accurately detecting and locating pedestrians in real-time, in any posture (standing, crouching, or partially occulted) across the most demanding work environments.

Improves safety, working conditions, and productivity
Avoids unnecessary alerts that tire the driver
Controls and reduces the risks of accidents
Easy to install and to configure thanks to the Blaxtair app

Certifications and approvals

Standards	Type
Water/dust protection
AI Camera	ISO 20653 - IP6K9K and IP67
Connector of camera cable, AHD and GPIO cable	IP65
GPIO cable	IP65
Power cable	IP67
Climatic test
AI Camera	ISO 16750-4, IEC 60068-2-1, IEC 60068-2-2
Vibrations & Shocks
AI Camera	ISO 16750-3, IEC 60068-2-64 - Random vibration, IEC 60068-2-27 - Shocks
Electromagnetic Compatibility
AI Camera	Directive 2014/30/UE : EN 61000-6-3:2007+A1:2011+AC:2012 - Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for residential, commercial and light-industrial environments 25/09/2007 Directive 2014/30/UE : EN IEC 61000-6-2:2019 - Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity standard for industrial environments Directive 2014/30/UE, EN 12895 () FCC Title 47 Part 15 ()
Electrical loads
AI Camera	ISO 7637-2, ISO 16750-2 (excluding 5a/ 5b load dump profiles)
Object detection systems assistance - Earth-moving machinery	ISO 16001
Environment	Reach, RoHS
Marks (*)	CE (Europe), UKCA (Great Britain), FCC ID (USA), IC ID (Canada)

(*) Planned

Sealing level is ensured under the following conditions

Product housing shall not be opened during its overall life cycle
All screws/connectors shall remain in factory delivery configuration
Sealing caps shall remain on connectors if not connected. Caps not provided.

Technical specifications

Dimensions

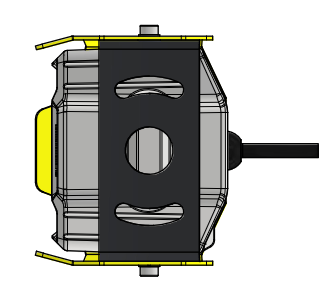

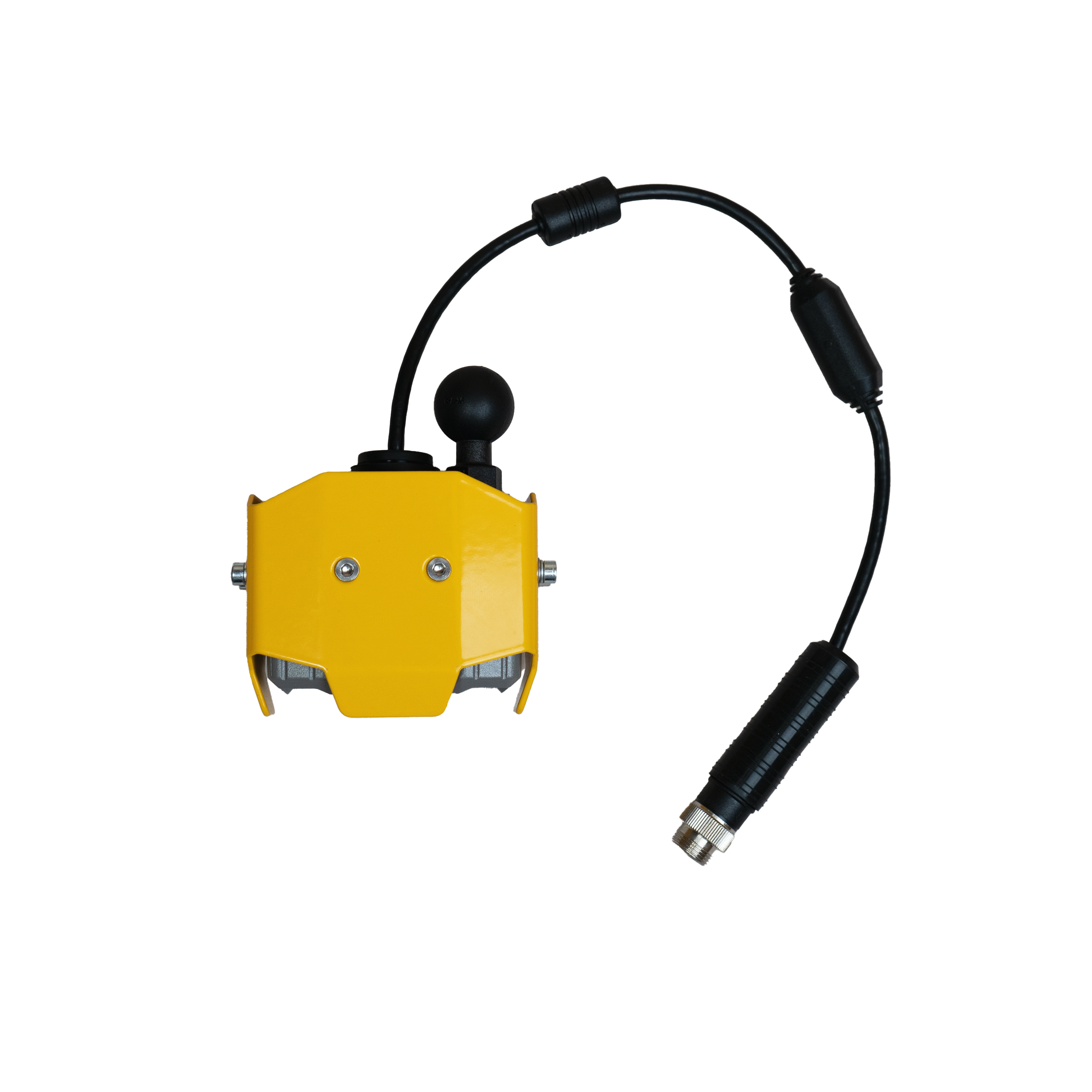

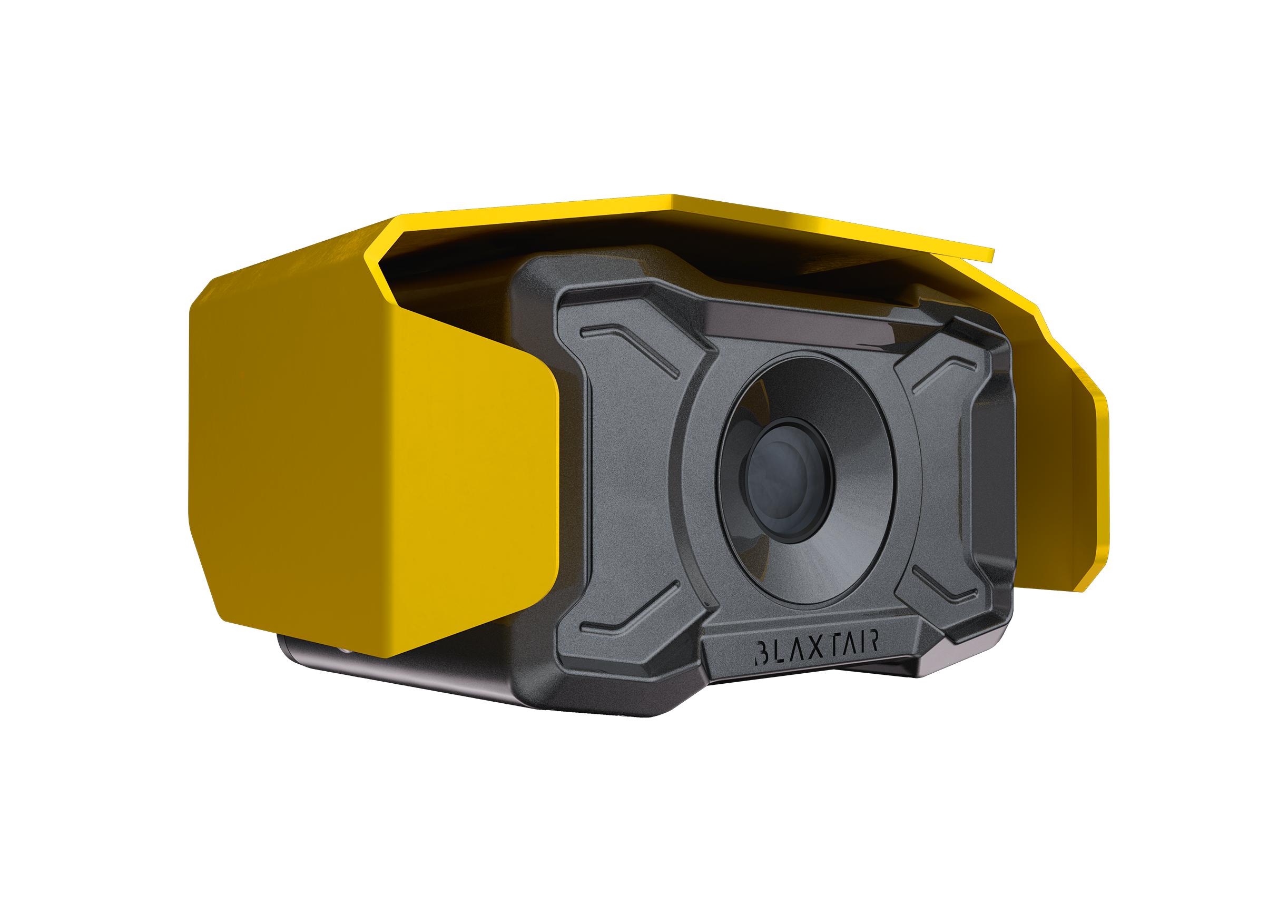

AI Camera with protective hood

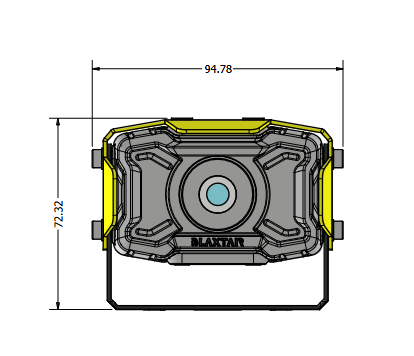

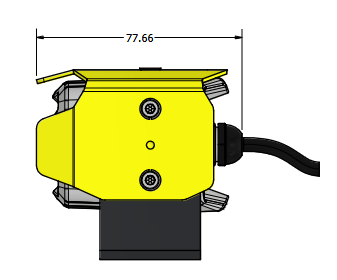

Front view	Side view	Bottom view

The dimensions are intended solely for commercial use. The illustrations are not at scale.

	Dimensions L x W x D [mm] (inch)	Weight (g)
AI Camera (without protective hood)	80,4 x 53,4 x 71,5 mm (3.2 x 2.1 x 2.8 in)	425g (without protective hood)

Housing - AI Camera
Camera Housing	Aluminum alloy ADC12
Color	Yellow Ral 1003 for protective hood Grey Ral 9007 for camera casing

Electrical

Rated Voltage	12-24 VDC nominal 32 VDC maximum For vehicle voltage >24 VDC use a power converter.
Input voltage	~12-32 VDC
Power Consumption	MR130: 25W@12V \| MR260: 36w @12V \| MR390: 60W max @12V \| MR520: 70W max @12V Depends on system usage and configuration

Environmental

Operational and Storage Temperature
AI Camera	Operational and storage : -20°C to +70°C (-4 °F to 158 °F)

Detection performance

Detection Latency	Latency < 300 ms According to tests performed in the laboratory (from pedestrian presence in the field of view to discrete output being activated)
Operational Illumination range	>300 Lux (recommended by standards in working environments such as EN 12464-1) From 100 Lux to 80000 Lux
Pedestrian detection - Field of view	Diagonal - 152° Horizontal - 130° Vertical - 70°
Pedestrian position detected	Standing, Crouched, Occluded/truncated, Lying *Performance depends on the scene
Starting duration	~0s with Fix sleep mode relay option ~ 22s from power On

User connectors

AI Camera and GPIO cable connectors

Cable name	Connector type	Length (mm)	Description
Camera Tail Cable	8pins	400 mm	Video, sound, data, power, ground

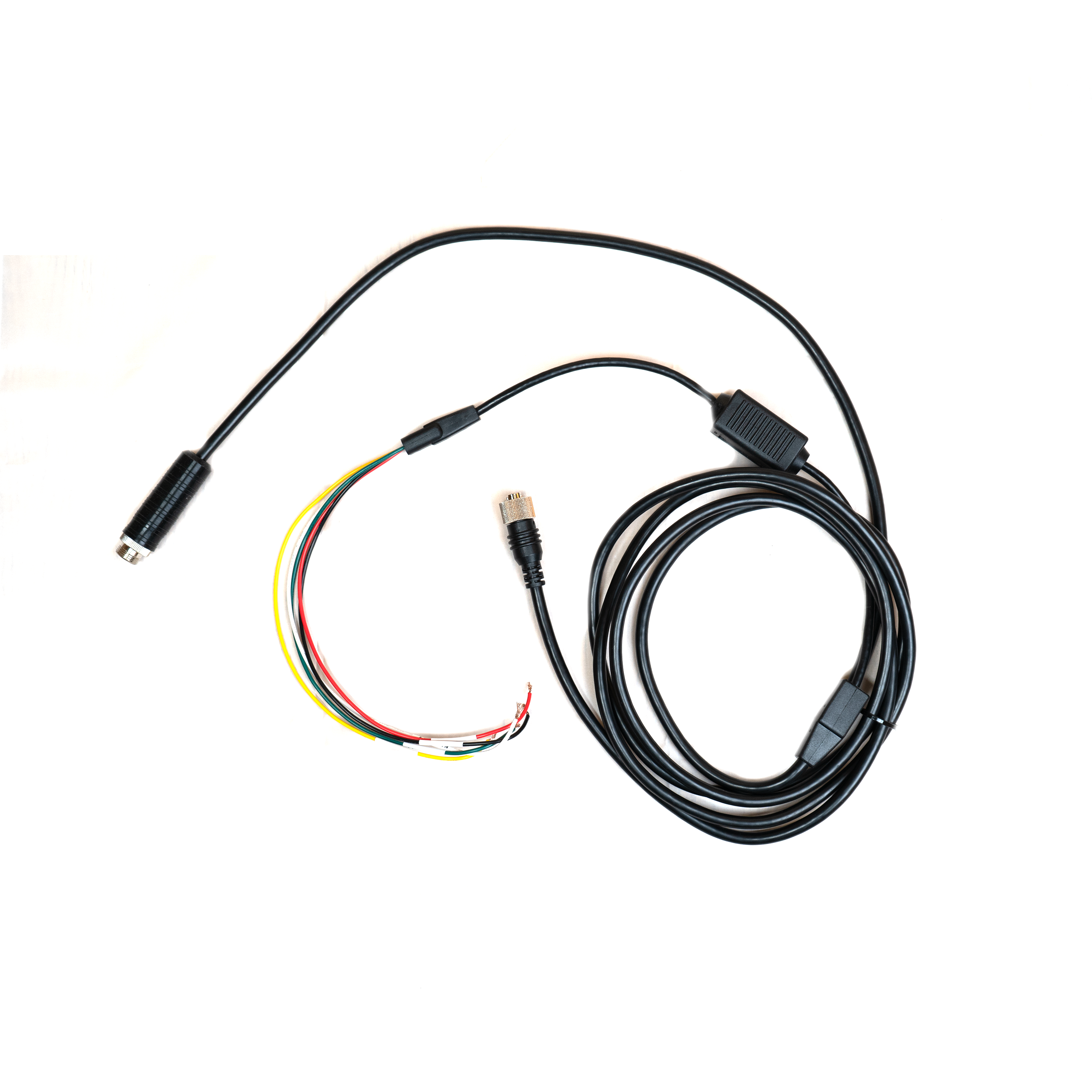

GPIO Cable - power part	8pins	3 000 mm	Video, sound, power, ground
GPIO Cable - Input/output part	Wires	3 000 mm	Ground: black Discrete output x 3: yellow, red, green Discrete input x 1: white

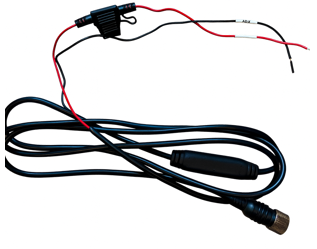

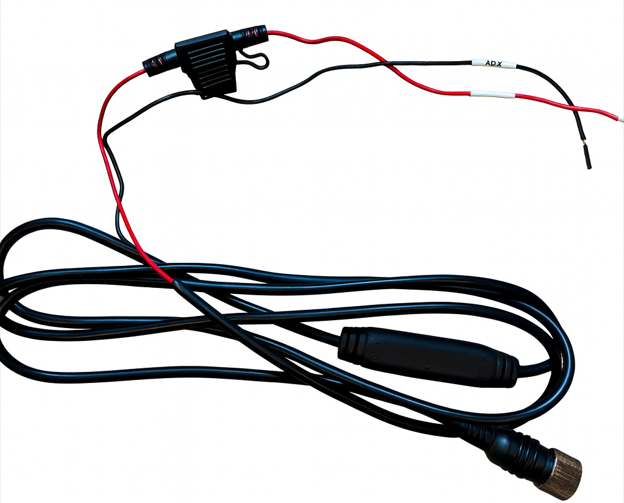

Power cable

8 pins to wires	2 000 mm	Power, ground

BXT AHD configuration device and configuration cable (not included)

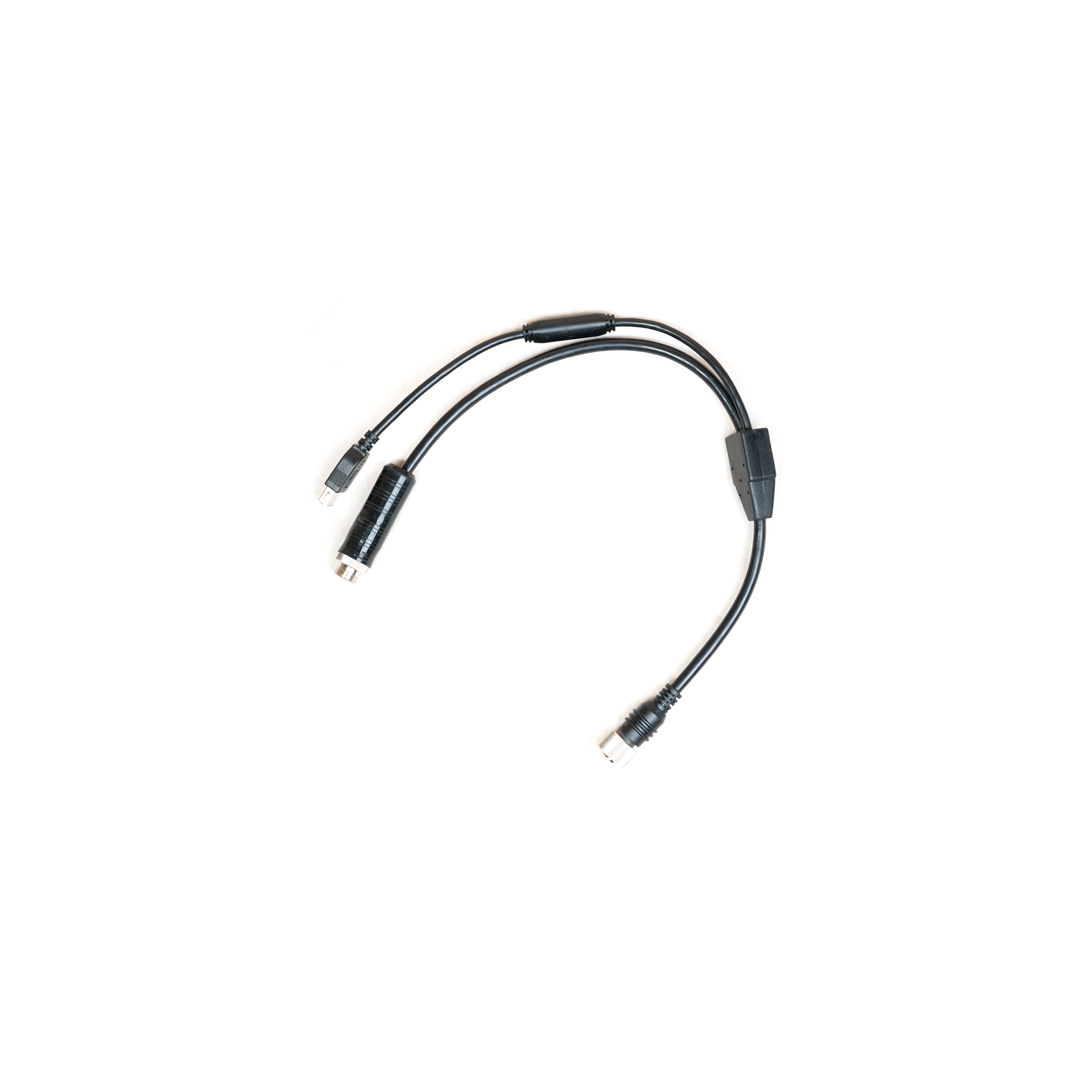

Extension split cable to be used for camera configuration, video stream visualization, and software update.

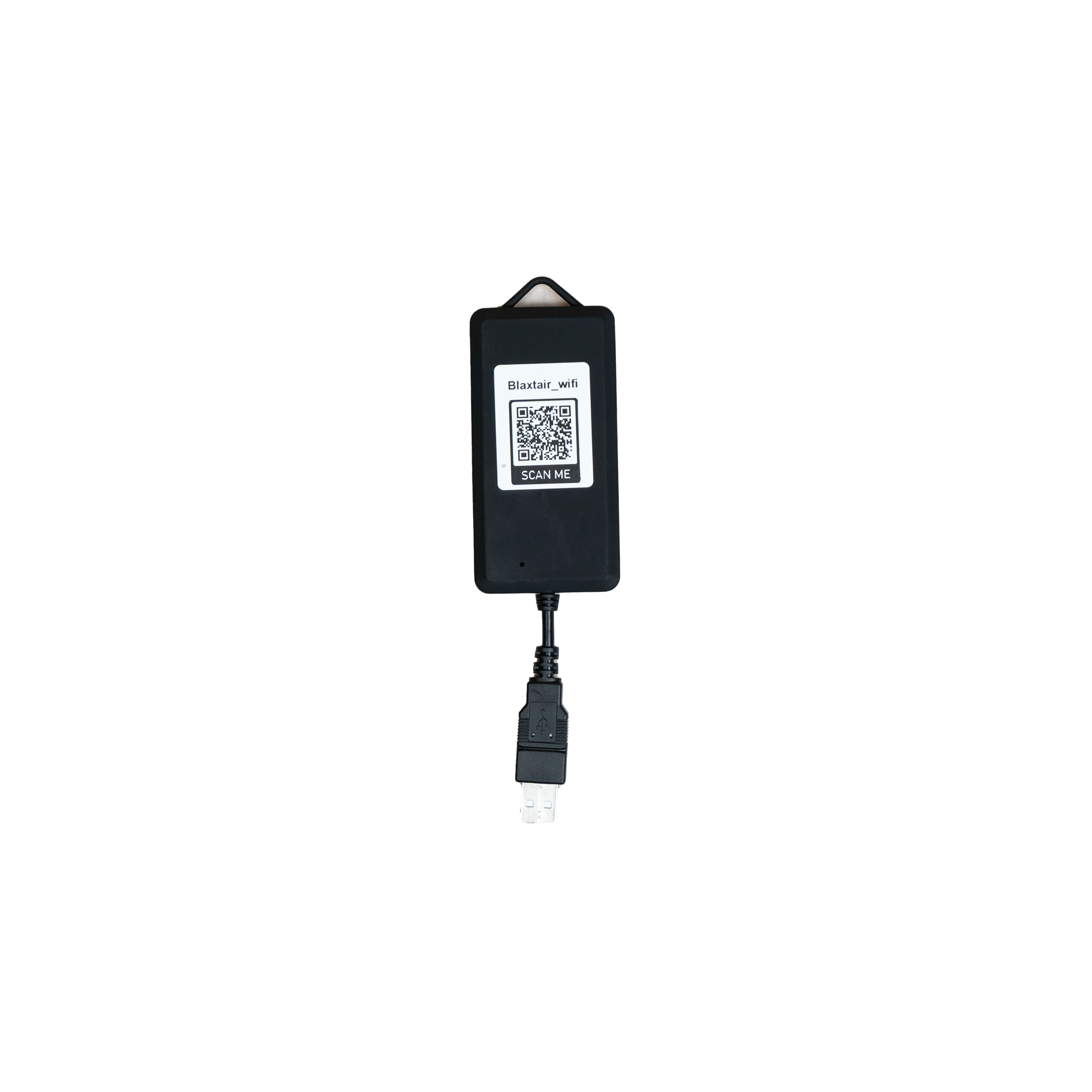

BXT configuration device to be connected between camera tail cable and GPIO cable before launching configuration / software update procedure.

Configuration device not provided in the AHD kits. To be purchased separetly from Arcure.

Configuration to be performed using Blaxtair app using a computer or a smart phone. The Blaxtair app allows to connect the BXT AHD configuration device by scanning the QR code on the configurator using the app (or connecting to the Blaxtair WiFi generated by the configuration device).

Miscellaneous

Supported Languages	English, French, German, Spanish
Diagnostics	The internal diagnostic log tracks various status conditions. Using an LED buzzer with this AHD product is essential to visualize diagnostic results and quickly identify when the system is not functioning properly.

Ordering information

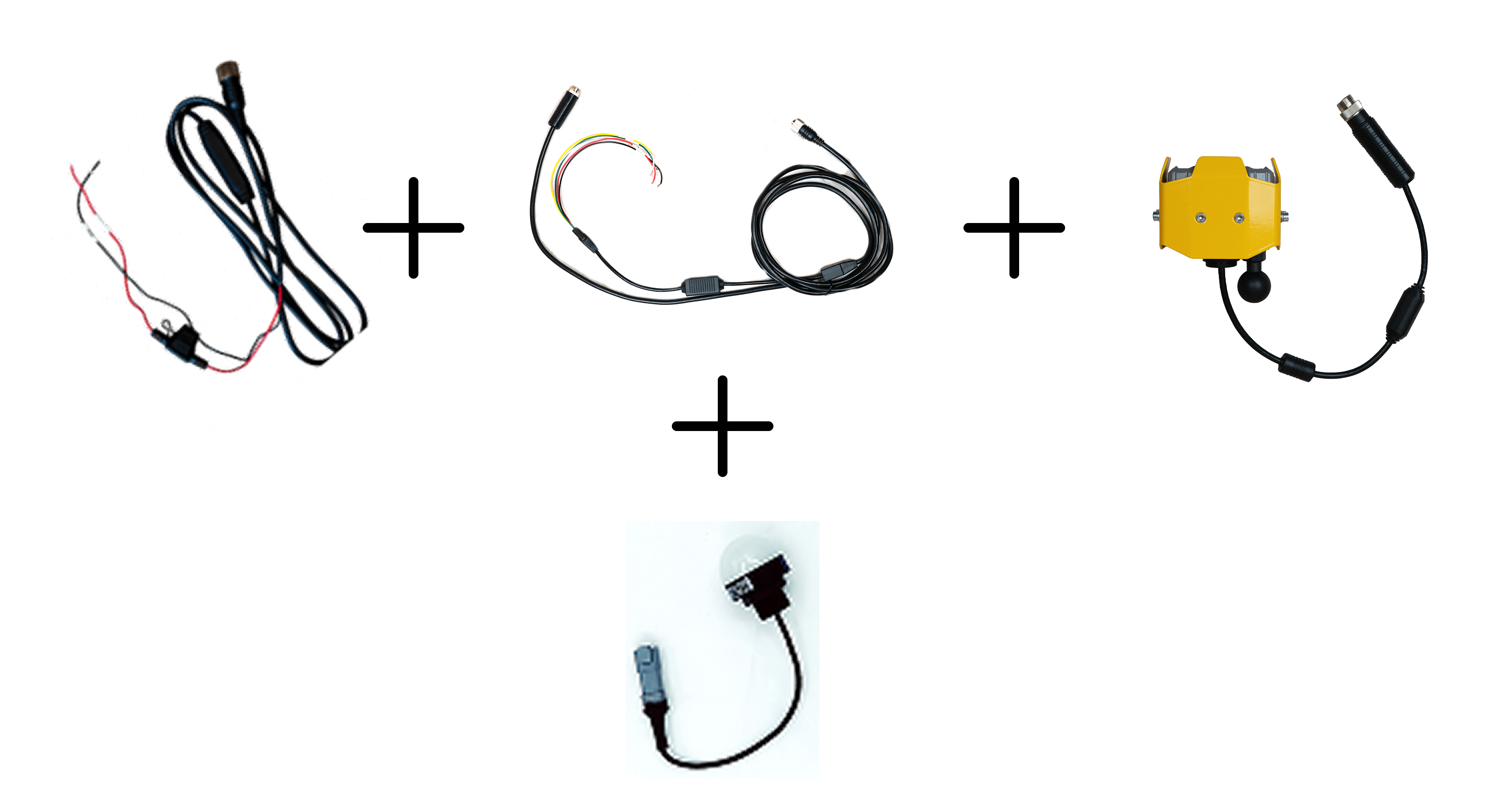

BXT Detection system - AHD MR130 NO display with Led buzzer version

110-950-012

HS code

8528.5900

1 x BXT AHD AI camera with 0.4m cable and U-bracket,

1 x BXT AHD GPIO cable, 3m,

1 x BXT AHD power cable, 2m,

1 x 8-pin extension AHD camera cable, male to female, 5m,

1 x Led buzzer with 3m cable and mounting kit,

1 x installation manual

BXT Detection system - AHD MR130 NO display NO Led buzzer version

110-950-011

HS code

8528.5900

1 x BXT AHD AI camera with 0.4m cable and U-bracket,

1 x BXT AHD GPIO cable, 3m,

1 x BXT AHD power cable, 2m,

1 x 8-pin extension AHD camera cable, male to female, 5m,

1 x installation manual

BXT AHD Configuration device
110-765-001	HS code	( * )
1 x BXT configuration device, 1 x Split cable - Male 8pins / Female USB A + female 8 pins 1 x Installation manual

All information may change without notice.

Configuration device not provided in the AHD kits. To be purchased separetly from Arcure.

WARNING:

The Blaxtair AHD system without display must be combined with a multiple state warning device such as Led buzzer. The Led buzzer allows to identify if there is an alert (red), no alert (green), system not working (purple).

In case, Blaxtair AHD system without display and without Led buzzer is installed, it is the responsibility of the client to ensure that the warning device to be used allows to identify the different states of the Blaxtair system (alert, no alert, diagnostic).

WARNING:

You cannot connect one LED buzzer to multiple cameras; each camera requires its own LED buzzer.
