7.6 BLAXTAIR MR260 - DRAFT DATASHEET

Introduction

Please find the PDF version at this link.

Blaxtair saves lives. The most advanced pedestrian detection solution to prevent collisions with machinery, able at the same time to alert drivers to danger, to avoid unnecessary alarms and to helps HSE and site managers to control and reduce the risk of accidents. Compact, robust, connected, scalable, and easy to install, with unparalleled performance on the market, Blaxtair is the only AI camera capable of accurately detecting and locating pedestrians in real-time, in any posture (standing, crouching, or partially occulted) in all the most demanding work environments.
To go beyond the prevention of last-second accidents, the system integrates the Cloud-based IoT solution "Blaxtair Connect" which revolutionizes the safety of people around machines by dividing the coactivity between machines and pedestrians by 3.

Improves safety, working conditions, and productivity
Avoids unnecessary alerts that tire the driver
Controls and reduces the risks of accidents thanks to the integrated Blaxtair Connect
Future-proofed: online maintenance & remote software updates
Scalable: ready for future additional features or cloud services

Certifications and Approvals

Standards	Type
Water/dust protection
AI Camera	ISO 20653 - IP6K9K and IP67
Smart display	IEC 60529 - IP67
BXT Switch double camera	IEC 60529 - IP67
Connector of camera cable	IP65
Climatic test
AI Camera	ISO 16750-4, IEC 60068-2-14, IEC 60068-2-1, IEC 60068-2-2
Smart display	ISO 16750-4, IEC 60068-2-14
BXT Switch double camera	ISO 16750-4, IEC 60068-2-14, IEC 60068-2-1, IEC 60068-2-2
Vibrations & Shocks
AI Camera Smart Display BXT Switch double camera	ISO 16750-3, IEC 60068-2-64 - Random vibration, IEC 60068-2-27 - Shocks
Electromagnetic Compatibility
AI Camera	Directive 2014/30/UE, ISO 10605, ISO 11452-2, ISO 11452- 4 EN 12895, ICES-003 Issue 05, FCC Title 47 Part 15
Smart display	Directive 2014/30/UE, EN 12895, ISO 13766-1, ISO 14982-1, ICES-003 Issue 05, FCC Title 47 Part 15
BXT Switch double camera	Directive 2014/30/UE, ISO 10605, ISO 11452-2, ISO 11452- 4, EN 12895 ICES-003 Issue 05, FCC Title 47 Part 15 (*)
Electrical loads
AI Camera	ISO 7637-2, ISO 16750-2 (excluding 5a/ 5b load dump profiles)
Smart display	ISO 7637-2, ISO 16750-2
BXT Switch double camera	ISO 7637-2, ISO 16750-2 - excluding 5a/ 5b load dump profiles)
Radio frequency	RED - Radio Equipment Directive 2014/53/EU, UKSI 2017 N°2016
Object detection systems assistance Earth-moving machinery	ISO 16001
Environment	Reach, RoHS
Marks	CE (Europe), UKCA (Great Britain), FCC ID(USA), IC ID (Canada)
IOT - technology	LTE, CE RED, FCC ID, IC ID, UKCA, RMM, SAR
IOT - Approvals
Europe	France, Germany, Austria, Spain, Poland, United Kingdom, Czech Republic, Italy, Belgium, Switzerland, Romania, Denmark, Portugal, Ireland, Indonesia, Ukraine, Slovak Republic, Hungary, Norway, Luxembourg, Sweden, Greece, Netherlands, Finland, Slovenia, Latvia, Estonia, Serbia, Monaco, Lituanie
Middle East & Africa	La Réunion
North America	United States of America, Canada,
Asia pacific	Australia, Nouvelle-Caledonie, Tahiti

Sealing level is ensured under the following conditions

Product housing shall not be opened during its overall life cycle
All screws/connectors shall remain in factory delivery configuration
Sealing caps shall remain on connectors if not connected

(*) Planned

Technical specifications

Dimensions and weight

AI Camera with protective hood

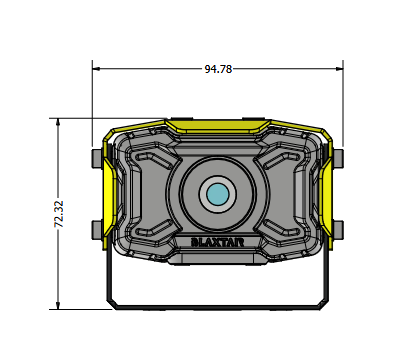

Front view

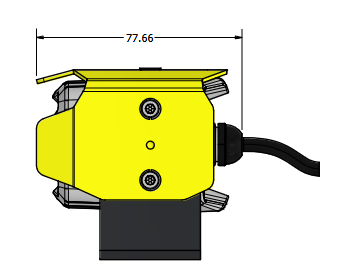

Side view

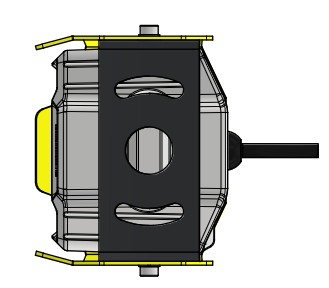

Bottom view

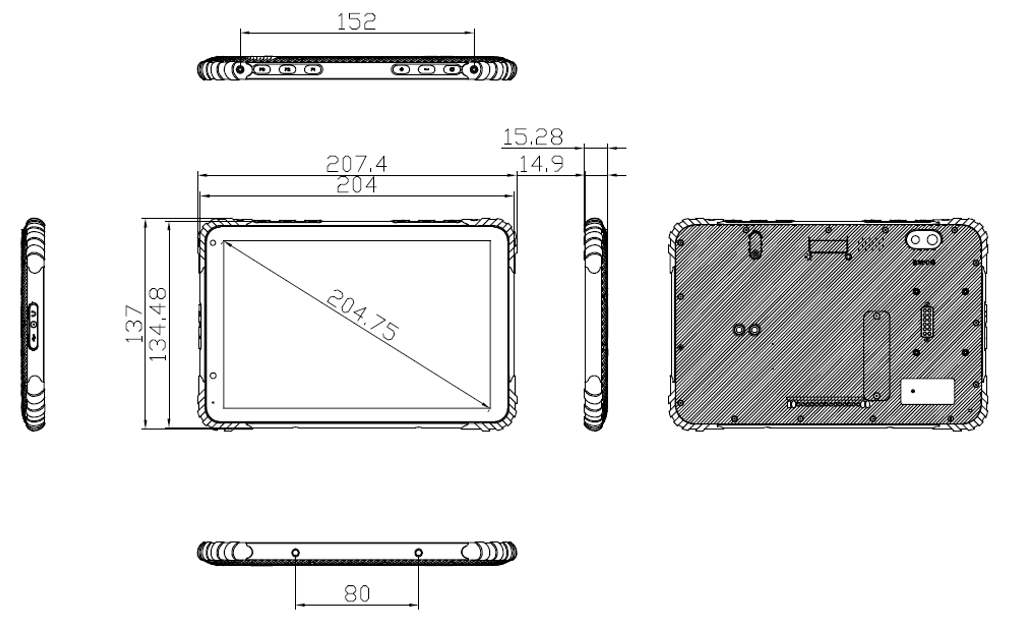

Smart Display without metal cradle

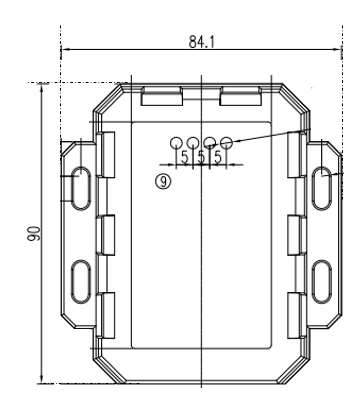

BXT Switch Double Camera

The dimensions are intended solely for commercial use. The illustrations are not at scale.

	Dimensions L x W x D [mm] (inch)	Weight (g)
AI Camera (without protective hood)	80,4 x 53,4 x 71,5 mm (3.2 x 2.1 x 2.8 in)	425g (without protective hood)
Smart display	207 x 137 x 15 mm (8,1 x 5,4 x 0,6 in)	528 g
BXT Switch double camera	90 x 84,1 mm (3,5x3,3 in)	420 g

Housing - AI Camera
Camera Housing	Aluminum alloy ADC12
Color	Yellow Ral 1003 for protective hood Grey Ral 9007 for camera casing

Electrical

Rated Voltage	12-24 VDC nominal 32 VDC maximum For vehicle voltage >24 VDC use a power converter.
Input voltage	~12-32 VDC
Power Consumption	MR130: 18 W-25.2W @12V (1.5A-2.1A) M260 : 23.4W - 32.4W @12V (1.95A-2.7A) Depends on system usage and configuration

Environmental

Operational and Storage Temperature
AI Camera	-20°C to +70°C (-4 °F to 158 °F)
Smart display	-20°C to +60°C (-4 °F to 140 °F)
Smart display - cold start	-20°C (-4 °F)
BXT switch double camera	-20°C to +70°C (-4 °F to 158 °F)

Detection performance

Detection Latency (*)	Latency < 300 ms
Operational Illumination range	>300 Lux (recommended for best performance) From 100 Lux to 80000 Lux
Pedestrian detection - Field of view	Diagonal - 152° Horizontal - 130° Vertical - 70°
Pedestrian position detected	Standing, Crouched, Occluded/truncated, Lying Performance depends on the scene
Starting duration	~0s with Fix sleep mode relay option from sleep mode : ~ 17s for alarms/ ~ 21s for video stream ~ <1min from cold boot

(*) Planned

Video - AI camera

Dynamic range	81 dB
Frame Rate	25 fps
Shutter type	Electronic rolling shutter
Resolution	720p

Image - smart display

Resolution

1280 x 800 px

Miscellaneous

Supported Languages	English, French, German, Spanish
Diagnostics	Various status conditions are tracked in the internal diagnostic log. Critical fault conditions will also be displayed on the screen

User connections

8" Smart display with metal craddle and cables

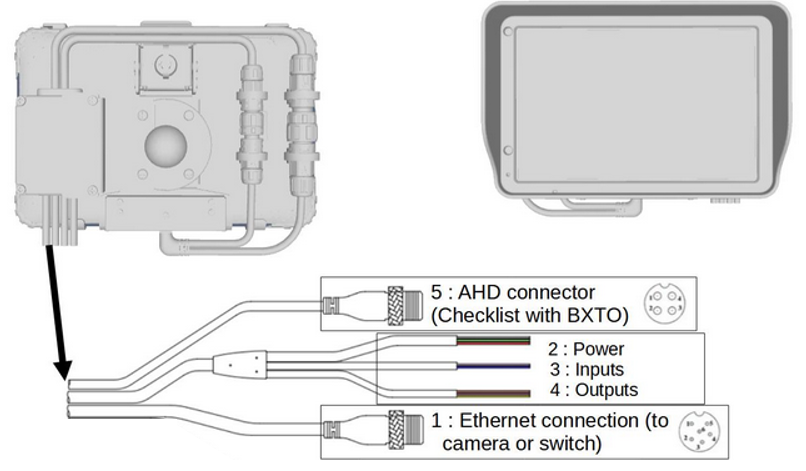

Cable 1	GX12	1500 mm	Male GX12 6 Pin Ethernet and power supply of camera
Cable 2	no connector	4800 mm	System Power supply
Cable 3	no connector	4800 mm	Discrete inputs x2
Cable 4	no connector	4800 mm	Discrete outputs x2
Cable 5	GX12	1500 mm	AHD connector

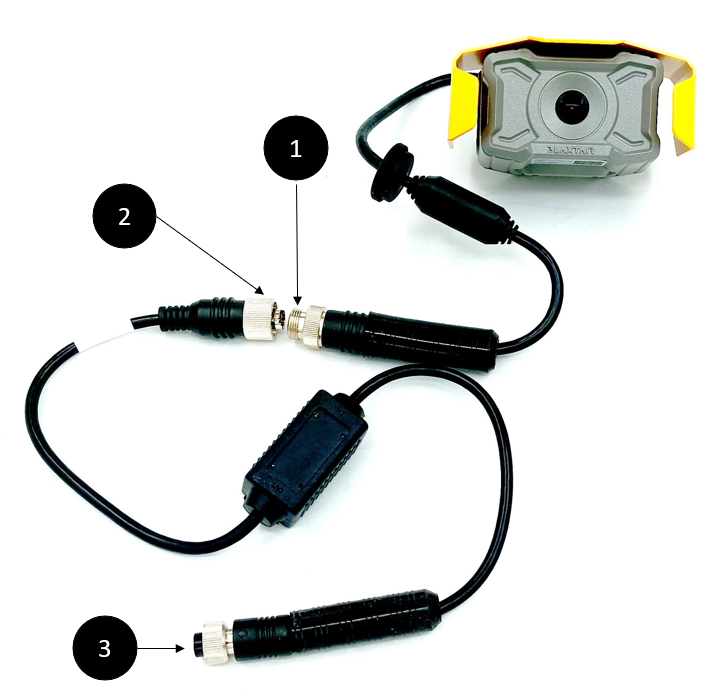

AI Camera connectors

(1) 8P Female camera connector (Data + Power) - Length: 400 mm
(2) 8P Male connector (Data + Power)
(3) 6P GX12 Female connector (ethernet + Power) - Length: 1600 mm

The total length of the AI camera cable is 2 m (78,7 in).

BXT Switch double camera

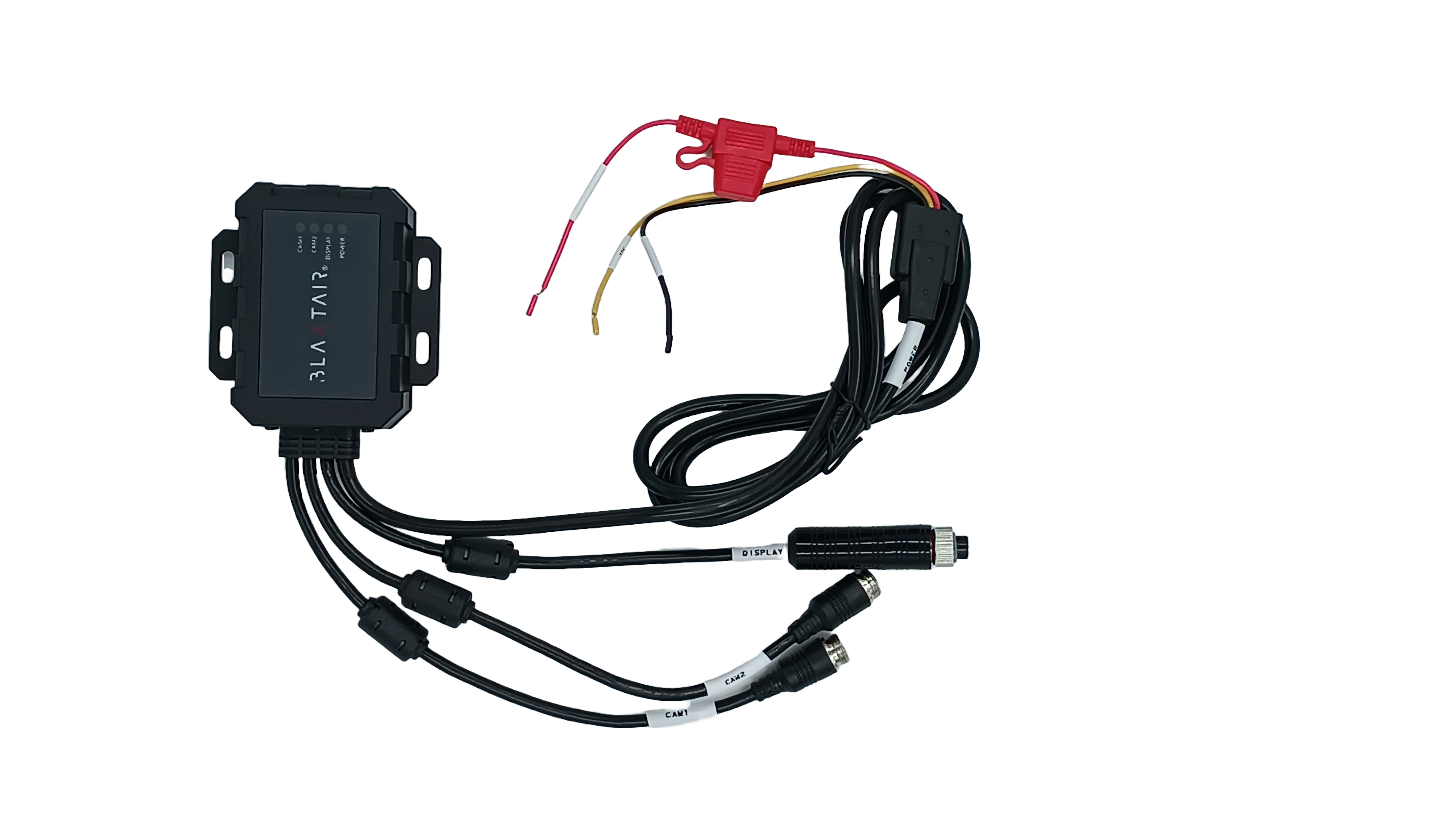

	Red/ yellow wires : Power (both need to be connected) Black wire : ground 8P Female camera connector (Data + Power) RED 6P GX12 female connector (ethernet + Power) = connexion to display BLACK 6P GX12 male connectors (ethernet + Power) = connexion to CAM REAR and CAM FRONT

Ordering information

Blaxtair - MR260 24m - Detection system
105-950-002	HS code	8528.5900
2 x BXT AI camera with 2m cable with a 6 axis mount bracket & U-Bracket, 1 x 4m 6pins ethernet extension cable, 2 x 10m 6pins ethernet extension cable, 1 x BXT Smart Display 8" 1 x Metal Cradle with 2m cable with 6 axis mount bracket (Power : VDC 12-32V, 2 x Inputs, 2 x outputs & Ethernet camera connector) 1 x BXT Switch double camera 1 x Relay kit for fix Sleep mode of 20 minutes (for 12V & 24V machine) 2 x Fuse kit 1 x Installation manual

Blaxtair - MR260 12m - Detection system
105-950-003	HS code	8528.5900
2 x BXT AI camera with 2m cable with a 6 axis mount bracket & U-Bracket, 3 x 4m 6pins ethernet extension cable, 1 x BXT Smart Display 8" 1 x Metal Cradle with 2m cable with 6 axis mount bracket (Power : VDC 12-32V, 2 x Inputs, 2 x outputs & Ethernet camera connector) 1 x BXT Switch double camera 1 x Relay kit for fix Sleep mode of 20 minutes (for 12V & 24V machine) 2 x Fuse kit 1 x Installation manual

All information may change without notice.
