7.3 AI CAMERA - DATASHEET

Please find the PDF version at this link.

Description

AI Camera monoscopic for Blaxtair system:

Industrial-grade camera,
Operational in harsh and tough environments, e.g. strong vibration, high impacts, and wide temperature range.
Waterproof
Compatible with all industrial vehicle types and brands (forklift trucks, wheel loaders, excavators, etc.)
Compact and easy to integrate

Certifications and approvals

Type	Standards
Water/dust protection	ISO 20653 - IP69K/IP67 for AI camera, IP65 for connector
Climatic test	ISO 16750-4 IEC 60068-2-14 IEC 60068-2-1 IEC 60068-2-2
Vibrations & Shocks	ISO 16750-3 IEC 60068-2-64 - Random vibration IEC 60068-2-27 - Shocks
Electromagnetic Compatibility (EMC/ESD)*	Directive 2014/30/UE ISO 10605 ISO 11452-2 ISO 11452- 4 EN 12895 ISO 13766-1 ISO 14892 ICES-003 Issue 05 FCC Title 47 Part 15 ROHS REACH
Electrical loads	ISO 7637-2 (except pulse 5a, 5b) ISO 16750-2
Marks	CE, UKCA, FCC, IC

* Performance Evaluation
The Blaxtair camera undergoes a series of rigorous performance evaluations to ensure optimal functionality in various environments. As part of our commitment to quality and innovation, we continuously refine our testing strategies and adapt to evolving standards. Current procedures are designed to assess the camera's resilience and operational integrity under various conditions, including electromagnetic environments.

Note: Additional evaluations are part of our ongoing product enhancement efforts, ensuring that users benefit from the latest advancements and compliance with industry standards.

General dimensions

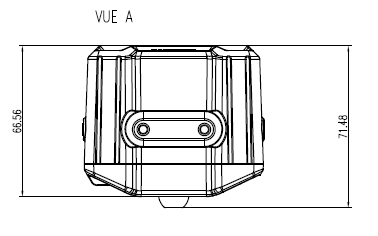

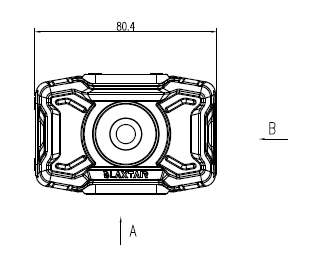

AI Camera without protective hood
Front view	Side view	Bottom view

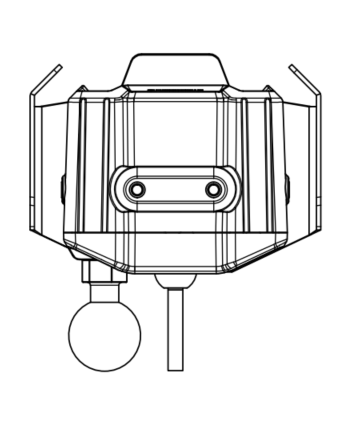

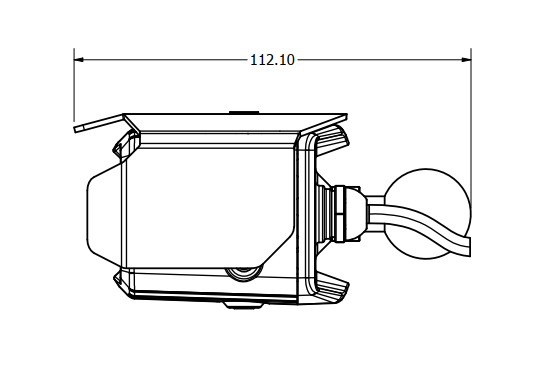

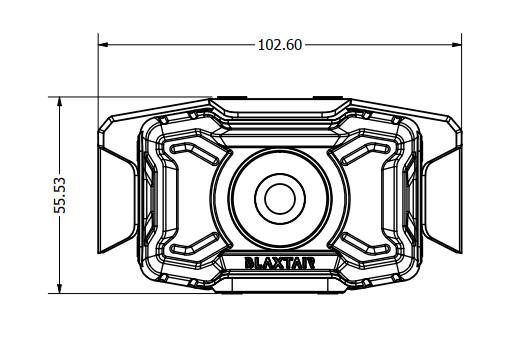

AI Camera with protective hood

Front view

Side view

Bottom view

AI Camera
Dimensions (L x W x D)	80,4 x 53,4 x 71,5 mm (3.2 x 2.1 x 2.8 in)

Technical specifications

Electrical

Power Supply	DC 10V - 32V
Power Consumption	@12V (320mA)

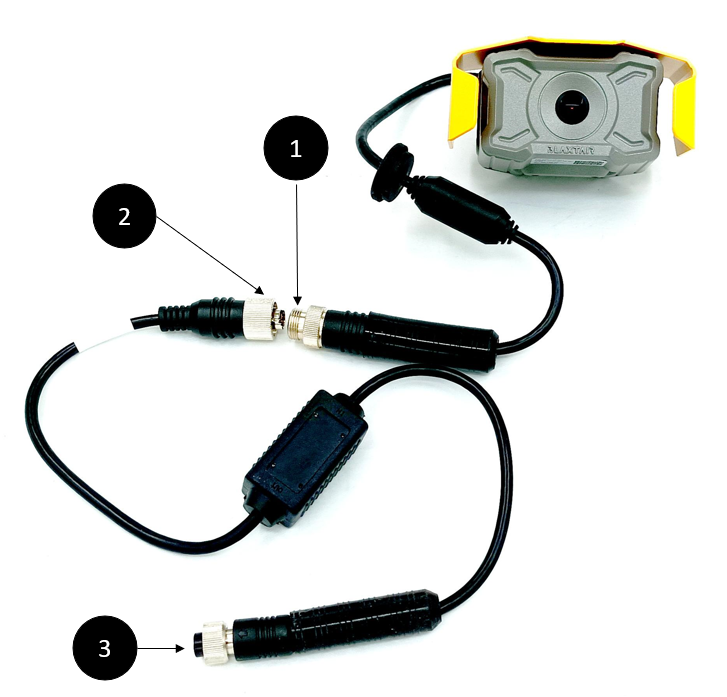

User connection

(1) 8P Female camera connector (Data + Power)
(2) 8P Male connector (Data + Power)
(3) 6P GX12 Female connector (ethernet* + Power)

*Ethernet : 100 Base TX

Video

Dynamic range	81 dB
Frame Rate	25 fps
Shutter type	Electronic rolling shutter
Diagonal Field of view - DFOV	152°
Horizontal Field of view - HFOV	130°
Vertical Field of view - VFOV	70°
Resolution	720p

Mechanical

Weight without housing	425 g
Camera casing	Aluminum alloy ADC12
Color	Yellow Ral 1003 for protective hood Grey Ral 9007 for camera casing
cable length	2 m (78,7 in)

Environmental

Operational Temperature	-20°C to +70°C (-4 °F to 158 °F)
Storage Temperature	-30°C to +80°C (-22 °F to 176 °F)

Ordering information

AI Camera
105-110-001	HS code	8525.8900
Blaxtair AI camera, industrial-grade, operational in harsh and tough environments, IP67, IP69K, IP65 camera connector, 152° DFOV, including mounting kit

Extension cables for AI Camera
205-311-002	Cable extension of 4 m	HS code	8544 42
205-311-003	Cable extension of 5 m	HS code	8544 42
