1.1.4 DATASHEET BLAXTAIR ORIGIN MR120 & MR120A

Please find the PDF version at this link.

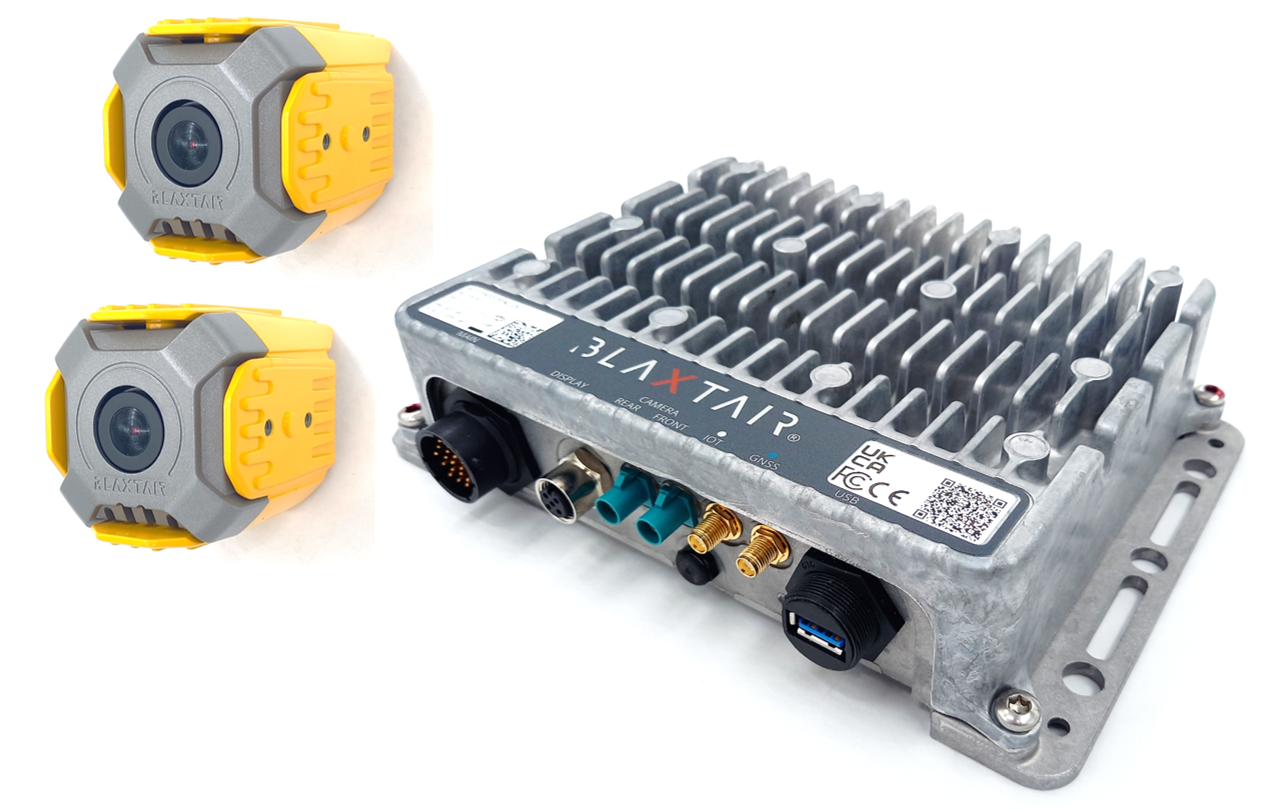

MR120 & MR120A system

Description

Blaxtair Origin saves lives. The most advanced pedestrian detection solution to prevent collisions with machinery, not only alerts drivers to danger without unnecessary alarms but also helps HSE and site managers control and reduce the risk of accidents. Compact, robust, connected, scalable, and easy to install, with unparalleled performance on the market, Blaxtair Origin is the only AI camera capable of accurately detecting and locating pedestrians in real-time, in any posture (standing, crouching, or in partial view) in all the most demanding work environments.
To go beyond the prevention of last-second accidents, the system integrates the Cloud-based IoT solution "Blaxtair Connect" which revolutionizes the safety of people around machines by dividing the coactivity between machines and pedestrians by 3.

Improves safety, working conditions, and productivity
Avoids unnecessary alerts that tire the driver
Control & reduction of accident risks thanks to the integrated Blaxtair Connect
Future-proofed: online maintenance & remote software updates
Scalable: ready for future additional features or cloud services

Certifications and approvals

Standards	Type
Water/dust protection
Camera	ISO 20653 - IP6K9K* * IP67 for the connector
Processing Unit	IEC 60529 - IP67
Climatic test
Processing Unit	ISO 16750-4 IEC 60068-2-14
Vibrations & Shocks
Camera	ISO 16750-3 IEC 60068-2-64 - Random vibration IEC 60068-2-27 - Shocks / Bumps
Processing unit	ISO 16750-3* IEC 60068-2-64 - Random vibration IEC 60068-2-27 - Shocks / Bumps * PU connectors - SAE/USCAR-2 Rev.6 5.4.6.3 V1
Electromagnetic Compatibility (EMC/ESD)
Camera	ISO 10605 ISO 11452-2 ISO 11452-4 EN 12895 ISO 13766-1 ISO 14982-1
Processing unit	Directive 2014/30/UE EN 12895 ISO 13766-1 ISO 14982-1 ICES-003 Issue 05 FCC Title 47 Part 15
Electrical loads
Processing unit	ISO 7637-2 ISO 16750-2
Radio frequency
Processing unit	RED - Radio Equipment Directive 2014/53/EU UKSI 2017 N°2016 FCC
Object detection systems assistance
Earth-moving machinery	ISO 16001
Industrial truck	VDI 4482
Marks
Blaxtair Origin system	CE, FCC, Reach, RoHS

Region	Regulatory compliance/quality marks
Europe	CE
Great Britain	UKCA

IoT Country Approval

Region	Countries
Europe	France, Germany, Austria, Spain, Poland, United Kingdom, Czech Republic, Italy, Belgium, Switzerland, Romania, Denmark, Portugal, Ireland, Ukraine, Slovak Republic, Hungary, Norway, Luxembourg, Sweden, Greece, Netherlands, Finland, Slovenia, Latvia, Estonia, Serbia, Monaco, Lituanie
Middle East & Africa	La Réunion
North America	United States of America, Canada,
Latin America	Mexico, Urugay, Martinique, Guadeloupe
Asia-Pacific	Australia, Indonesia, Nouvelle-Caledonie, Tahiti

Installation/configuration notes

Camera
Front view	Side view

Processing unit
Front view	Top view

Processing unit with cables
Front view	Top view

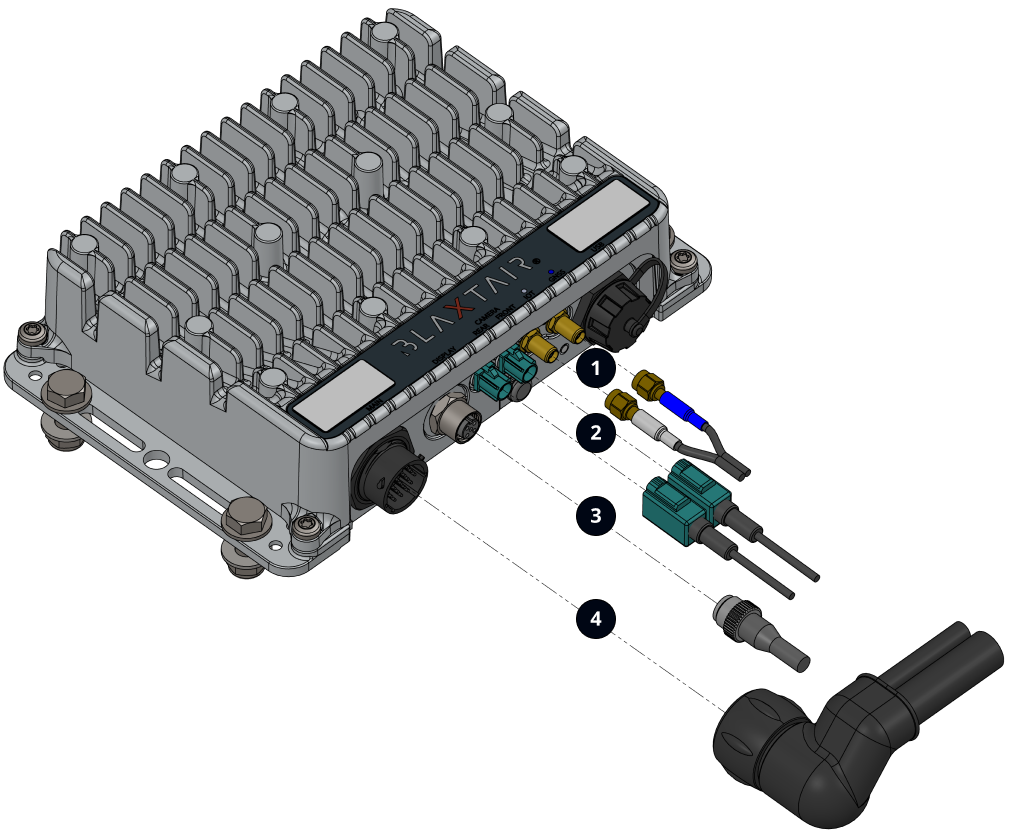

Cables connection order

1	Antenna cable - GNSS (Blue) & IoT (White) connectors
2	Cameras cable - Front & Rear connectors
3	Extension display cable
4	Main cable

Technical specifications

Electrical

Rated Voltage	12-24 VDC For vehicle voltage >24 VDC, we recommend using a power converter.
Input voltage	~10-32 VDC
Power Consumption (typical)	24 W-30W @12V (2A-2.5A) ℹ️ Depends on system usage and configuration
Power Consumption (Maximum)	Processing unit with one camera (MR120) and no output connected
	29W@12V (2.4A) / 29W@24V (1.2A)
	Processing unit with two cameras (MR120A) and no output connected
	33W@12V (2.7A) / 33W@24V (1.4A)
	Processing unit with one camera (MR120), display, and no other output connected
	41W@12V (3.4A) / 41W@24V (1.7A)
	Processing unit with two cameras (MR120A), display, and no other output connected
	45W@12V (3.7A) / 45W@24V (1.9A)
	All functions and interfaces used
	55W@12V (4,6A) / 62W@24V (2,6A)
Current consumption IGN OFF	< 10mA
Surge protection	Use the provided fuse kit
Protection	Protected against reverse polarity

User connection

Camera

1	Camera cable connector	Coax AMPSEAL

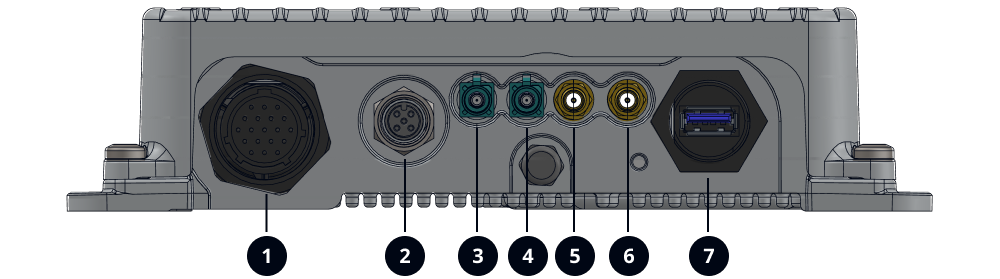

Processing unit

1	Main connector	Souriau 19 Pins Power supply x 1 CAN HS x 1 Digital outputs x 3 - 200mA max. Digital inputs x 2 - 12/24V Power output x 1 - max. 1A - for display
2	Display	Male M12 5 Pin A-coded
3	Rear Camera	Fakra SMBA Code Z Male
4	Front Camera	Fakra SMABA Code Z Male
5	IoT	SMA Female
6	GNNS (GPS)	SMA Female
7	USB	USB-A 3.0 For software update & data backup purposes

Video output

Format	PAL
Resolution	576i

Start/Stop

Starting duration	~ 30 s
Switch off delay (soft Off)	~ 10 s

Performance

Detection Latency	average latency ~ 200ms latency < 250 ms - 95% max latency < 300 ms (according to ISO 16001) ℹ️ According to tests performed in the laboratory (from pedestrian presence in the field of view to discrete output being activated)
Operational Illumination range	>300 Lux (recommended for best performance) From 100 Lux to 80000 Lux
Pedestrian detection - Field of view	Horizontal - 139° Vertical - 74°
Pedestrian position detected	Standing Crouched Occluded/truncated * Lying * * Performance depends on the scene

Local storage

Capacity	128 GB
Video recording mode	The last 5 hours of operation (video sequences of 600 x 30s - ~10 GB) and the last 5 hours of alarms before the last 5 hours of operation (video sequences of 600 x 30s - ~10 GB)
Backup	Stored data can be retrieved by plugging a hard drive into the USB interface Requires a USB hub and a mouse to enter the configurator

IoT

Modem	SIMCom SIM7600G-H R2 LTE Cat-4 mPCIe
Antenna	2J6941MGF
Technology	LTE
Frequency band	B1 (FDD 2100) B2 (FDD 1900) B3 (FDD 1800) B4 (FDD 1700 / AWS) B5 (FDD 850) B7 (FDD 2600) B8 (FDD 900) B12 (FDD 700ac) B13 (FDD 700c) B18 (FDD 800) B19 (FDD 800) B20 (FDD 800DD) B25 (FDD 1900) B26 (FDD 850) B28 (FDD 700) B34 (TDD 2000) B38 (TDD 2600) B39 (TDD 1900) B40 (TDD 2300) B41 (TDD 2500) B66 (FDD 1700 / AWS-3)
Amount of channels	16
Modulation	QPSK/16QAM/64QAM
Maximal output power	0.25W
Antenna gain	-3dBi
EIRP measured at maximal power	18dBm

Operating bands
E-UTRA Operating Band	Uplink (UL) operating band	Downlink (DL) operating band	DuplexMode
1	1920~1980 MHz	2110~2170 MHz	FDD
2	11850~1910 MHz	1930~1990 MHz	FDD
3	1710~1785 MHz	1805~1880 MHz	FDD
4	1710~1755 MHz	2110~2155 MHz	FDD
5	824～849 MHz	869～894 MHz	FDD
7	2500~2570 MHz	2620~2690 MHz	FDD
8	880~915 MHz	925~960 MHz	FDD
12	699~716M Hz	728~746 MHz	FDD
13	777~787 MHz	746~757 MHz	FDD
18	815~830 MHz	860~875 MHz	FDD
19	830~845 MHz	875~890 MHz	FDD
20	832~862 MHz	791~821 MHz	FDD
25	1850~1915 MHz	1930~1995 MHz	FDD
26	814~849 MHz	859~894 MHz	FDD
28	703~748 MHz	758~803 MHz	FDD
66	1710~1780 MHz	2110~2200 MHz	FDD
34	2010~2025 MHz	2010~2025 MHz	TDD
38	2570~2620 MHz	2570~2620 MHz	TDD
39	1880~1920 MHz	1880~1920 MHz	TDD
40	2300~2400 MHz	2300~2400 MHz	TDD
41	2496~2696 MHz	2496~2696 MHz	TDD

ℹ️ Operating frequencies of LTE TDD B41 for SIM7600 is 100 MHz BW, 2555～2655 MHz

Miscellaneous

Supported Languages	English, French, German, Spanish
Diagnostics	Various status conditions are tracked in the internal diagnostic log. Critical fault conditions will also be displayed on the screen

Mechanical

Camera
Dimensions (L x W x D)	55 x 55 x 73 mm (2.2 x 2.2 x 2.9 in)
Weight	182 g
Construction
Camera Housing	Aluminum alloy ADC12
Color	Yellow Ral 1003 Grey Ral 9007

Camera with standard mounting bracket
Dimensions (L x W x D)	94.5 x 67.6 x 73 mm (3.7 x 2.6 x 2.9 in)
Weight	272 g
Construction
Mounting bracket	Stainless steel 304L

Camera cable
Length	5 m or 15 m (196.8 or 590.5 in)
Bend radius	28mm

Processing unit
Dimensions (L x W x H)	217 x 157 x 51 mm (8.5 x 6.2 x 2 in)
Weight	1,5 kg
Construction
Housing material	Aluminum alloy - EN AC-43400 with dehumidifying membrane and waterproof connection area
Housing color	Natural Aluminium

Processing unit - Main cable
Material	Polyurethane
Color	Black mat
Length
Processing unit power supply	1 m
Display power supply	5 m
Inputs	1 m
Outputs + Can	1 m

Environmental

Water/dust protection
Camera	IP6K9K* ℹ️ * IP67 for the connector
Processing Unit	IP67 Sealing level is ensured under the following conditions Product housing shall not be opened during its overall life cycle All screws/connectors/light guide/Gore vent shall remain in factory delivery configuration Sealing caps shall remain on connectors if not connected
Operational Temperature
Camera	-40°C to +85°C (-40 °F to 185 °F)
Processing unit	-20°C to +60°C (-4 °F to 140 °F) Higher temperatures possible in a ventilated area
Storage Temperature
Camera	-40°C to +95°C (-40 °F to 203 °F)
Processing unit	-20°C to +60°C (-4 °F to 140 °F)
Cold Start
Processing unit	-20°C (-4 °F)

Ordering information

Standard kits

Blaxtair Origin system
100-950-001	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - MR120 - Forklifts and small trucks configuration - Front or Rear application - 5 m 1 x color camera with a U-bracket mount, 1 x 5m camera cable, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus, 1 x display with mounting kit, 3m display extension cable
100-950-002	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - MR120A - Forklifts and small trucks configuration - Front and Rear alternate application - 5 m 2 x color camera with a U-bracket mount, 2 x 5m camera cable, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus, 1 x display with mounting kit, 3m display extension cable
100-950-003	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - MR120 - Large forklift, reach stacker, wheel loader configuration - Front or Rear application - 15 m 1 x color camera with a U-bracket mount, 1 x 15m camera cable, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus with 4m extension cable for inputs & outputs, 1 x display with mounting kit, 3m display extension cable
100-950-004	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - MR120A - Large forklift, reach stacker, wheel loader configuration - Front and Rear alternate application - 15 m 2 x color camera with a U-bracket mount, 2 x 15m camera cable, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus with 4m extension cable for inputs & outputs, 1 x display with mounting kit, 3m display extension cable
100-950-005	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - Double MR120 - Excavator configuration - 5m 2 x color camera with a U-bracket mount, 2 x 5m camera cable, 2 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 2 x power supply cable including inputs, output, and Can bus (with 4m extension cable for Inputs & outputs), 1 x display with mounting kit, 2 x 5m display extension cable - Product to be industrialized from March 2023
100-950-006	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - Double MR120 - Material handling machine with cabin elevation configuration - 15m 2 x color camera with a U-bracket mount, 2 x 15m camera cable, 2 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 2 x power supply cable including inputs, output, and Can bus (with 4m extension cable for Inputs & outputs), 1 x display with mounting kit, 10m display extension cable - Product to be industrialized from March 2023
100-950-007	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - MR120A - Large forklift, reach stacker, wheel loader configuration - Front and Rear alternate application 2 x color camera with a U-bracket mount, 1 x 5 m & 1 x 15 m camera cables, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus with 4m extension cable for inputs & outputs, 1 x display with mounting kit, 3m display extension cable
100-950-008	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system - MR120A - Forklifts and small trucks configuration - Front and Rear alternate application - Pro installation kit 2 x color camera with a U-bracket mount, 1 x 5 m & 1 x 15 m camera cables, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus with 4m extension cable for inputs & outputs, 1 x display with mounting kit, 3m display extension cable - Pro installation kit

Create your custom kit

1 - Blaxtair Origin starter pack
100-999-005	HS code	8530.80.00.00
Blaxtair Origin - Starter pack with one (x1) camera - MR120 - Pedestrian detection system 1 x color camera with a U-bracket mount, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus
100-999-006	HS code	8530.80.00.00
Blaxtair Origin - Starter pack with two (x2) cameras - MR120A - Pedestrian detection system 2 x color camera with a U-bracket mount, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module, and fuse kit, 1 x power supply cable including inputs, outputs, and Can bus

2 - Camera cable
200-311-002	HS code	8530.90.00.00
5 m Blaxtair Origin camera cable
200-311-004	HS code	8530.90.00.00
15 m Blaxtair Origin camera cable

3 - Display
200-514-002	HS code	8528.59.10.90
Blaxtair Origin display - Mono-Input for MR120 and MR120A configuration - Waterproof
200-514-003	HS code	8528.59.10.90
Blaxtair Origin display - Multi-Input (x4) - Split screen feature- Waterproof

4 - Display extension cable
200-312-001	HS code	8530.90.00.00
3 m Blaxtair Origin Display extension cable
200-312-002	HS code	8530.90.00.00
5 m Blaxtair Origin Display extension cable
200-312-003	HS code	8530.90.00.00
10 m Blaxtair Origin Display extension cable
200-312-004	HS code	8530.90.00.00
15 m Blaxtair Origin Display extension cable

5 - Option
200-714-001	HS code	8530.90.00.00
Blaxtair Origin IOT/GNNS (GPS) antenna
100-212-001	HS code	8530.90.00.00
Blaxtair Origin Flash Beacon with 5 m cable (Deutsch connector) and connector kit for processing unit main cable
100-652-001	HS code
Pro installation kit - 1x Medium arm - 1x Angled bolt head - 1x Handle bar clamp base - 1x adapter for camera - 1x Mounting hardware
100-652-002	HS code
Premium installation kit - 1x Double arm - 1x double ball adapter - 1x Medium arm - 1x Angled bolt head - 1x Handle bar clamp base - 1x adapter for camera - 1x Mounting hardware
