Processing unit
Description

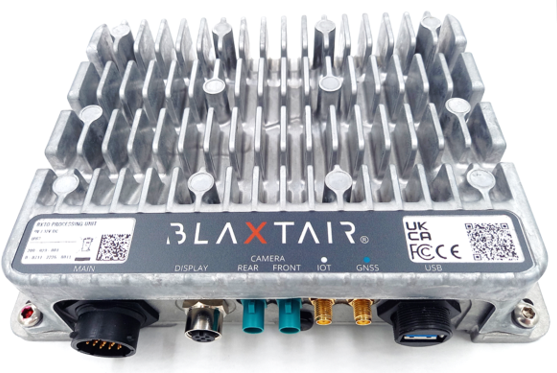

Processing unit for Blaxtair Origin system
-
Industrial-grade, operational in harsh and tough environments, e.g., strong vibration, high impacts, wide temperature range.
-
Waterproof and dustproof
-
Compatible with all types and brands of industrial vehicles (forklift trucks, wheel loaders, excavators, etc.)
-
Compact and easy to integrate
|
|
|
|
|---|
Certifications and approvals
|
Standards |
Type |
|
Water/dust protection |
IEC 60529 - IP67 |
|
Climatic tests |
ISO 16750-4
|
|
Vibrations & Shocks |
ISO 16750-3*
* PU connectors - SAE/USCAR-2 Rev.6 5.4.6.3 V1 |
|
Electromagnetic Compatibility (EMC) |
Directive 2014/30/UE
|
|
Electrical loads |
ISO 7637-2
|
|
Radio frequency |
RED - Radio Equipment Directive 2014/53/EU
|
|
Marks |
CE, FCC, Reach, RoHS |
|
Region |
Regulatory compliance/quality marks |
|
Europe |
CE |
|
Great Britain |
UKCA |
Installation / configuration notes
|
Processing unit |
|
|---|---|
|
Front view |

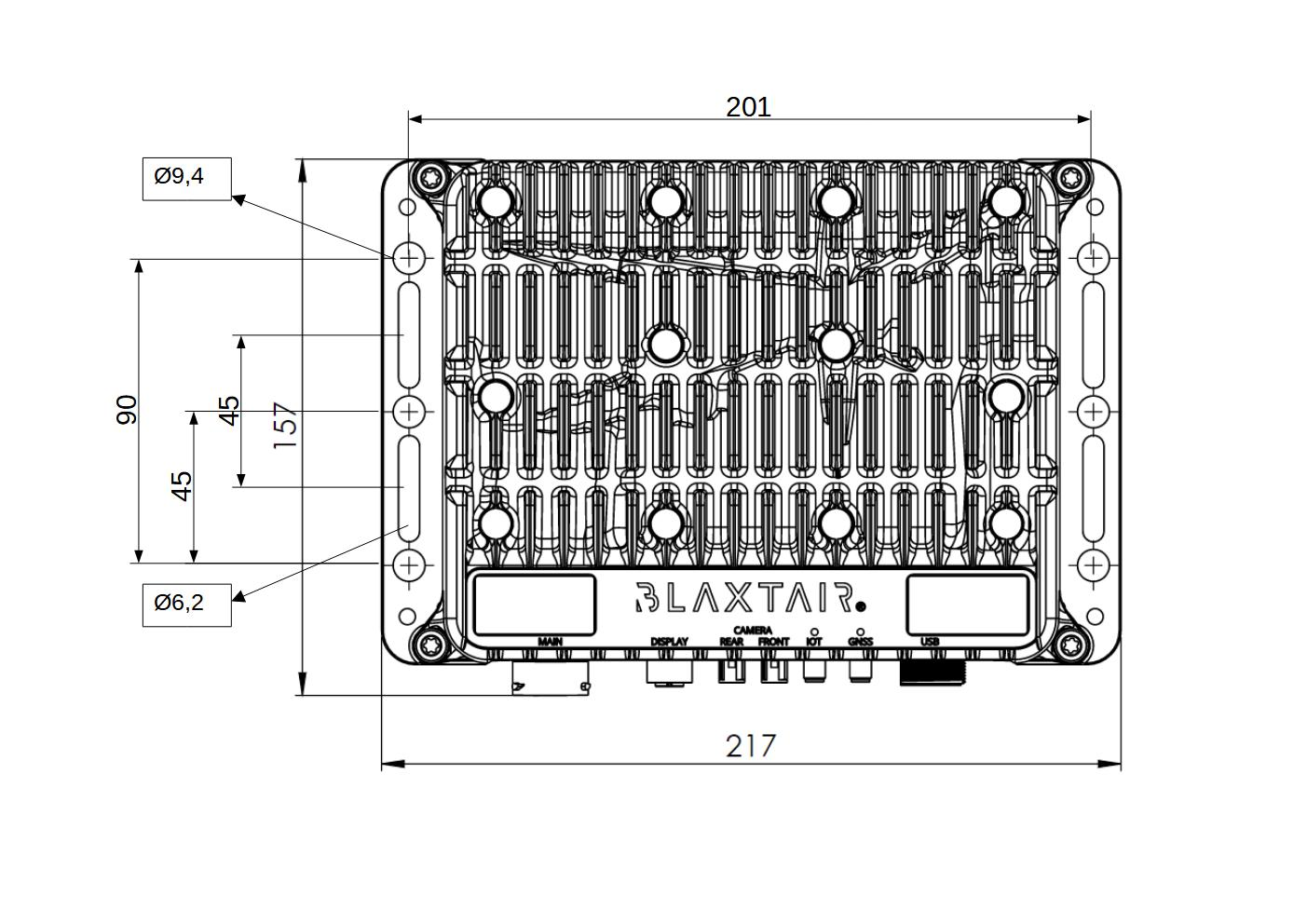

Top view |
|
|
|
Left side view |
|
|
|
|
Processing unit with cables |
|
|---|---|
|
Front view |
Top view |
|
|
|

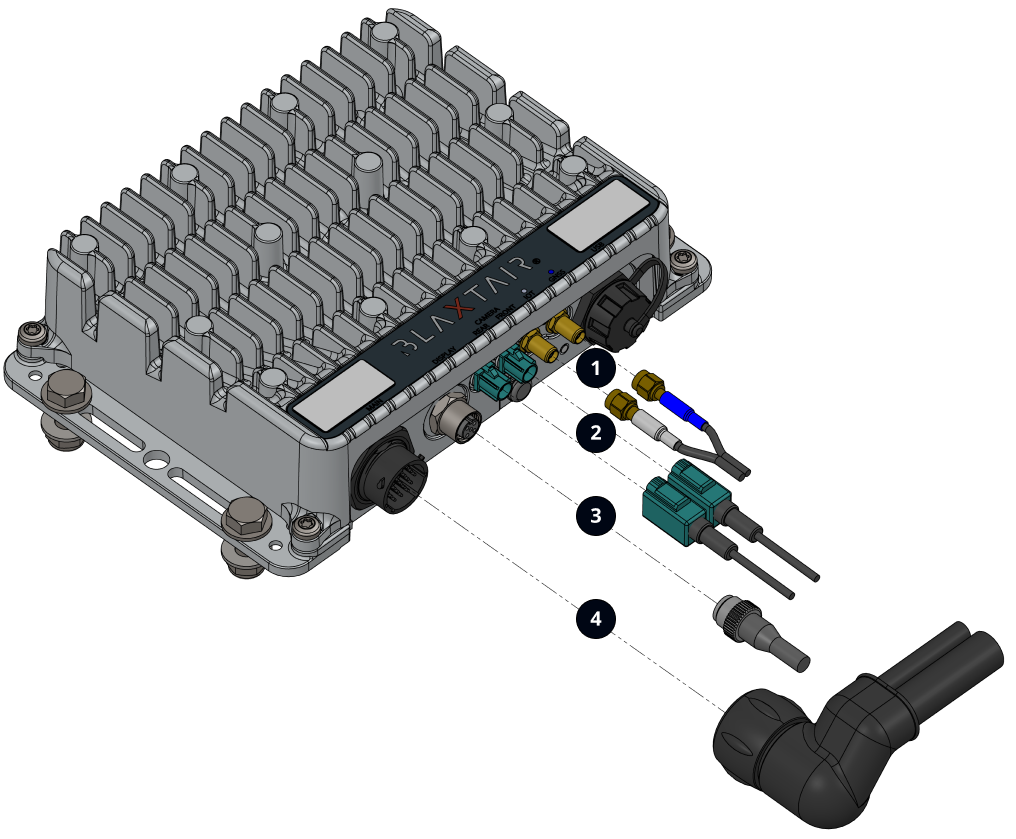

Cables connection order |
|
|
|
|
1 |
Antenna cable - GNSS (Blue) & IoT (White) connectors |
|
2 |
Cameras cable - Front & Rear connectors |
|
3 |
Extension display cable |
|
4 |
Main cable |
|
Installation |
|
|
|
|
1 |
Screws TH M8x25 A4 (x4) |
|
2 |
Flat Washers M8 A4 (x8) |
|
3 |
Locknuts M8 A4 (x4) |
Technical specifications
Electrical
|
Rated Voltage |
12-24 VDC |
|
Input voltage |
~10-32 VDC |
|
Power Consumption (typical) |
24 W-30W @12V (2A-2.5A) Depends on system usage and configuration |
|
Power Consumption (Maximum) |
55W@12V (4,6A) / 62W@24V (2,6A) All functions and interfaces used |
|
Current consumption IGN OFF |
< 10mA |
|
Overcurrent protection |
Use the provided fuse kit |
|
Protection |
Protected against reverse polarity |

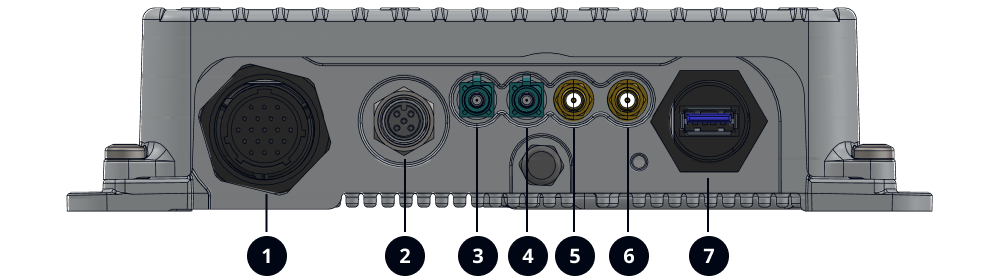

User connection
|
||
|
1 |
Main connector |
Souriau 19 Pins
|
|
2 |
Display |
Male M12 5 Pin A-coded |
|
3 |
Rear Camera |
Fakra SMBA Code Z Male |
|
4 |
Front Camera |
Fakra SMABA Code Z Male |
|
5 |
IoT |
SMA Female |
|
6 |
GNNS (GPS) |
SMA Female |
|
7 |
USB |
USB-A 3.0 Software update & data backup |
Video output
|
Format |
PAL |
|
Resolution |
576i |
Start/Stop
|
Starting duration |
~ 30 s |
|
Switch off delay (soft Off) |
~ 10 s |
Local storage
|
Capacity |
128 GB |
|
Video recording mode |
The last 5 hours of operation (video sequences of 600 x 30s - ~10 GB) and the last 5 hours of alarms before the last 5 hours of operation (video sequences of 600 x 30s - ~10 GB) |
|
Backup |
Stored data can be retrieved by plugging a hard drive into the USB interface Requires a USB hub and a mouse to enter the configurator |
Miscellaneous
|
Supported Languages |
English, French, German, Spanish |
|
Diagnostics |
Various status conditions are tracked in the internal diagnostic log. Critical fault conditions will also be displayed on the screen |
Mechanical
|
Processing unit |
|
|---|---|
|
Dimensions (L x W x H) |
217 x 157 x 51 mm (8.5 x 6.2 x 2 in) |
|
Weight |
1,5 kg |
|
Construction |
|
|
Housing material
|
Aluminum alloy - EN AC-43400 with dehumidifying membrane and waterproof connection area |
|
Housing color |
Natural Aluminium |
|
Processing unit - Main cable |
|
|---|---|
|
Material |
Polyurethane |
|
Color |
Black mat |
|
Lengths |
|
|
Processing unit power supply |
1 m |
|
Display power supply |
5 m |
|
Inputs |
1 m |
|
Outputs + Can |
1 m |
Environmental
|
Water/dust protection |
IP67 Sealing level is ensured under the following conditions
|
|
Operational Temperature |
-20°C to +60°C (-4 °F to 140 °F)
Higher temperatures possible in a ventilated area |
|
Storage Temperature |
-20°C to +60°C (-4 °F to 140 °F) |
|
Cold Start |
-20°C (-4 °F) |
Ordering information
|
Processing unit |
||
|---|---|---|
|
100-023-001 |
HS code |
|
|
Blaxtair Origin processing unit, including 128 GB SSD, IoT/GPS module, and mounting screws |
||
|
Processing unit cable |
||
|---|---|---|
|
200-310-001 |
HS code |
|
|
Main cable including 2 x inputs, 3 x outputs, 1 x Can bus, 1 x display power supply with 2-PIN Deutsch connector, and 1 x processing unit power supply with 3-PIN Deutsch connector |
||
|
100-313-001 |
HS code |
|
|
Inputs-outputs extension main cable kit, including 4 m inputs' cable (4-way), 4 m outputs' cable (6-way), and 10 x red butt joint with heat-shrink |
||
