1.1.1 System presentation
On this page, you will find a detailed technical view of our system.
Blaxtair Origin is a Pedestrian Proximity Detection system for industrial vehicles.
Combined with safety practices, it will help you to improve safety in the vicinity of dangerous industrial, earthmoving, or mining machines by providing relevant and reliable information to the driver.
To get the best from this high-tech equipment implementing a breakthrough technology, and before starting to use Blaxtair Origin, it is strongly recommended to read this manual. It indicates the warnings, scope of use, troubleshooting, and standard maintenance procedures of Blaxtair Origin, to maintain the equipment at its best performance.
Blaxtair Origin features
Improves safety, working conditions, and productivity
Detects and localizes pedestrians in real-time
Detects any posture (i.e., standing, crouching, or in partial view) to prevent collisions with vehicles, whether driving forward or reverse.
It avoids unnecessary alerts that tire the driver.
Control & reduction of accident risks thanks to the integrated Blaxtair Connect
Future-proofed: online maintenance & remote software updates
Scalable: ready for future additional features or cloud services
System components
Main components | |
1 | A processing unit that recognizes and localizes people in danger in real time using Artificial Intelligence algorithms. |
2 | One or two monoscopic cameras that capture images within its field of view |
3 | An antenna for analyzing your data with Blaxtair Connect, online maintenance & remote software updates |
The warning device alerts the driver with a visual and audible alarm if a person is detected in the defined danger zone, at the rear and/or the front of the vehicle.

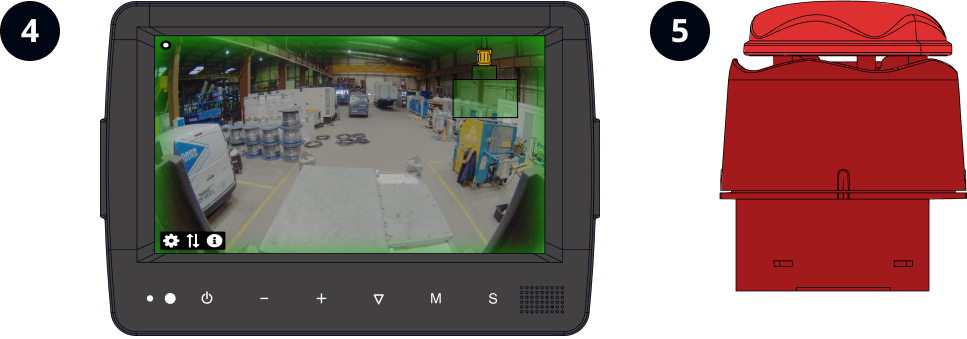

Warning devices | |
4 | LCD Display |
5 | Flash Beacon |
Warning notices
A warning assistant system
Blaxtair Origin is designed to provide the Operator with additional information which could help them when driving. It is not an alarm system, and it does not reduce the responsibility of the Operator or their manager in case of a collision. Blaxtair Origin is designed to supplement the current safety practices already implemented. It must be integrated into a comprehensive safety policy, considering the risk factors specific to the company's activities.
Vehicle control and safety of operations remain the responsibility of the Operator and the authorities in charge.
Adapt vehicle speed to the environment
Most collisions between industrial vehicles and pedestrians occur when setting off or after a sudden change of direction. Blaxtair Origin is optimized to provide pertinent information to the driver during these critical phases.
When the vehicle is operational, the driver must adapt the speed to the environment and remains observant.
Blaxtair Origin is not designed to detect pedestrians when the vehicle is traveling at high speed.
Operators' training
Each year, worksite accidents result in the loss of life, significant personal injuries, and damage to products and facilities. Most are the result of driver error.
Standard operator training should be carried out before operators use any equipment installed with Blaxtair Origin systems and followed by periodic training to ensure awareness of usage and limits.
The optimal performance of Blaxtair Origin systems is subject to compliance with recommendations for use and maintenance as described in this manual.
Vehicle control interface
Arcure recommends asking the vehicle manufacturer before connecting Blaxtair Origin to the vehicle control system (e.g., brake system).
