6.3 Installation

Important installation notice

The AI camera installation is a critical step of the installation as the vehicle detection and localisation will be directly impacted by the installation parameters:

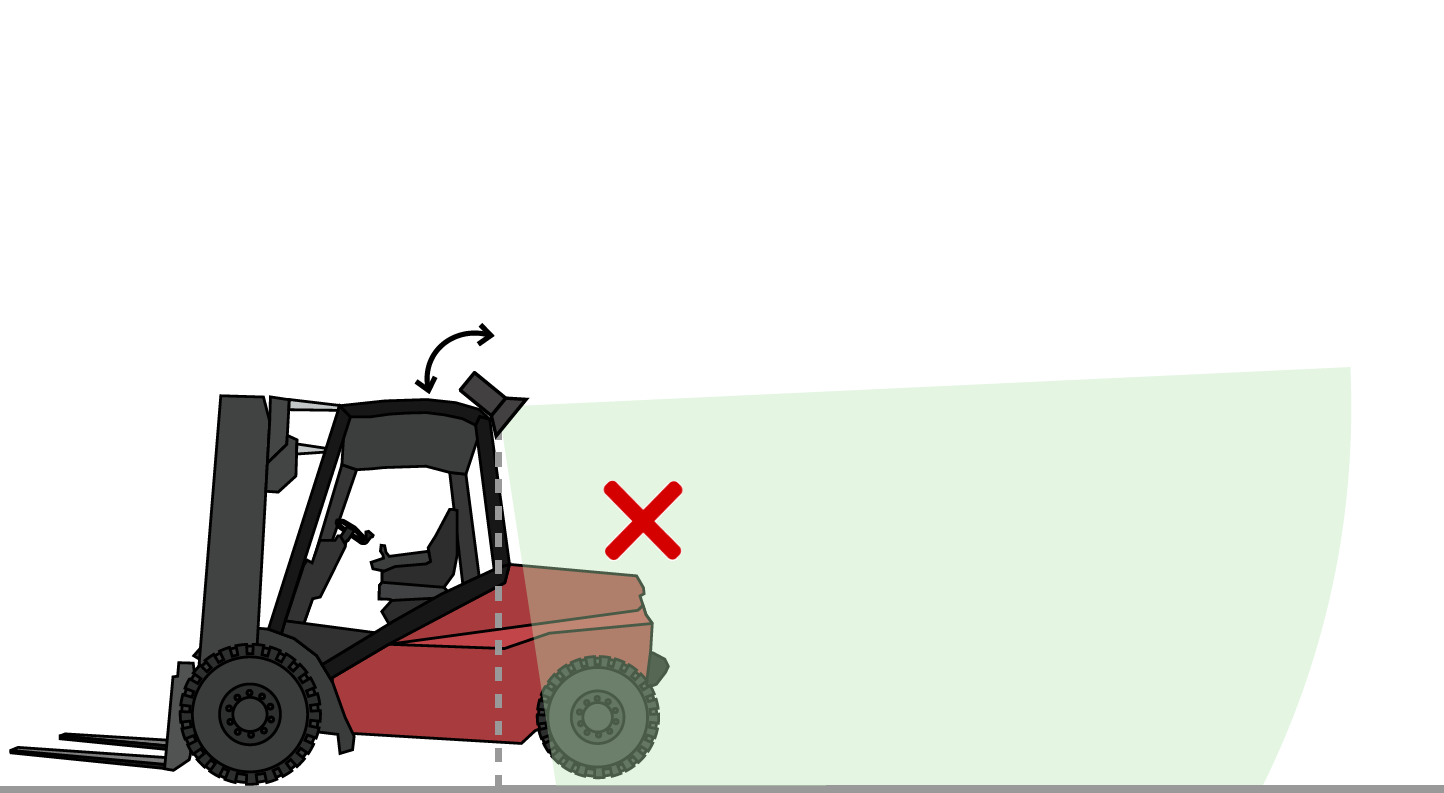

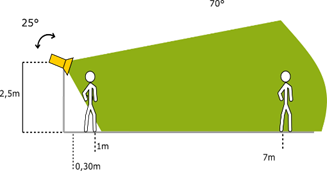

If the camera pitch angle is higher than the configured angle → the system will not raise alarm for vehicle at the end of the detection zone (risk of no detection)

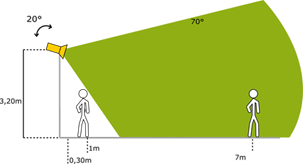

If the camera pitch angle is lower than the configured angle → the system will raise alarm for vehicle further than the end of the detection zone (risk of false alarm)

The camera installation is a decisive step.

The camera must:

Be clean (no dust or fingerprint on the camera lens),
Be strongly fixed to the vehicle structure,
Have a clear field of view: vehicle moving and static parts (as forks, chains, mast, cables) can obstruct the field of view,

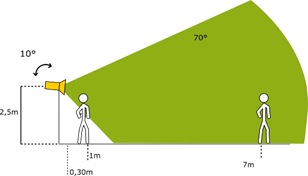

Take into account the 130° horizontal, 70° vertical field of view,
Take into account the height when defining the pitch angle (except if there is an obstacle blocking camera view),
Have no roll angle.

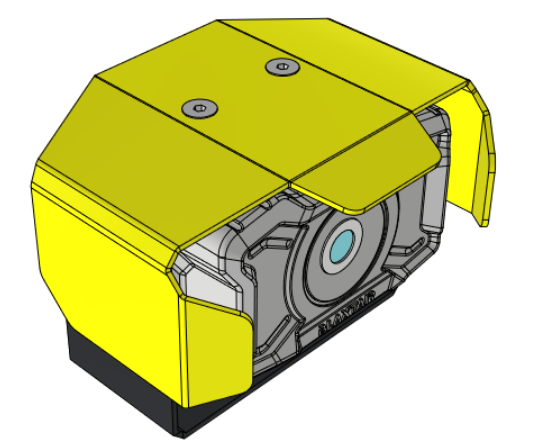

Mounting Kit

To install your camera you can use the:

standard mounting kit provided with your camera,
optional "pro installation kit".

Standard mounting kit

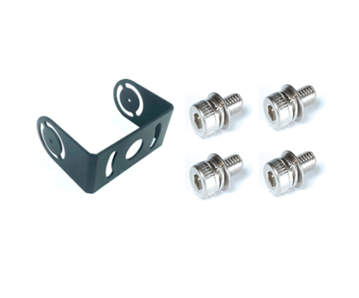

Mounting kit:

Short U-bracket
Mounting kit U-bracket
2x M6 screw
2x M6 brake nut
2x M6 flat washer
Mounting camera
4x M4 screw

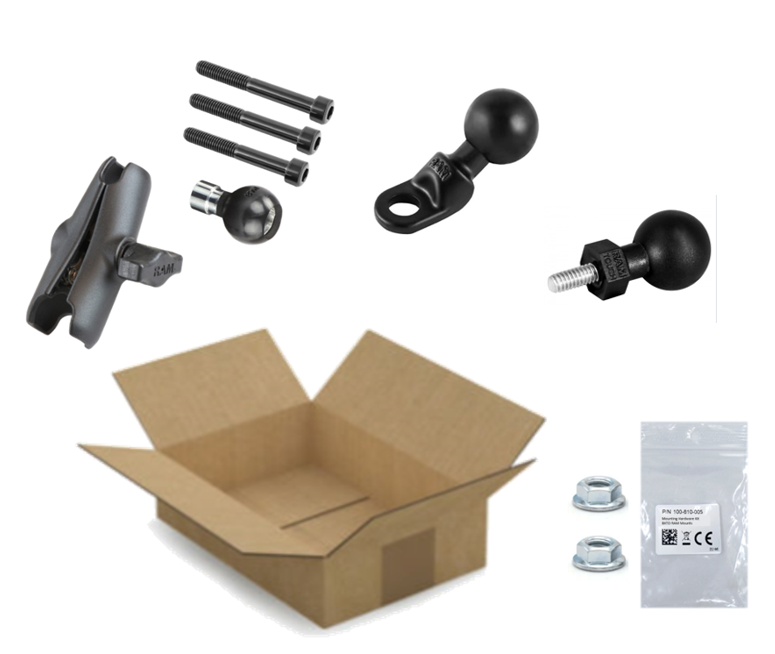

Optional "pro installation kit"

Mounting kit:

6 axis arm
M6-10 screwed ball for camera
Interfaces vehicle (X2)
Replacing nuts 1/4 inch
M8 screw, washer and nut

Installation Steps

What position on the vehicle?

The camera must be fixed on a non-moving part of the vehicle. Ideally the camera is centered on the vehicle but most important, the field of view needs to be clear.

In case of an obstacle in the field of view (mast, counterweight on a forklift) the camera must be positioned elsewhere .

How high on the vehicle?

Camera

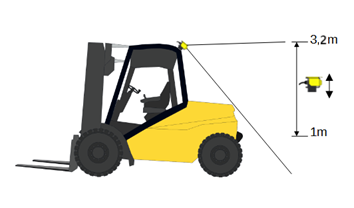

Height installation

ℹ️ For optimal detection performance, install the camera at an height between 1m and 3.2 m

What happens higher than 3.2 meters?

Installation higher than 3.2 meters are possible as the system works properly but the system performance is not fully caracterized. As a result the installation can not be characterized in a general way but in a specific way.

You can contact Blaxtair Team to ensure that the installation provide nominal performances

📧hotline@blaxtair.com

What camera angle?

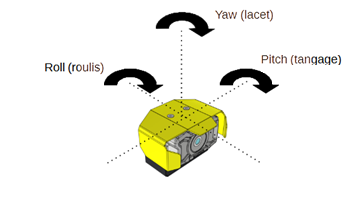

At this point, you will need to adjust camera's orientation.

What Roll angle?

Roll angle must remain 0°.

What Yaw angle?

Most of the time the yaw angle must remain to 0° but if the position is too off-centre, the yaw angle can allow the camera field of view to focus on the area to be monitored.

What Pitch angle?

Pitch angle depend on the height and the field of view.

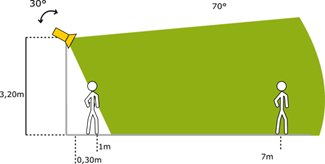

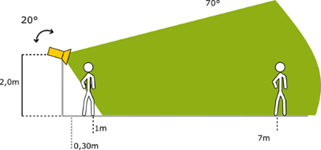

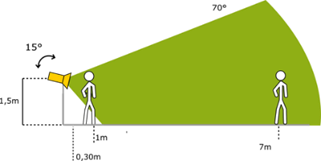

If the field of view is clear, the angle of the camera maximizing the performances for pedestrian detection is presented below.

Height (m)	Range angle (°)	Low angle	High angle	Vehicle detection performance
1m (3,2ft)	[5° +5°] be carfull not to install the camera with 0° angle			Zone: Min : 30cm Max caracterized: 20m Max: > 20m (special analysis 📧hotline@blaxtair.com)
1.50m (4,9ft)	[10° +/-5° ]			Zone: Min : 30cm Max caracterized: 20m Max: > 20m (special analysis 📧hotline@blaxtair.com)
2m (6,5ft)	[15° +/-5° ]			Zone: Min : 0,5m Max caracterized: 20m Max: > 20m (special analysis 📧hotline@blaxtair.com)
2.5m (8,2ft)	[17.5° +/- 7.5°]			Zone: Min : 1m Max caracterized: 20m Max: > 20m (special analysis 📧hotline@blaxtair.com)
3.2m (10,5ft)	[25° +/-5° ]			Zone: Min : 1,5m Max caracterized: 20m Max: > 20m (special analysis 📧hotline@blaxtair.com)

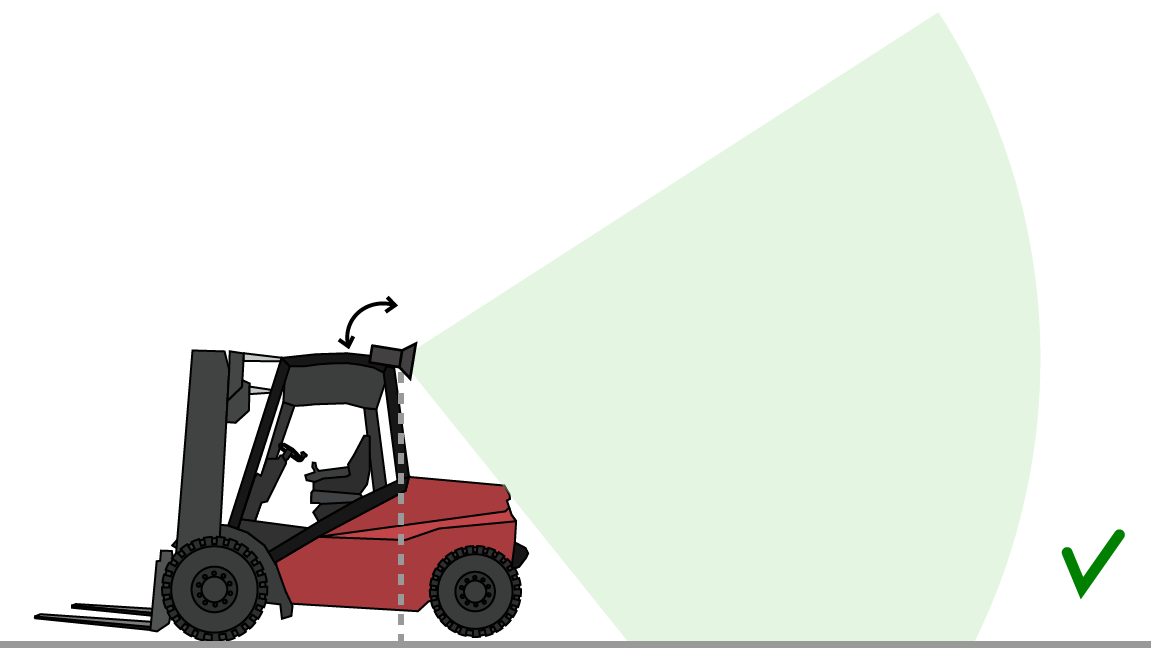

If following the above angle recommendation, an obstacle is in the field of view of the camera, the camera angle needs to be as close as possible to the range on the table but avoiding the obstacle:

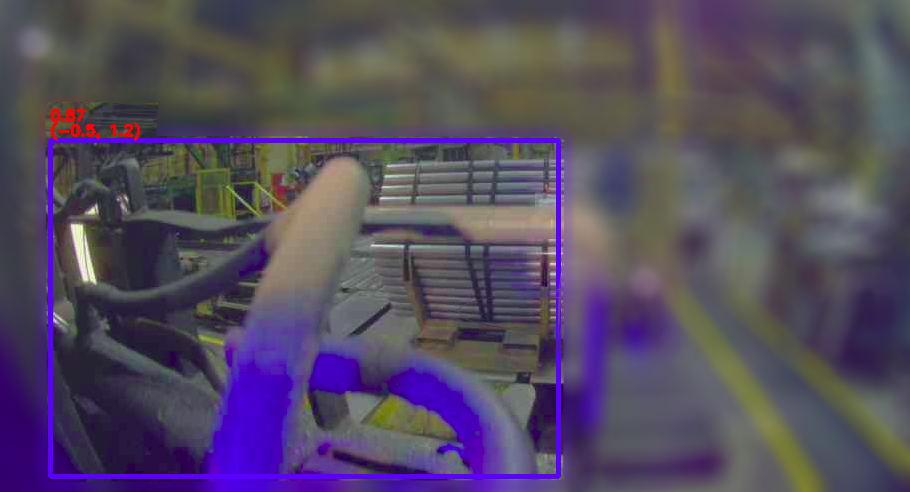

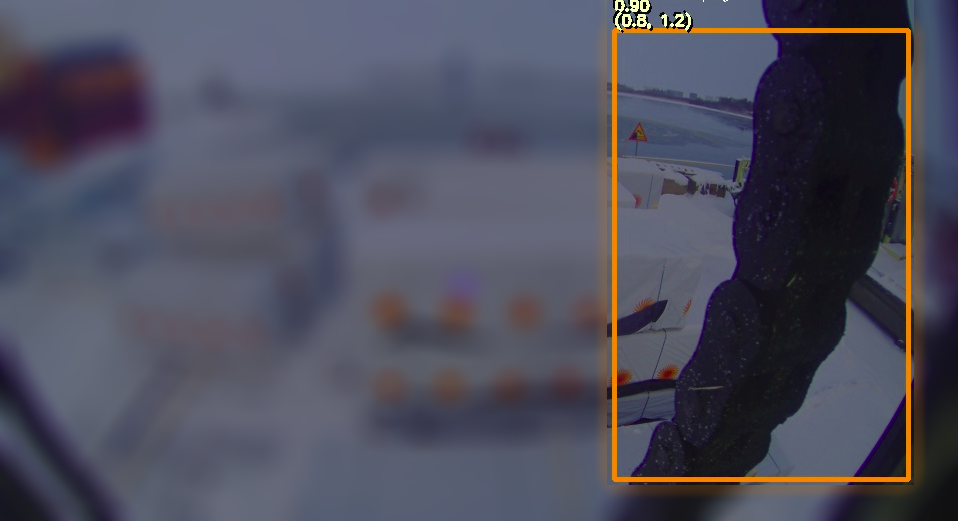

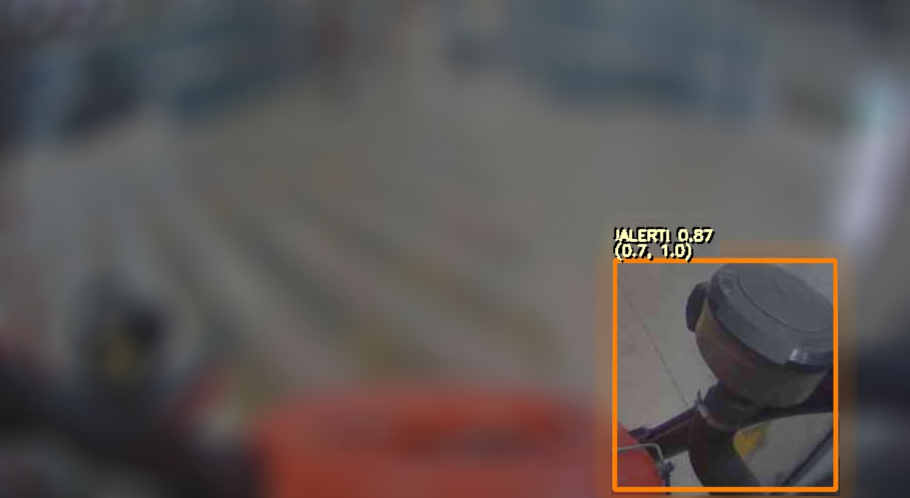

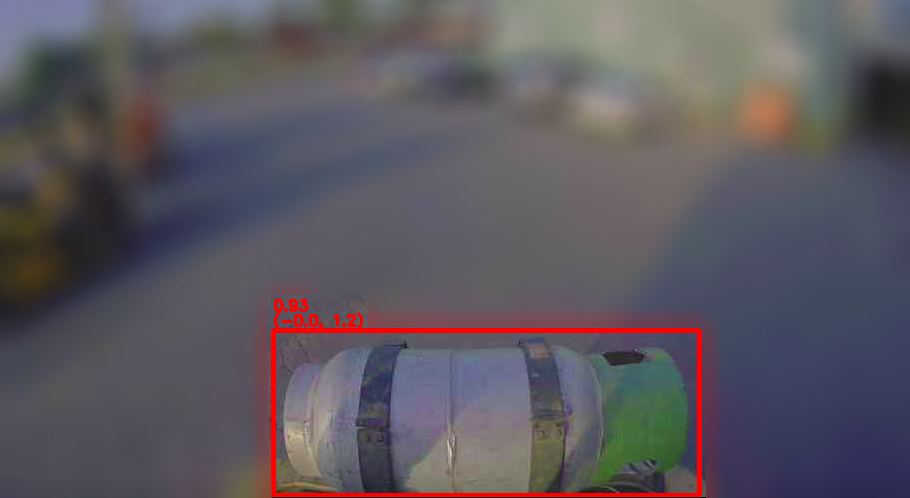

Obstacles on the camera field of view should be avoided as much as possible especially the parts of the vehicle where the blaxtair is installed:

Mast
Fuel tank
Cables and hoses
Muffler

What happens if the customer wants to detect beyong 20m (60,6ft)?

Performances are not guaranteed

Detections beyong 20m are possible but the system performance are not fully caracterized. The installation require a check by the Blaxtair Team to ensure nominal performance.

Configure the zones

The configuration needs to be done accordingly to the installation. A proper article relating to zone configuration: 6.4 Configuration
