Waterproof Display
Description
Waterproof display for Blaxtair 3
-
High Brightness 1000 nits
-
High Contrast 500:1
-
4:3 Aspect Ratio
-
Dust & Waterproof IP67
-
LED Backlight With Low Power Consumption
-
Auto Dimmer Function
-
Auto Power On/Off Function
-
VESA Mountable 75 x 75mm
-
RoHS Compliant
Certifications and approvals
|
Standards |
Type |
|
Water/dust protection |
IP67 |
|
Marks |
CE, FCC, E13, RoHS |
|
Region |
Regulatory compliance/quality marks |
|
Europe |
CE |
Installation/configuration notes
|

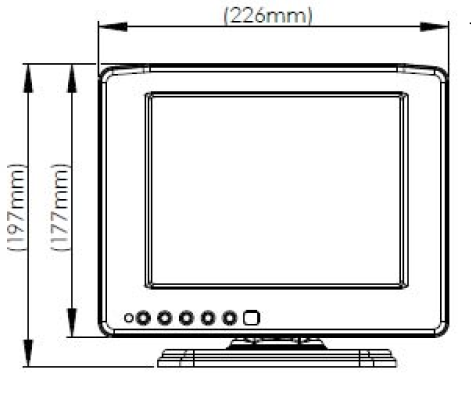

Front view |
Back view |
|
|
|
Side view |
|
|
|
|
Technical specifications
Electrical
|
Rated voltage |
12-24 Vdc |
|
Input voltage |
9 - 36 Vdc |
Display
|
Size |
8" |
|
Type |
TFT |
|
Backlight unit |
LED |
|
Resolution |
800 x 600 |
|
Image format |
RGB |
|
Brightness |
1000 nits |
|
Contrast |
500:1 |
|
Viewing angle |
T: 50° / B: 70°, R/L: 70° |
|
LED life |
30 000 h min. |
Audio
|
Speaker |
x1 |
|
Power |
1 W |
Mechanical
|
Display |
|
|---|---|
|
Dimensions (Wx H x D) |
226 x 117 x 15.6 mm (8.9 x 4.6 x 0.6 in) |
Environmental
|
Operational Temperature |
-20°C to +70°C (-4 °F to 158 °F) |
|
Storage Temperature |
-30°C to +80°C (-22 °F to 176 °F) |
Ordering information
|
Display |
||
|---|---|---|
|
BXT-DISP-E-S0 |
HS code |
|
|

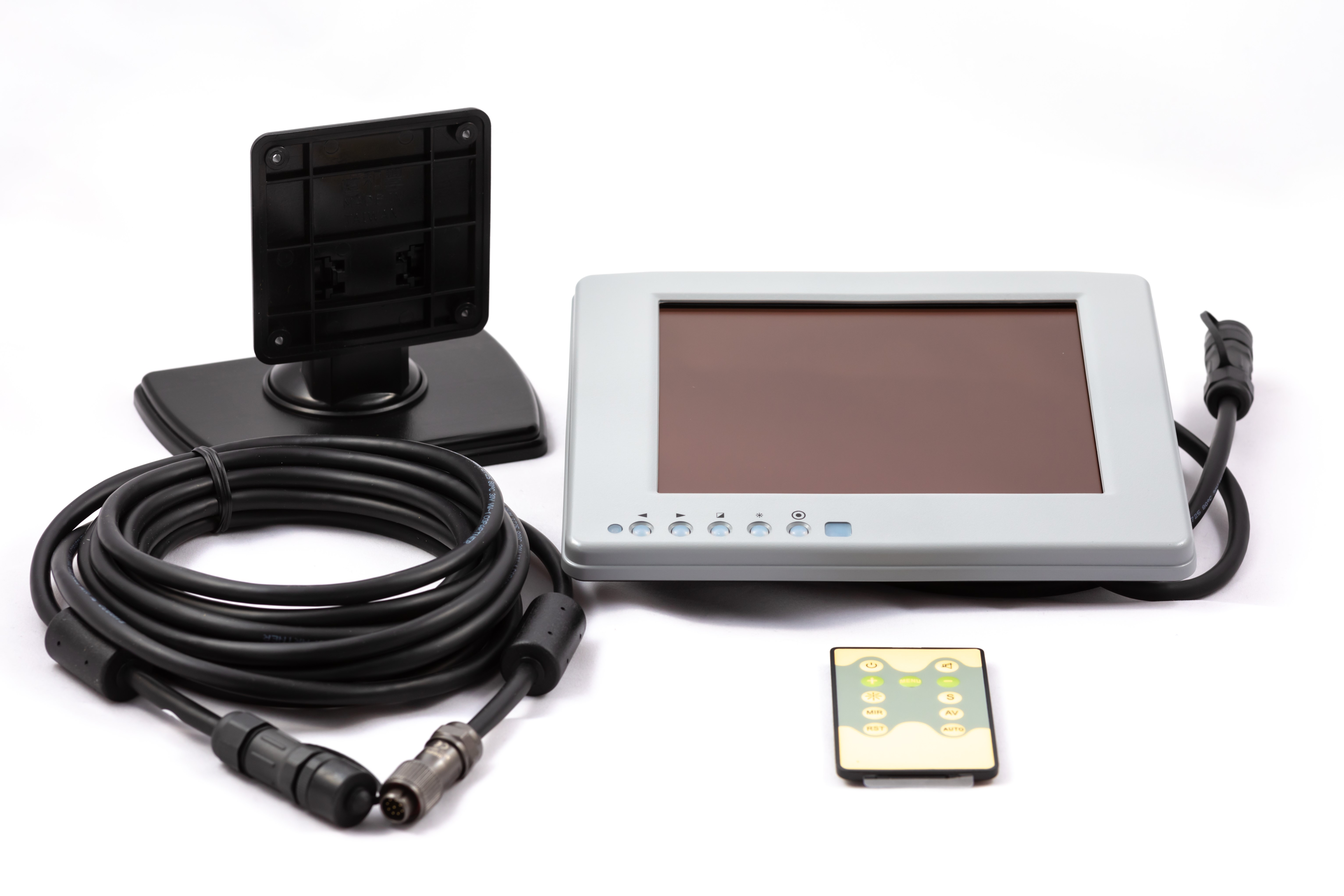

Blaxtair 3 waterproof display with metal stand, remote controller, and All-in-One cable |
||
