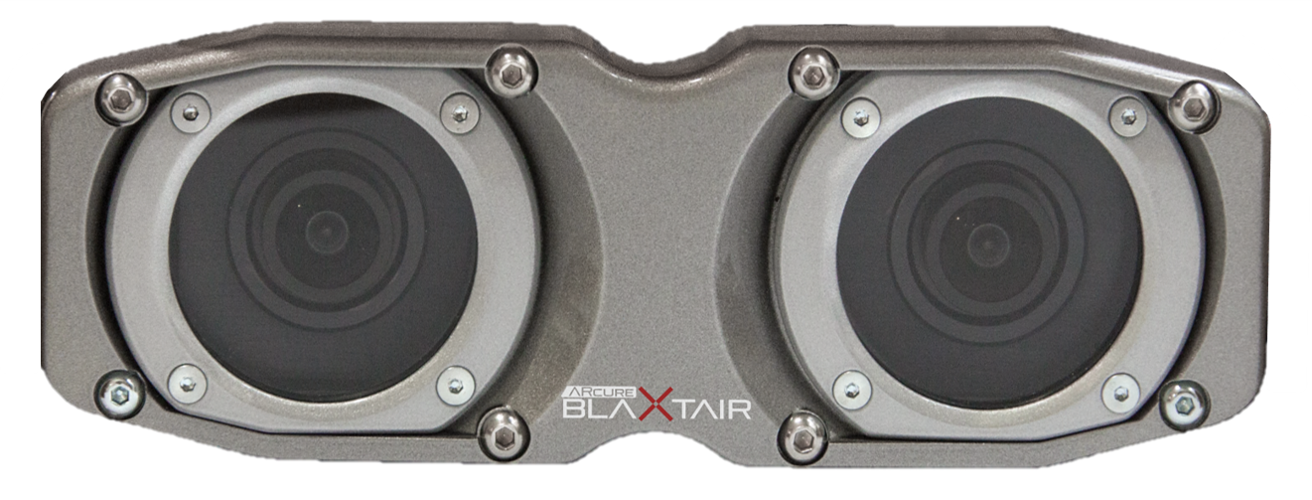

Sensor head
Description
Sensor head for Blaxtair 3 - Pedestrian proximity detection system
Certifications and approvals
|
Standards |
Type |
|
Water/dust protection |
IP69K |
|
Vibrations |
According to IEC 60068-2-64
|
|
Shocks |
ISO 16750
|
|
Region |
Regulatory compliance/quality marks |
|
Europe |
CE |
Installation / configuration notes
|
Sensor head |
||
|---|---|---|
|

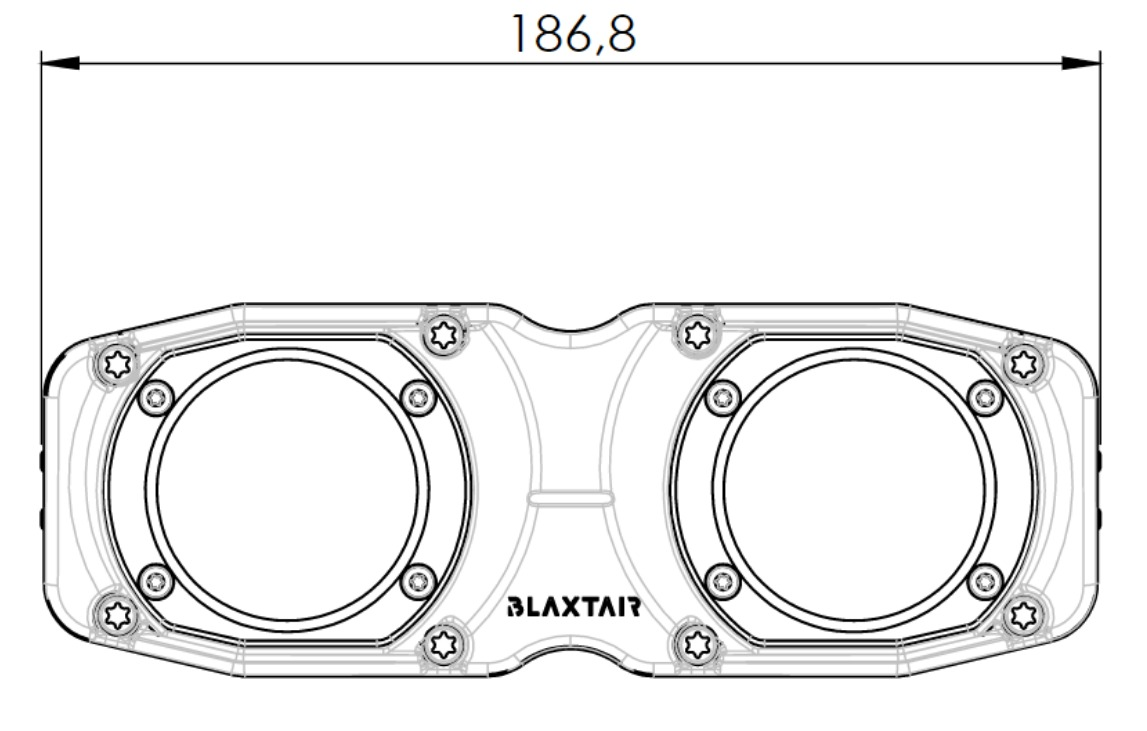

Front view |

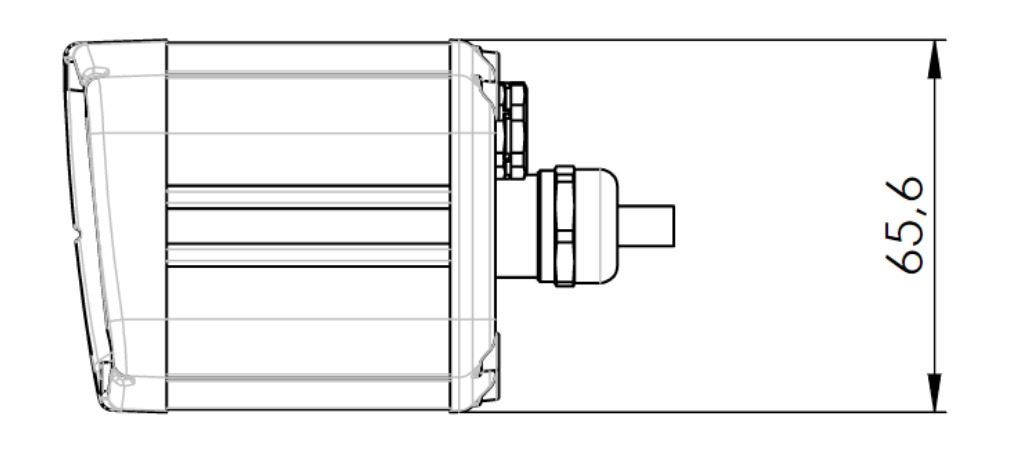

Left side view |

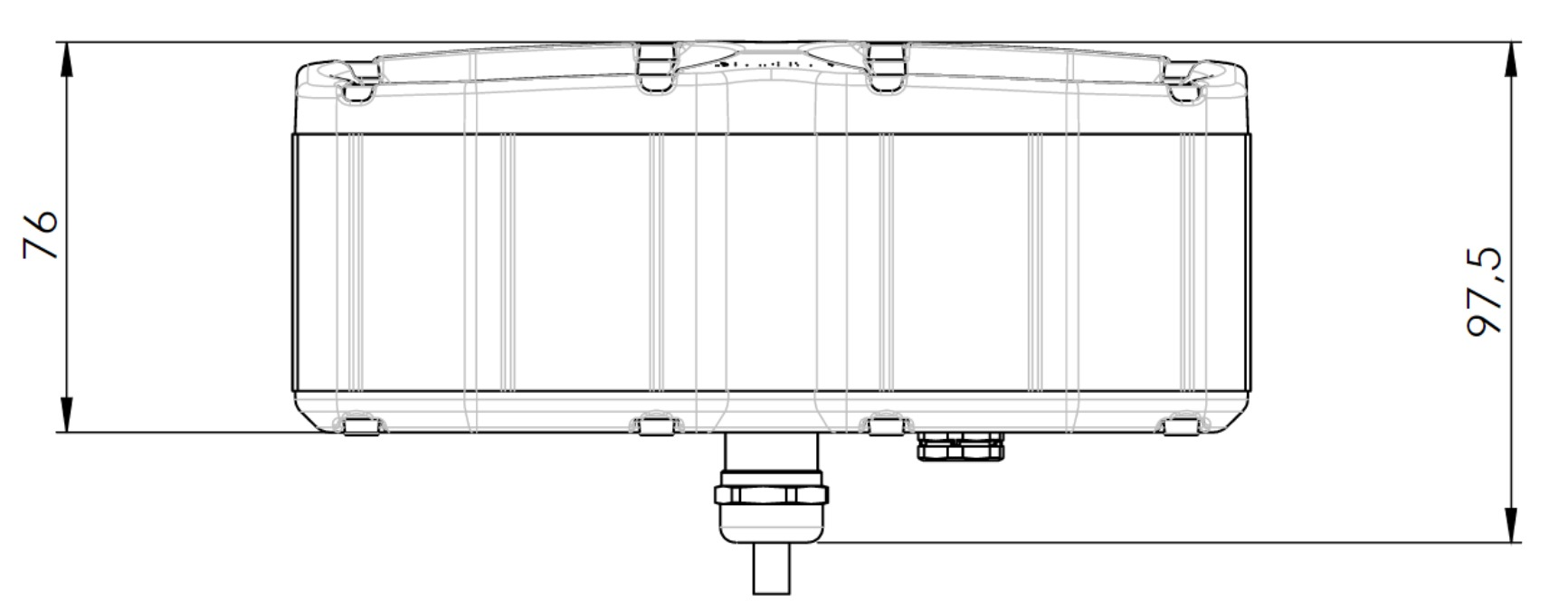

Bottom view |
|
|
|
Technical specifications
User connection
|
Video out connector |
|
|
Model |
WEIPU WF16J10TE |
|
Gender |
male |
Construction
|
Dimensions (L x W x H) |
186.8 mm x 97.5 mm x 65.6 mm |
|
Weight |
1.39 Kg |
|
Video out cable (L) |
0.5 m |
|
Housing material |
Zamak ZP5 / Aluminium EN AW-6060 |
|
Housing color |
Grey |
|
Video out cable's sheath color |
Black |
|
View Window |
3,3mm thick borosilicate glass |
Environmental
|
Operational Temperature |
-40°C to +75°C (-40 °F to 167 °F) |
|
Storage Temperature |
-40°C to +75°C (-40 °F to 167 °F) |
|
Cold / Hot Start |
-40°C to +75°C (-40 °F to 167 °F) |
Ordering information
|
BXT3-SH-C |
HS code |
8530900000 |
|
Blaxtair 3 standard sensor head (Color) |
||
|
BXT3-SH-G |
HS code |
8530900000 |
|
Blaxtair 3 high sensibility sensor head (Black & White) |
||
