4.4 Datasheet Voice Buzzer
1. General Description
%20-%20Copie.jpg?inst-v=b118dab5-5ca4-4bcb-91f8-d8ddebd6865e) | %20-%20Copiehnn.jpg?inst-v=b118dab5-5ca4-4bcb-91f8-d8ddebd6865e) |

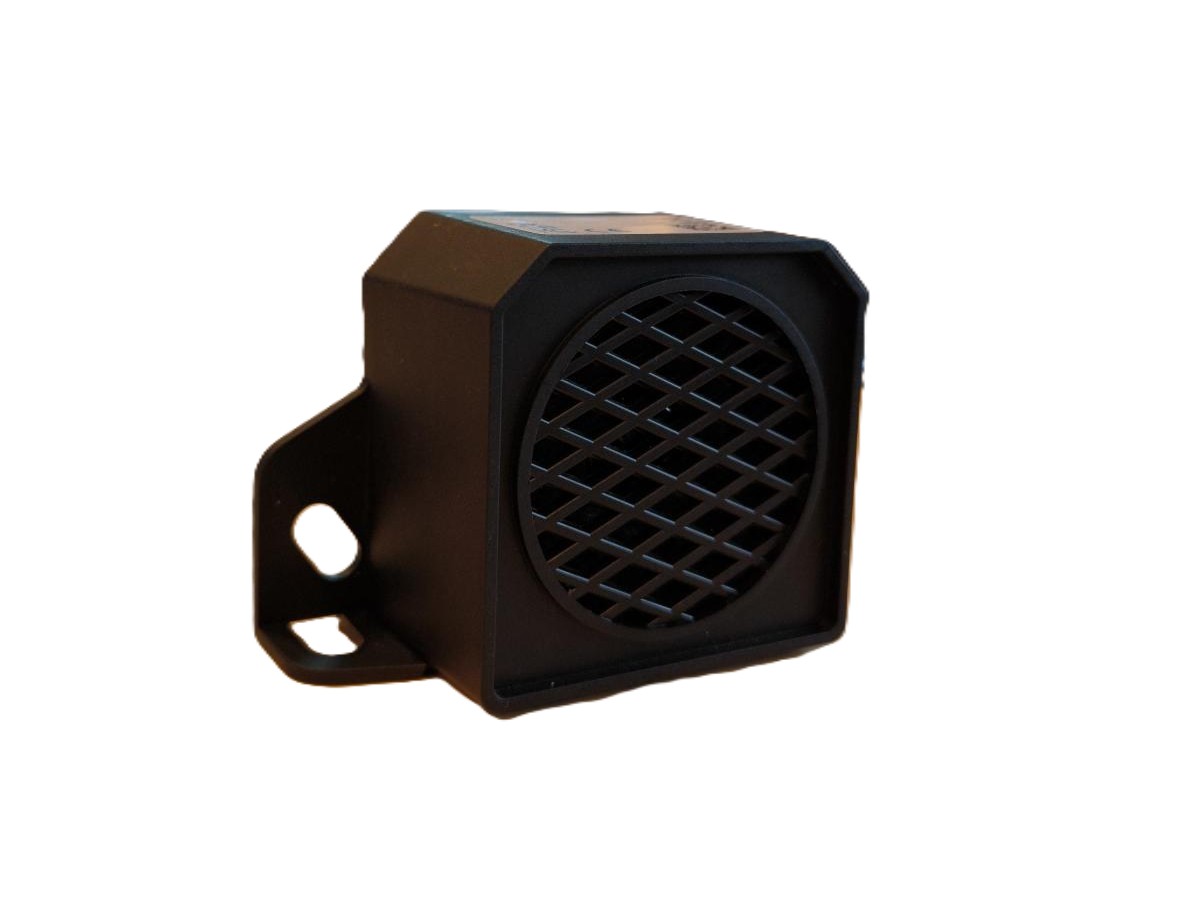

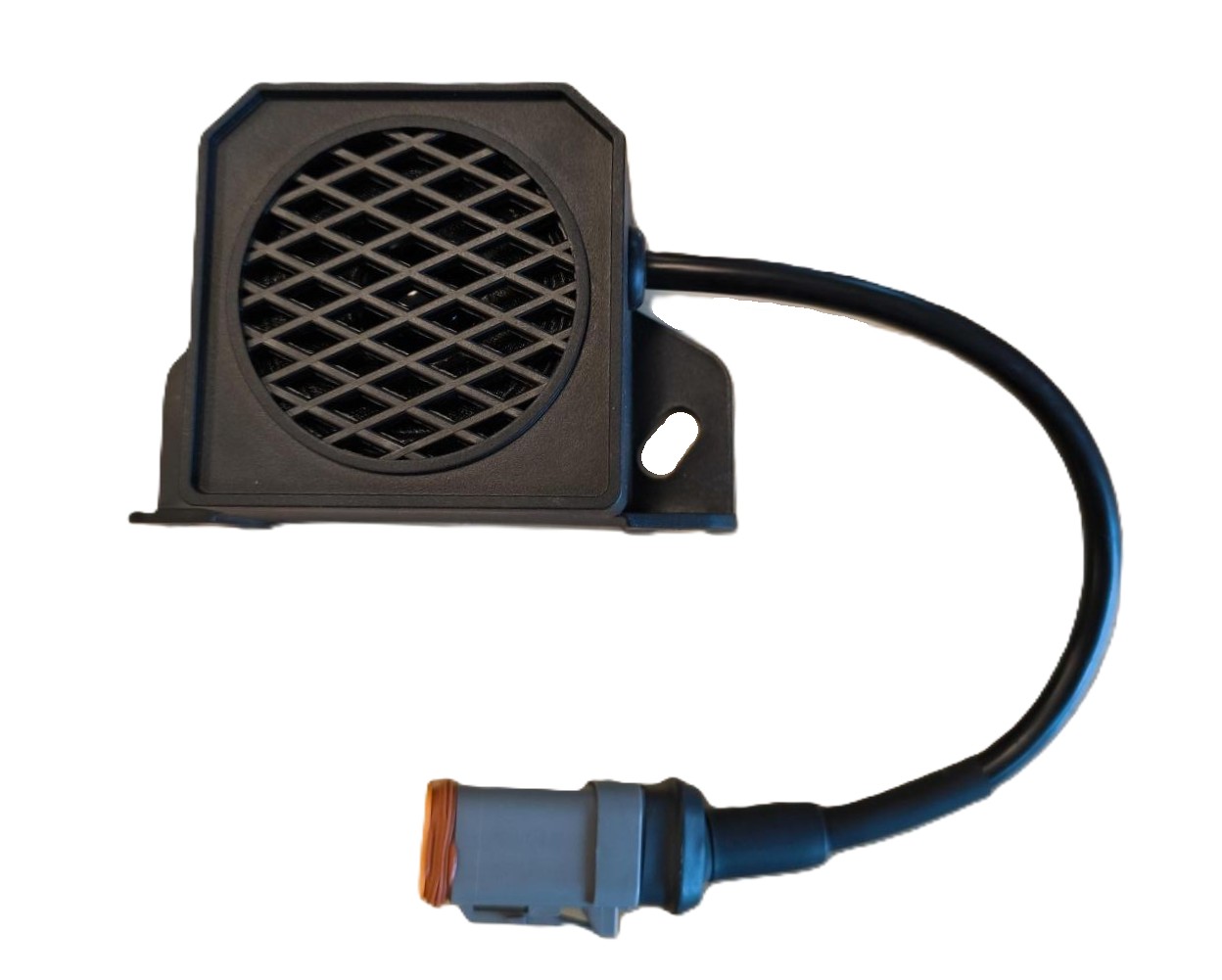

The Blaxtair Voice Buzzer is a vocal acoustic warning device designed to deliver clear and intelligible alerts during pedestrian detection or critical events detected by Blaxtair systems.
The module features a USB audio input, allowing playback of custom audio files such as voice messages, alarms, or warning sounds. Its wide supply voltage range (12–48 VDC), adjustable sound level, and IP68 protection rating make it suitable for harsh industrial environments.
2. Key Features
Feature | Description |
|---|---|
Product type | Voice buzzer with customizable audio (USB) |
Supply voltage | 12–48 VDC |
Maximum sound level | Up to 90 dB |
Volume adjustment | Manual selector, 4 positions |
Audio source | USB flash drive |
Protection rating | IP68 |
Industrial compatibility | Designed for outdoor and mobile equipment |
3. Electrical Specifications
Parameter | Specification |
|---|---|
Input voltage | 12–48 VDC |
Current consumption | 0.3 A max @ 12 VDC |
Maximum consumption | < 0.6 A (depending on audio file) |
Connector | Deutsch 6-pin male |
Consommation maximale
La consommation maximale peut varier en fonction du fichier audio lu. Des fichiers avec un niveau sonore moyen plus élevé, une durée de lecture plus longue ou une lecture continue peuvent entraîner une consommation supérieure à celle de sons courts ou intermittents.
4. Audio Characteristics
Parameter | Value |
|---|---|
Frequency range | 500 Hz – 7 kHz |
Audio playback | Depends on USB audio file |
Volume control | 4-position rotary selector |
Maximum sound pressure | Up to 90 dB |
5. Mechanical Characteristics

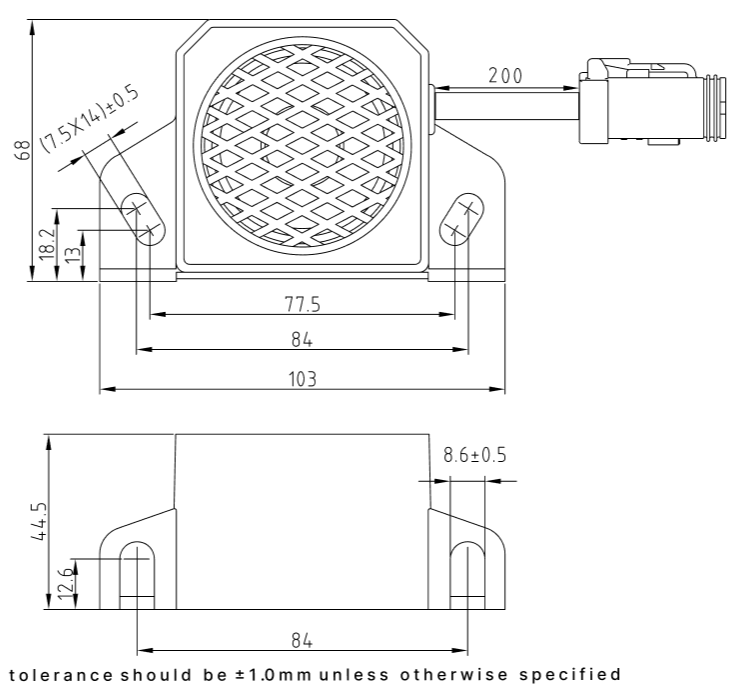

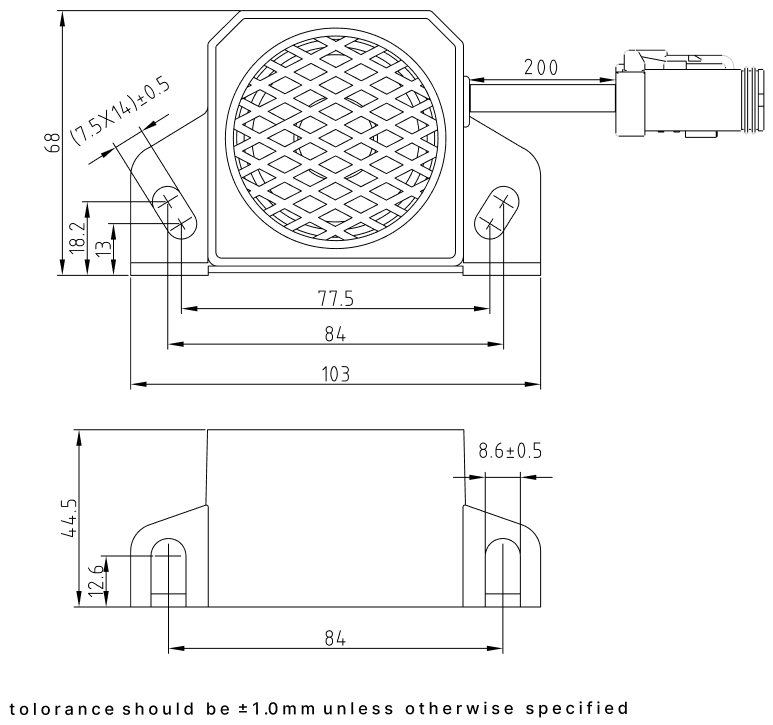

5.1 Main Dimensions
Length: 103 mm
Width: 84 mm
Height: 68 mm
Base height: 44.5 mm
5.2 Mounting
Mounting holes diameter: Ø 8.6 mm
Horizontal center distance: 77.5 mm
5.3 Cable
Total cable length: 200 mm
Connector type: Deutsch 6-pin male
6. Volume Adjustment
Selector position | Output level |
|---|---|
0 | 0 % (mute) |
1 | ~25 % |
2 | ~50–75 % |
3 | 100 % (≈ 90 dB) |
7. Wiring Overview
The Voice Buzzer is powered and controlled via a Deutsch 6-pin connector.
USB connectivity is provided for audio file loading via a dedicated cable.

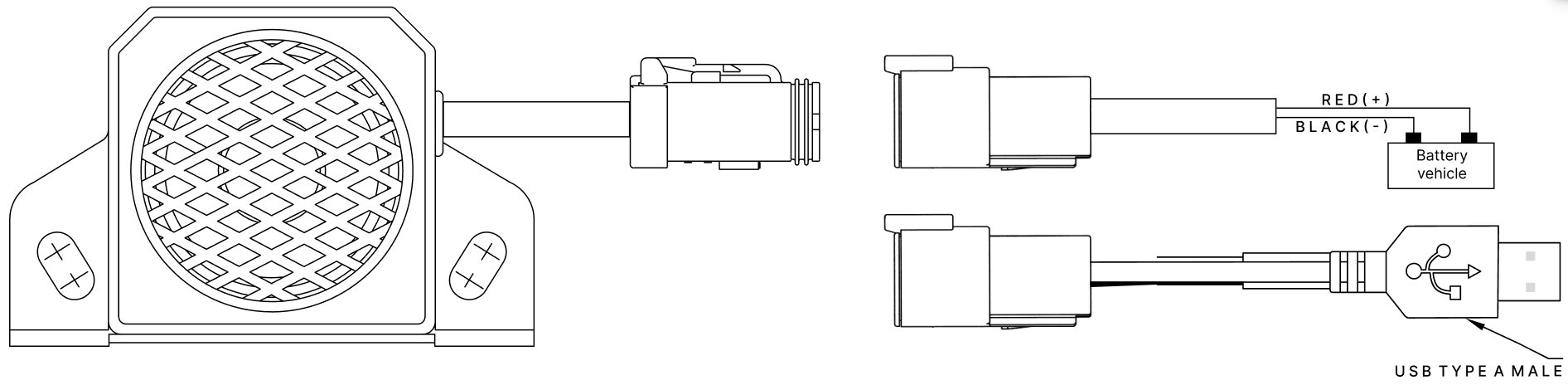

(Refer to wiring diagram for pin assignment.)
8. Associated References
Blaxtair reference | Description |
|---|---|
299-210-001 | Voice Buzzer |
105-610-003 | Mounting hardware screw kit |
499-313-002 | Deutsch 6-pin male to bare wires, 3 m |
499-315-001 | Deutsch 6-pin male to USB female, 1 m |
