Product reference: 199-760-005 (12V) and 199-760-006 (24V)

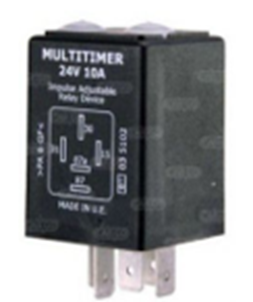

Objective of the relay
This relay allows to maintain all powered Blaxtair system for a set period of time after the engine has been switched off. It is adjustable between 1 minute and 1 hour. To find out the consumption and necessary cut-off times, refer to the documentation for the Blaxtair system concerned.
Use Case – When to Use It?
-
For vehicles with frequent engine stops.
-
Need to customize the cut-off time Blaxtair to combine safety and battery life.
Technical operation
-
Continue to power the Blaxtair for an adjustable duration after engine shutdown.
-
It is adjusted using 2 dials configuration, located on the relay.
Available adjustment ranges
Operation by dial
The relay uses two knobs:
-
Dial A: selection of the time range
-
Dial B: adjustment end of term in this beach
Example :
To adjust a cut after 25 minutes:
-
Turn dial A to position A5
-
Adjust the dial B to position B2
Electrical connection

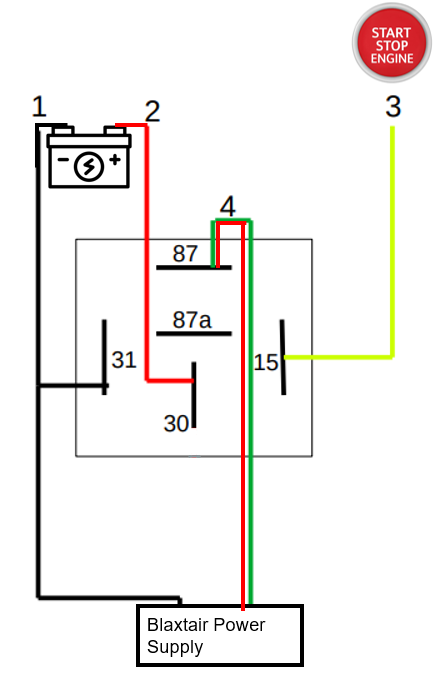

Here are the wiring references:
•87 / 87a / 30: relay terminals
•1 – Vehicle mass
•2 – Main vehicle power supply
•3 – Vehicle ignition contact
•4 – Blaxtair ignition wire
📍Connect the relay between the power supply and the Blaxtair ignition wire.
Verification:
A. Position the dial to the desired position with the engine off.
B. Start the engine and wait for the Blaxtair to be operational.
C. Turn off the engine and check that during the timeout period the system remains active.
Step adjustment + dial
The relay operates in two combined settings:
-
The installer chooses a position A (of A1 to A8) which defines a time range.
-
He then uses the dial B to adjust the duration within this range:
|
Dial A |
Dial B |
Approximate time obtained. |
|
A1 (1 min) |
B0 |
1 min |
|
|
B1 |
2 min |
|
|
B2 |
3 min |
|
|
B3 |
4 min |
|
A2 (5 min) |
B0 |
5 min |
|
|
B1 |
6 min 15 |
|
|
B2 |
7 min 30 |
|
|
B3 |
8 min 45 |
|
A3 (10 min) |
B0 |
10 min |
|
|
B1 |
11 min 15 |
|
|
B2 |
12 min 30 |
|
|
B3 |
13 min 45 |
|
A4 (15 min) |
B0 |
15 min |
|
|
B1 |
16 min 15 |
|
|
B2 |
17 min 30 |
|
|
B3 |
18 min 45 |
|
A5 (20 min) |
B0 |
20 min |
|
|
B1 |
22 min 30 |
|
|
B2 |
25 min |
|
|
B3 |
27 min 30 |
|
A6 (30 min) |
B0 |
30 min |
|
|
B1 |
33 min 45 |
|
|
B2 |
37 min 30 |
|
|
B3 |
41 min 15 |
|
A7 (45 min) |
B0 |
45 min |
|
|
B1 |
48 min 45 |
|
|
B2 |
52 min 30 |
|
|
B3 |
56 min 15 |
|
A8 (60 min) |
B0 → B3 |
60 min (fixed) |
