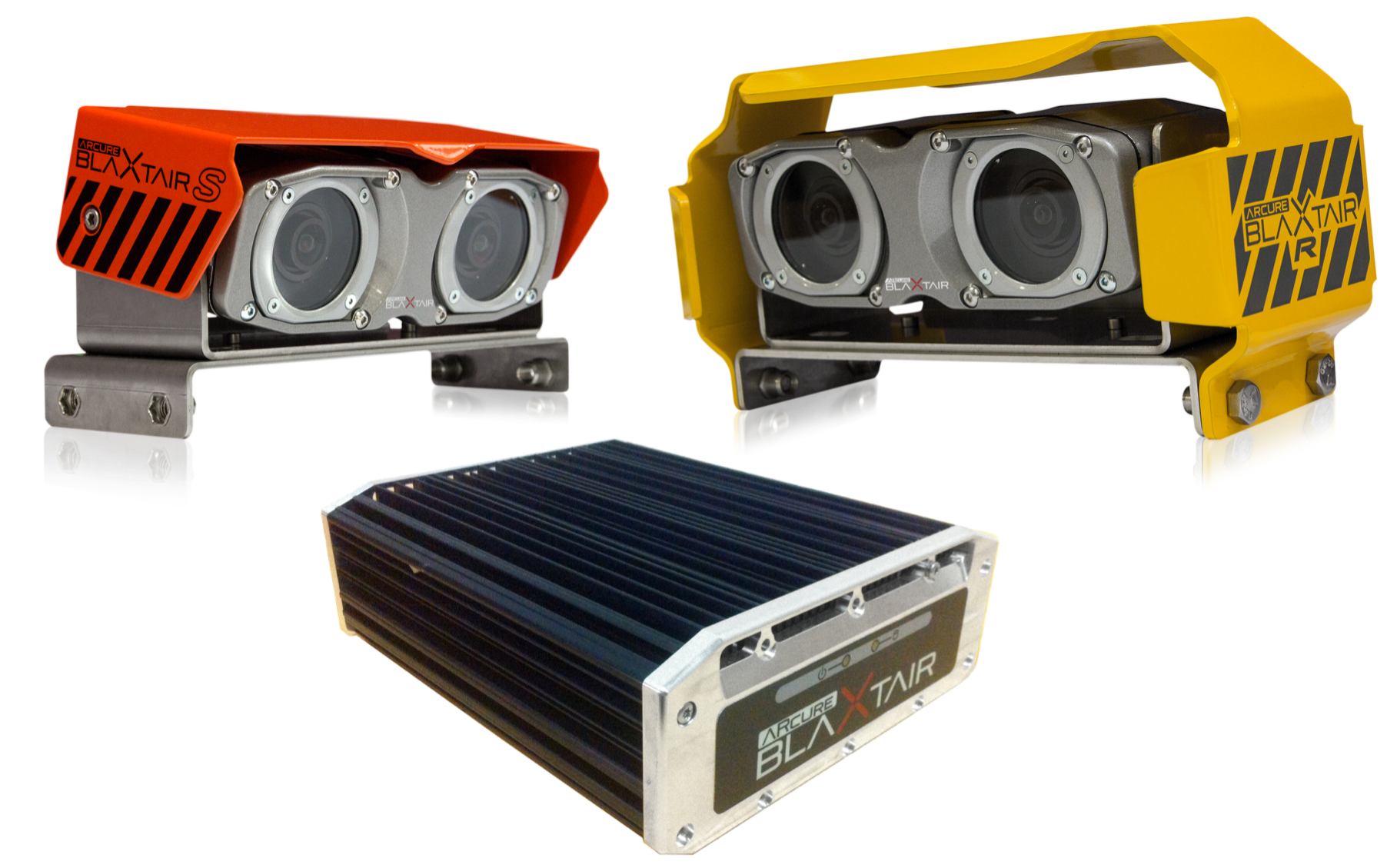

1.1 DATASHEET MR90, MR90A & MR180

Standards

Type

Water/dust protection

Sensor head

ISO 20653 - IP6K9K
IEC 60529 - IP67

Processing Unit

IEC 60529 - IP67

Vibrations & shocks

Sensor head

IEC 60068-2-64 - Random vibration
ISO 16750 § 4.4 g=57,9m/s2
IEC 60068-2-29: 500m/s2 during 6ms
IEC 60068-2-27: Bump, test Eb: 40g for 6ms

Processing unit

IEC 60068-2-64 - Random vibration
ISO 16750 § 4.4 g=57,9m/s2
IEC 60068-2-29: 500m/s2 during 6ms
IEC 60068-2-27: Bump, test Eb: 40g for 6ms

Electromagnetic Compatibility (EMC)

ISO 13766:2006-05

Earth-moving machinery

EN 12895:2015-09

Industrial trucks

EN 13309:2010-09

Construction machinery - EMC of machines with internal power supply

ISO 14982:2014-12

Agricultural and forestry machines

EN 55016-2-3:2010+ A1:2011
+ A2:2014

Immunity measuring apparatus and methods

EN 55012:2008-06
+ A1:2009

Engines: Radio disturbance characteristics

ISO 11452-2:2004-11

Narrowband radiated electromagnetic energy

ISO 7637-2:2011-03

Conduction and coupling

ISO 16750-2:2012-11

Testing for electrical and electronic equipment

Region

Regulatory compliance/quality marks

Europe

CE

Great Britain

UKCA

Front view

Side view

Bottom view

Front view

Side view

Bottom view

Front view

Side view

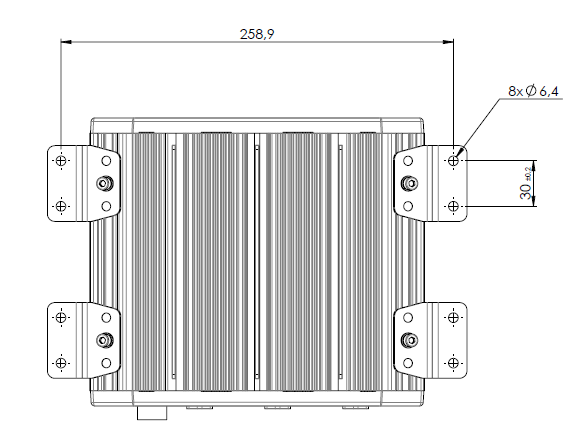

Top view

Power supply

Rated Voltage

12-24 VDC

⚠️ For vehicle voltage >24 VDC, we recommend using a power converter.

Input voltage

~10-32 VDC

Power Consumption

MR90

MR90A

MR180A

Typical mode

Battery +

25W

30W

50W

Ignition

1W

1W

1W

Current consumption IGN OFF

10mA @ 24V

10mA @ 24V

20mA @ 24V

Surge protection

Use the provided fuse kit

Display

Power supply

Input voltage

~10-32 VDC

Power consumption

Typical mode

5 W

Digital Inputs

x3 - 0 to 36V

Digital Outputs

x2 - 0 to12V – Max Amps=100mA

Ethernet

1 x Fast Ethernet

Serial bus

1 x RS232

USB

1 x USB3

Format

VGA

Model

7" TFT- LCD Color monitor with digital panel

Brightness

400 cd/m²

Contrast

500:1

Resolution

800 x 480 px

Viewing angle

U: 50º / D: 70º, R/L: 70º/70º

Audio output

1.5 W

IR remote control

Yes

Model

8" TFT

Brightness

1000 nits

Contrast

500:1

Resolution

800 x 600 px

Viewing angle

T: 50º / B: 70º, R/L: 70º/70º

Audio output

1 W

Remote controller

Yes

Starting duration

40 s (typical for MR90)

Switch off delay (soft Off)

5 s

Detection Latency

< 300 ms (according to ISO16001)

ℹ️ According to tests performed in the laboratory (from pedestrian presence in the field of view to discrete output being activated)

Detection update frequency

8 fps (typical)

Operational Illumination range

>300 Lux (recommended for best performance)

Color sensor head

High-sensitivity sensor head (black & white)

From 100 Lux to 80000 Lux

70 Lux to 80000 Lux

Field of View (displayed on the monitor)

Horizontal - 120°
Vertical - 78°

Field of obstacle detection

105°

Field of pedestrian classification

90°

Size of pedestrian detected (full performance)

150 cm min.

Pedestrian position detected

Standing

ℹ️ * Performance depends on the scene

Capacity

120 GB

Recording duration

2h10 max.

Supported Languages

English, French, German, Spanish

Dimensions

Without mounting kit and protective shield (L x W x H)

185.8 x 97.5 x 65.6 mm

With mounting kit and standard protective shield (L x W x H)

193.8 x 100.7 x 98.7 mm

With mounting kit and reinforced protective shield (L x W x H)

268 x 119 x 198 mm

Weight

Standard protective shield

0.46 Kg

Reinforced protective shield

1.64 Kg

Mounting kit

1.86 Kg

Sensor head

1.39 Kg

Construction

Sensor head

Zamak ZP5 / Aluminium EN AW-6060

Mounting kit

Stainless steel 304L

Protective shield

Electro galvanized steel DC01+ZE

View Window

3,3mm thick borosilicate glass

Length

Video out cable

0.5 m

Length

3, 5, 10, 15, or 20 m

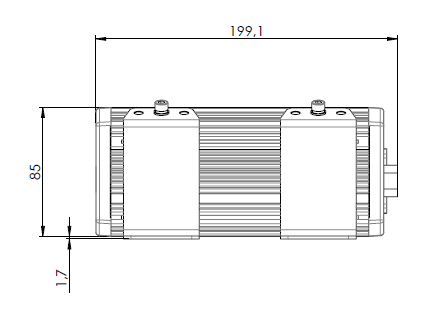

Dimensions

Without mounting brackets (L x W x H)

221 x 199.1 x 85 mm

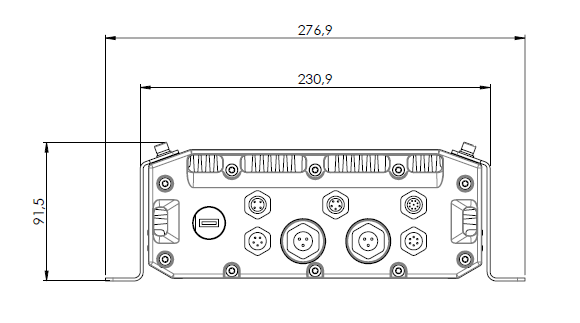

With mounting brackets (L x W x H)

276.9 x 199.1 x 91.5 mm

Weight

Processing unit

4.64 Kg

Mounting brackets

0.49 Kg

Construction

Processing unit

Zamak ZP5 / Aluminium EN AW-6060

Mounting brackets

Stainless steel 304L

Dimensions

Without flush mount (L x W x H)

182 × 26 × 122 mm

With flush mount (L x W x H)

198 × 31 × 138 mm

Dimensions

Without mounting bracket (W x H x D)

226 x 117 x 15.6 mm mm

Water/dust protection

Sensor head

IP6K9K*

ℹ️ * IP67 for the connector

Processing Unit

IP67

Sealing level is ensured under the following conditions

• Product housing shall not be opened during its overall life cycle

• All screws/connectors shall remain in factory delivery configuration

• Sealing caps shall remain on connectors if not connected

Waterproof monitor

IP67

Operational Temperature

Sensor head

-40°C to +75°C (-40 °F to 167 °F)

Processing unit

-40°C to +68°C (-40 °F to 154 °F)

Standard monitor

-20°C to +70°C (-4 °F to 158 °F) - Rh90%

Waterproof monitor

-20°C to +70°C (-4 °F to 158 °F)

Storage Temperature

Camera

-40°C to +75°C (-40 °F to 167 °F)

Processing unit

-40°C to +75°C (-40 °F to 167 °F)

Standard monitor

-30°C to +80°C (-22°F to 176 °F) - Rh90%

Waterproof monitor

-30°C to +80°C (-22°F to 176 °F)

Cold Start

Sensor head

-20°C (-4 °F)

Processing unit

-20°C (-4 °F)

Blaxtair MR90-S-03m

HS code

A color sensor head with a standard protective shield & mounting kit, 3 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-S-05m

HS code

A color sensor head with a standard protective shield & mounting kit, 5 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-S-10m

HS code

A color sensor head with a standard protective shield & mounting kit, 10 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-S-03m + REC

HS code

A color sensor head with a standard protective shield & mounting kit, 3 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-S-05m + REC

HS code

A color sensor head with a standard protective shield & mounting kit, 5 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-S-10m + REC

HS code

A color sensor head with a standard protective shield & mounting kit, 10 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-R-03m

HS code

A color sensor head with a reinforced protective shield & mounting kit, 3 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-R-05m

HS code

A color sensor head with a reinforced protective shield & mounting kit, 5 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-R-10m

HS code

A color sensor head with a reinforced protective shield & mounting kit, 10 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-R-03m + REC

HS code

A color sensor head with a reinforced protective shield & mounting kit, 3 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-R-05m + REC

HS code

A color sensor head with a reinforced protective shield & mounting kit, 5 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-R-10m + REC

HS code

A color sensor head with a reinforced protective shield & mounting kit, 10 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-U-05m

HS code

A high sensitivity sensor head (black&white) with a reinforced protective shield & mounting kit, 5 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-U-10m

HS code

A high sensitivity sensor head (black&white) with a reinforced protective shield & mounting kit, 10 m sensor head cable, a processing unit with mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-U-05m + REC

HS code

A high sensitivity sensor head (black&white) with a reinforced protective shield & mounting kit, 5 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair MR90-U-10m + REC

HS code

A high sensitivity sensor head (black&white) with a reinforced protective shield & mounting kit, 10 m sensor head cable, a processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, a standard display with mounting kit, 5 m display cable

Blaxtair Double MR90-R-05m

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 5 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-R-10m

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-R-15m

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 15 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-R-05m + REC

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 5 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-R-10m + REC

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-R-15m + REC

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 15 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-U-05m

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 5 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-U10m

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-U-15m

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 15 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x VGA to RCA video converter

Blaxtair Double MR90-U-05m + REC

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 5 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x  VGA to RCA video converter

Blaxtair Double MR90-U-10m + REC

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x  VGA to RCA video converter

Blaxtair Double MR90-U-15m + REC

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 15 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x 5 m output cable, 1 x multi-camera display with mounting kit, 1 x 5 m display cable, 2 x  VGA to RCA video converter

Blaxtair MR90A-S-03m

HS code

Alternate front and back cameras. 2 x color sensor head with standard protective shield & mounting kit, 2 x 3 m sensor head cable, 1 x processing unit with mounting & fuse kits, 5 m power supply cable, 1 x standard display with mounting kit, 1 x 5 m display cable

Blaxtair MR90A-S-10m

HS code

Alternate front and back cameras. 2 x color sensor head with standard protective shield & mounting kit, 2 x 10 m sensor head cable, 1 x processing unit with mounting & fuse kits, 5 m power supply cable, 1 x standard display with mounting kit, 1 x 5 m display cable

Blaxtair MR90A-S-03m + REC

HS code

Alternate front and back cameras. 2 x color sensor head with reinforced protective shield & mounting kit, 2 x 3 m sensor head cable, 1 x processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, 1 x standard display with mounting kit, 1 x 5 m display cable

Blaxtair MR90A-R-10m

HS code

Alternate front and back cameras. 2 x color sensor head with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 1 x processing unit with mounting & fuse kits, 5 m power supply cable, 1 x standard display with mounting kit, 5 m display cable

Blaxtair MR90A-R-10m + REC

HS code

Alternate front and back cameras. 2 x color sensor head with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 1 x processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, 1 x standard display with mounting kit, 5 m display cable

Blaxtair MR90A-U-05m + REC

HS code

Alternate front and back cameras. 2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 5 m sensor head cable, 1 x processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, 1 x standard display with mounting kit, 5 m display cable

Blaxtair MR90A-U-10m + REC

HS code

Alternate front and back cameras. 2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 1 x processing unit with 120GB video recorder, mounting & fuse kits, 5 m power supply cable, 1 x standard display with mounting kit, 5 m display cable

Blaxtair MR180-R-05m

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 5 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

Blaxtair MR180-R-10m

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

Blaxtair MR180-R-15m

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 15 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable, 2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

Blaxtair MR180-R-05m + REC

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 5 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

Blaxtair MR180-R-10m+ REC

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

Blaxtair MR180-R-15m + REC

HS code

2 x color sensor head with reinforced protective shield & mounting kit, 2 x 15 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable, 2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

Blaxtair MR180-U-10m

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 10 m sensor head cable, 2 x processing unit with mounting & fuse kits, 2 x 5 m power supply cable,  2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

Blaxtair MR180-U-15m + REC

HS code

2 x high sensitivity sensor head (black&white) with reinforced protective shield & mounting kit, 2 x 15 m sensor head cable, 2 x processing unit with 120GB video recorder, mounting & fuse kits, 2 x 5 m power supply cable,  2 x standard display with mounting kit, 2 x 5 m display cable, 1 x PU to PU cable

BXT3-CBL-PUSH-01

HS code

1 m Blaxtair 3 sensor head cable

BXT3-CBL-PUSH-02

HS code

2 m Blaxtair 3 sensor head cable

BXT3-CBL-PUSH-03

HS code

3 m Blaxtair 3 sensor head cable

BXT3-CBL-PUSH-05

HS code

5 m Blaxtair 3 sensor head cable

BXT3-CBL-PUSH-10

HS code

10 m Blaxtair 3 sensor head cable

BXT3-CBL-PUSH-15

HS code

15 m Blaxtair 3 sensor head cable

BXT3-CBL-PUSH-20

HS code

20 m Blaxtair 3 sensor head cable

BXT-DISP-N

HS code

Blaxtair 3 standard display, with U-support bracket, sun shield, IR remote control (no battery included), and All-in-One cable

BXT-DISP-E-S0

HS code

Blaxtair 3 waterproof display with metal stand, remote controller, and All-in-One cable

BXT3-CBL-PWPU-05m

HS code

5 m Blaxtair 3 power supply cable

BXT3-CBL-PWPU-15m

HS code

15 m Blaxtair 3 power supply cable
