Flash Beacon
Description
Audible warning devices for the Blaxtair Origin system

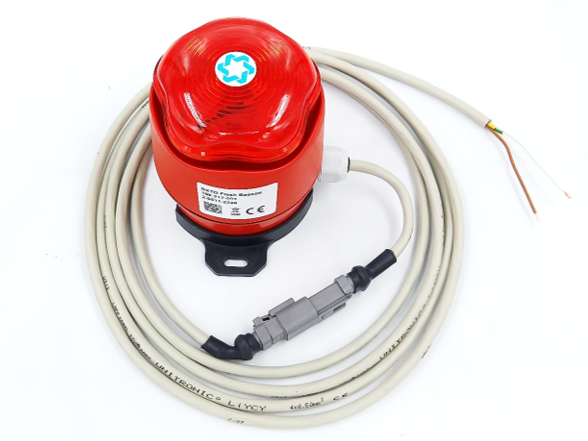

Our Flash Beacon combines the aesthetics of a sounder with the latest strobe technology to create an extremely efficient sounder/beacon combination
-
Weatherproof - IP66
-
Ultra-low current consumption
-
Temperature range from -20°C to +55°C
-
Choice of 3 volume levels
|
|---|
Certifications and approvals
|
Standards |
Type |
|
Water/dust protection |
IP66 |
|
Marks |
CE, RoHS |
|
Region |
Regulatory compliance/quality marks |
|
Europe |
CE |
Installation / configuration notes
|
Front view |
Back view |
|
|
|
Side view |
Top view |
|
|
|
Sound output level |
||
|---|---|---|
|

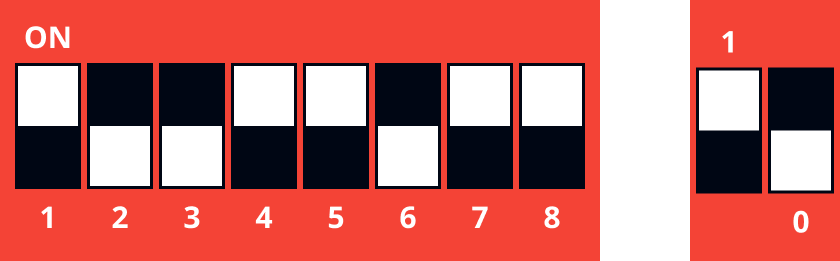

Switch bank |
||

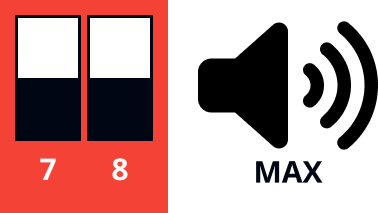

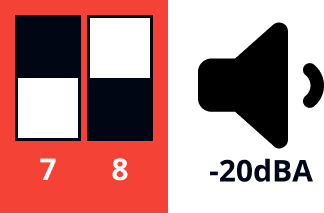

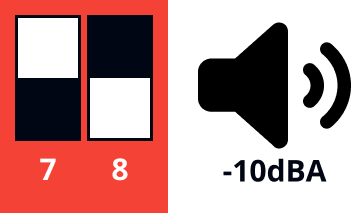

Change output level via switches 7 & 8 |
||
|
|
|
Technical specifications
Electrical
|
Rated voltage |
12-24 Vdc |
|
Input voltage |
9-30 Vdc |
|
Flash current consumption (typical) |
90 mA @ 12 Vdc
|
|
Sound output current consumption (typical) |
3 mA @ 12 Vdc
|
Light
|
Lens color |
Red |
|
Flash rate |
1/sec |
|
Light Effect |
Strobe |
|
Bulb Type |
Xenon or Led |
Sound
|
Sounder Type |
Electronic |
|
Frequency and pattern |
Intermittent 660 Hz - 150 ms on, 150 ms off |
|
Typical Sound Pressure Level @ 1m on axis |
90 dB @ 12 V
|
User connection
|
Flash beacon connector |
Deutsch DT 2-pin |
|
Connector kit |
Deutsch DT 2-pin Pigtail Kit (Female Terminals) |
Mechanical
|
Flash beacon |
|
|---|---|
|
Dimensions (W x H) |
109 x 93 mm ( 4.3 x 3.7 in) |
|
Weight |
280 g |
|
Housing Colour |
Red |
|
Housing Material |
ABS |
|
Cable length |
200 mm |
|
Connector kit length |
3 m |
Environmental
|
Operational Temperature |
-20°C to +55°C (-4 °F to 131 °F) |
|
Storage Temperature |
-20°C to +55°C (-4 °F to 131 °F) |
Ordering information
|
|
|
|
|
Flash beacon |
||
|---|---|---|
|
100-212-001 |
HS code |
8530900000 |
|
Blaxtair Origin Flash Beacon with 3 m cable (Deutsch connector), connector kit for processing unit main cable, and mounting bracket |
||
