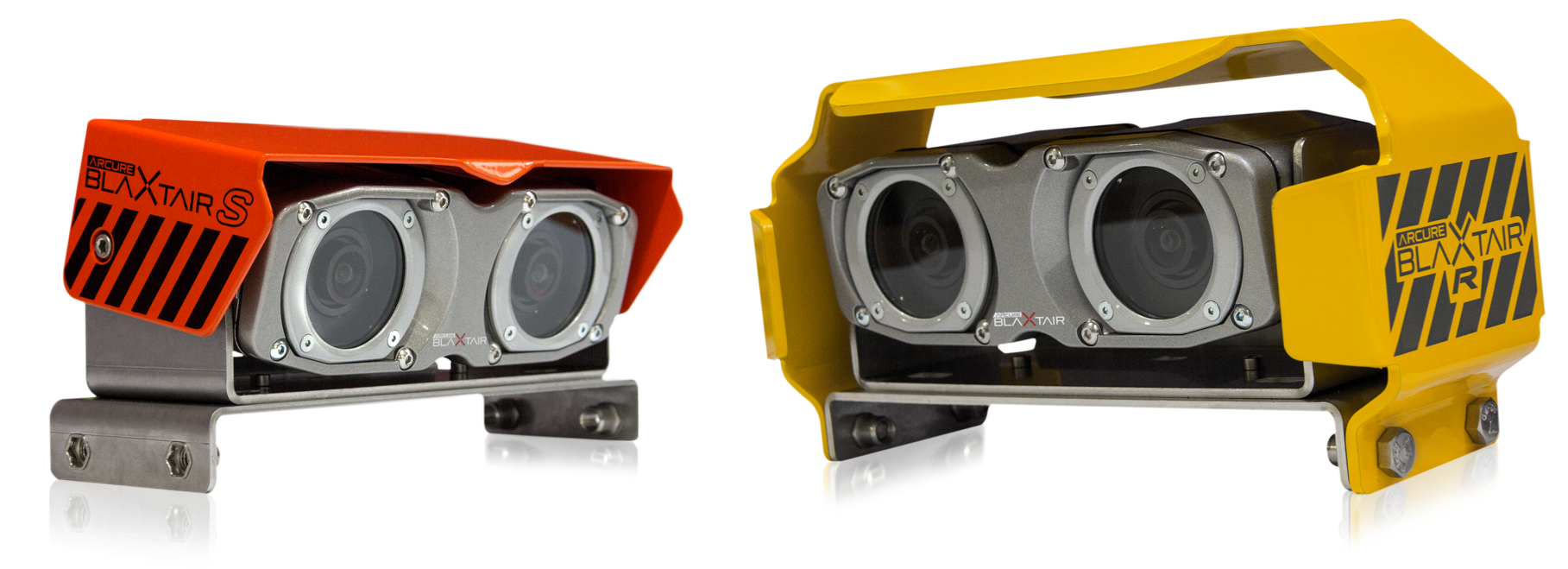

Sensor head with mounting kit and protective hood
Description
Sensor head for Blaxtair 3 - Pedestrian proximity detection system
Certifications and approvals
|
Region |
Certification |
|
Europe |
CE Declaration of Conformity |
|
Environmental |
|
|
Ingress Protection |
IP69K |
|
Vibrations according to IEC 60068-2-64 |
ISO 16750 § 4.4 g=57,9m/s2 |
|
Shocks |
ISO 16750
|
Installation / configuration notes
|
Sensor head with mounting kit and standard hood |
||
|---|---|---|
|
Front view |
Left side view |
Bottom view |
|
|
|
|
Sensor head with mounting kit and reinforced hood |
||
|---|---|---|
|
Front view |
Left side view |
Bottom view |
|
|
|
Technical specifications
|
Connector |
|
|
Model |
WEIPU WF16J10TE |
|
Gender |
male |
Mechanical
|
Dimensions |
|
|
Without mounting kit and protective shield (L x W x H) |
186.8 mm x 97.5 mm x 65.6 mm |
|
With mounting kit and standard protective shield (L x W x H) |
193.8 mm x 100.7 mm x 98.7 mm |
|
With mounting kit and reinforced protective shield (L x W x H) |
268 mm x 119 mm x 198 mm |
|
Weight |
|
|
Sensor head |
1.39 Kg |
|
Standard protective shield |
0.46 Kg |
|
Reinforced protective shield |
1.64 Kg |
|
Mounting kit |
1.86 Kg |
|
Length |
|
|
Video out cable |
0.5 m |
|
Construction |
|
|
Sensor head |
Zamak ZP5 / Aluminium EN AW-6060 |
|
Sheath color |
Black |
|
Mounting kit |
Stainless steel 304L |
|
Protective shield |
Electrogalvanized steel DC01+ZE |
|
View Window |
3,3mm thick borosilicate glass |
Environmental
|
Operational Temperature |
-40°C to +75°C (-40 °F to 167 °F) |
|
Storage Temperature |
-40°C to +75°C (-40 °F to 167 °F) |
|
Cold / Hot Start |
-40°C to +75°C (-40 °F to 167 °F) |
Ordering information
|
BXT3-SH-C |
HS code |
6894654f6ez |
|
Blaxtair 3 high sensibility sensor head (Black & White) |
||
