1.3 DATASHEET SENSOR HEAD WITH PROTECTIVE HOOD

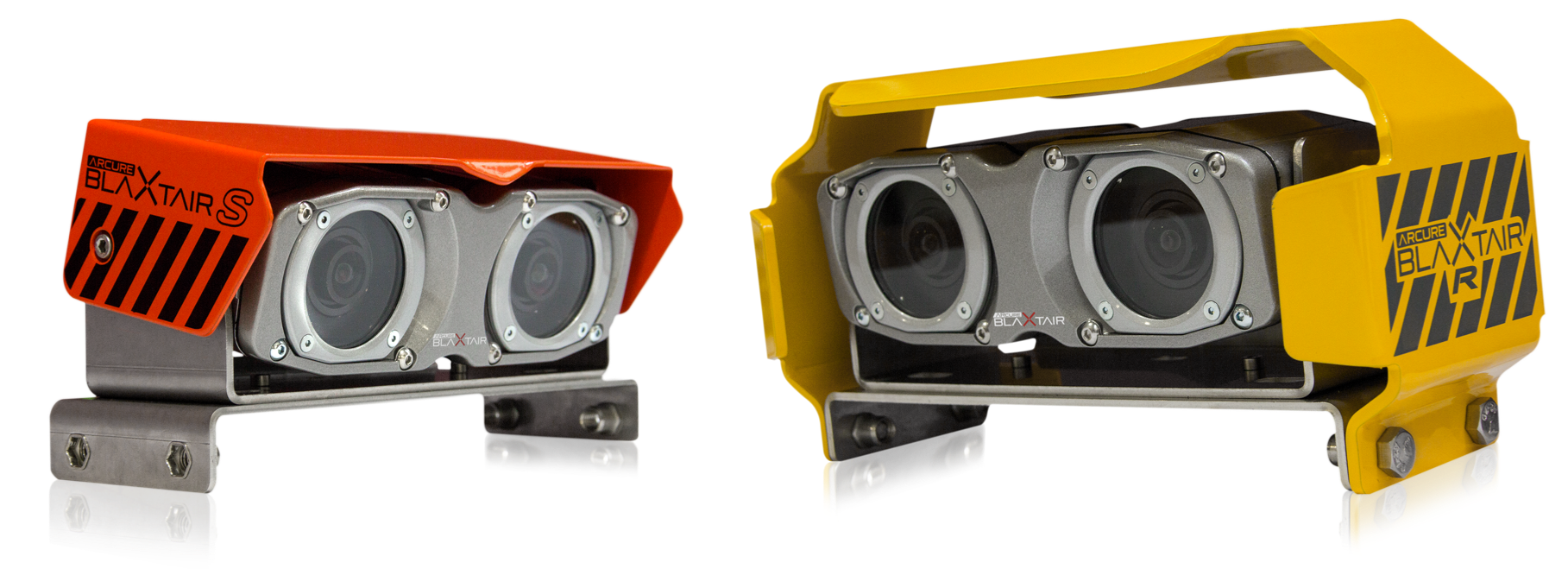

Sensor head with mounting kit and protective hood
Description
Sensor head for Blaxtair 3 - Pedestrian proximity detection system
Certifications and approvals
Region | Certification |
Europe | CE Declaration of Conformity |
Environmental | |
Ingress Protection | IP69K |
Vibrations according to IEC 60068-2-64 | ISO 16750 § 4.4 g=57,9m/s2 |
Shocks | ISO 16750 |
Installation / configuration notes
Sensor head with mounting kit and standard hood | ||
|---|---|---|
Front view | Left side view | Bottom view |
 |  |  |
Sensor head with mounting kit and reinforced hood | ||
|---|---|---|
Front view | Left side view | Bottom view |
 |  |  |
Technical specifications
Connector | |
Model | WEIPU WF16J10TE |
Gender | male |
Mechanical
Dimensions | |
Without mounting kit and protective shield (L x W x H) | 186.8 mm x 97.5 mm x 65.6 mm |
With mounting kit and standard protective shield (L x W x H) | 193.8 mm x 100.7 mm x 98.7 mm |
With mounting kit and reinforced protective shield (L x W x H) | 268 mm x 119 mm x 198 mm |
Weight | |
Sensor head | 1.39 Kg |
Standard protective shield | 0.46 Kg |
Reinforced protective shield | 1.64 Kg |
Mounting kit | 1.86 Kg |
Length | |
Video out cable | 0.5 m |
Construction | |
Sensor head | Zamak ZP5 / Aluminium EN AW-6060 |
Sheath color | Black |
Mounting kit | Stainless steel 304L |
Protective shield | Electrogalvanized steel DC01+ZE |
View Window | 3,3mm thick borosilicate glass |
Environmental
Operational Temperature | -40°C to +75°C (-40 °F to 167 °F) |
Storage Temperature | -40°C to +75°C (-40 °F to 167 °F) |
Cold / Hot Start | -40°C to +75°C (-40 °F to 167 °F) |
Ordering information
BXT3-SH-C | HS code | 6894654f6ez |
Blaxtair 3 high sensibility sensor head (Black & White) | ||
