5.2.2 SYSTEM BEHAVIOR
During a technical issue, several cases may occur:
Use case | Visual warning | Audible warning | Icon |

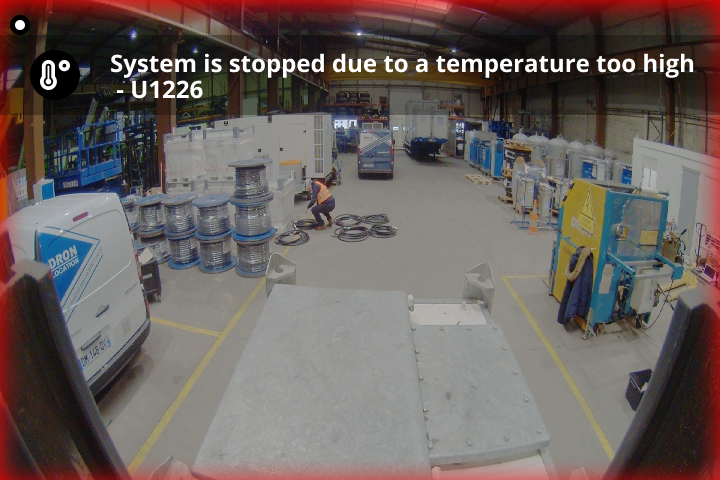

It is impossible to detect a pedestrian; in this case, the Blaxtair Origin system (OSD - On Screen Display) will display a red overlay and play a short audible alert. The Diagnostic Trouble Code and associated text will be displayed on the screen. |  |  | Technical issue category icon |

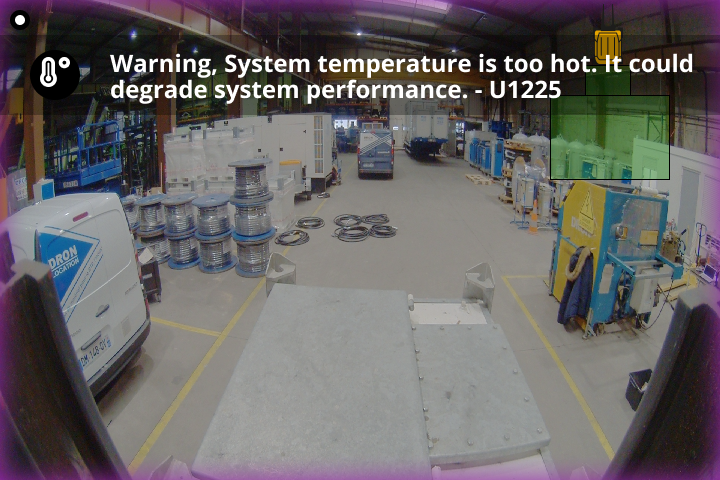

A technical issue impacts the system operation, but detection is still possible and may be degraded in performance. In this case, the Blaxtair Origin system (OSD - On Screen Display) will display a purple overlay if there is no pedestrian detected. The Diagnostic Trouble Code and associated text will be displayed on the screen. |  |  | Technical issue category icon |
If the technical issue does not directly impact the system operation (e.g., IoT issue), then the Blaxtair Origin system (OSD -On Screen Display) will not display any specific information. The issue report will be visible via the data reported by the IoT. | None | None | None |
Some technical issues can be rehabilitated when the issue disappears. Others may require a system reboot.
