6.7 Vehicle detection performance
Optimal performance of vehicule detection:

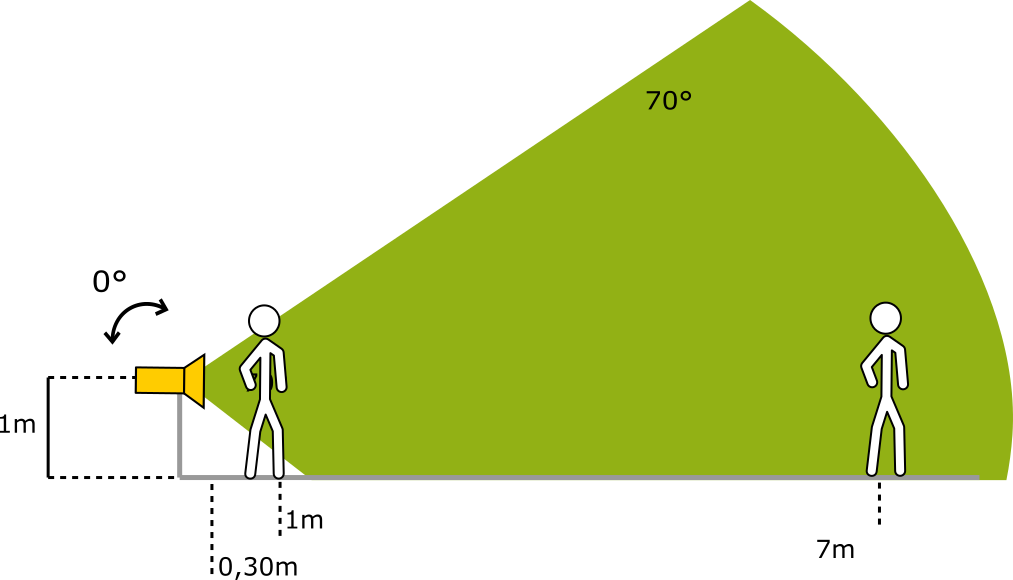

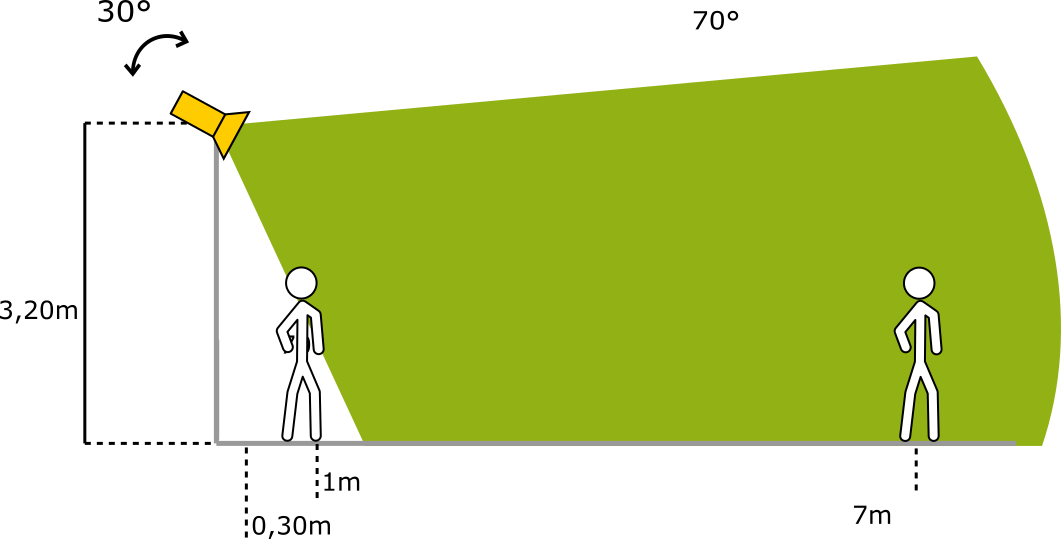

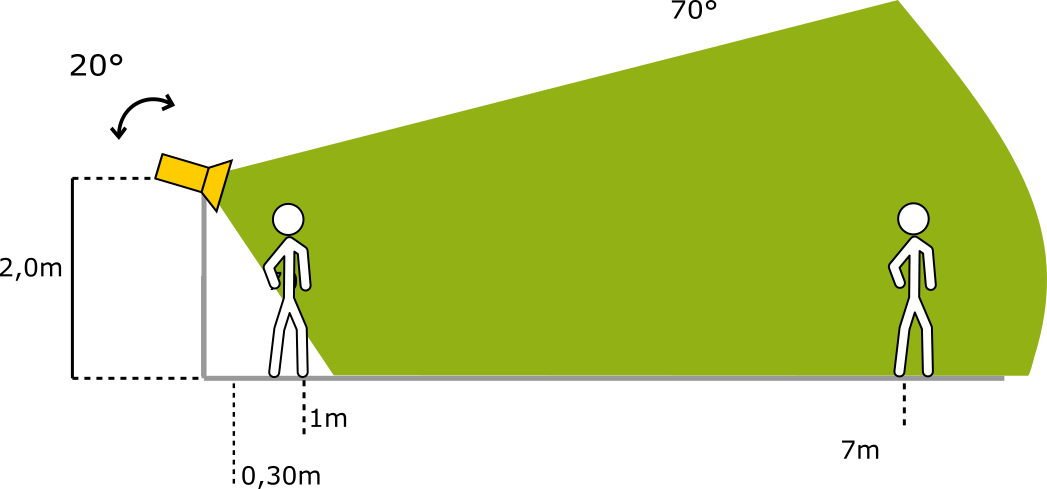

Installation maximizing performance
Height (m) | Range angle (°) | Low angle | High angle | Vehicle detection performance |

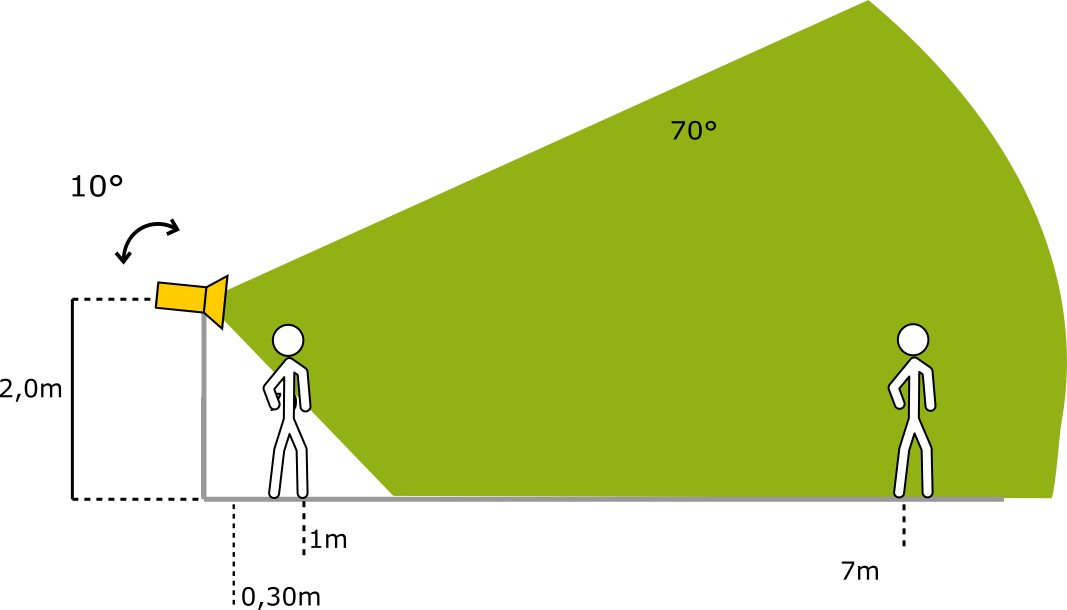

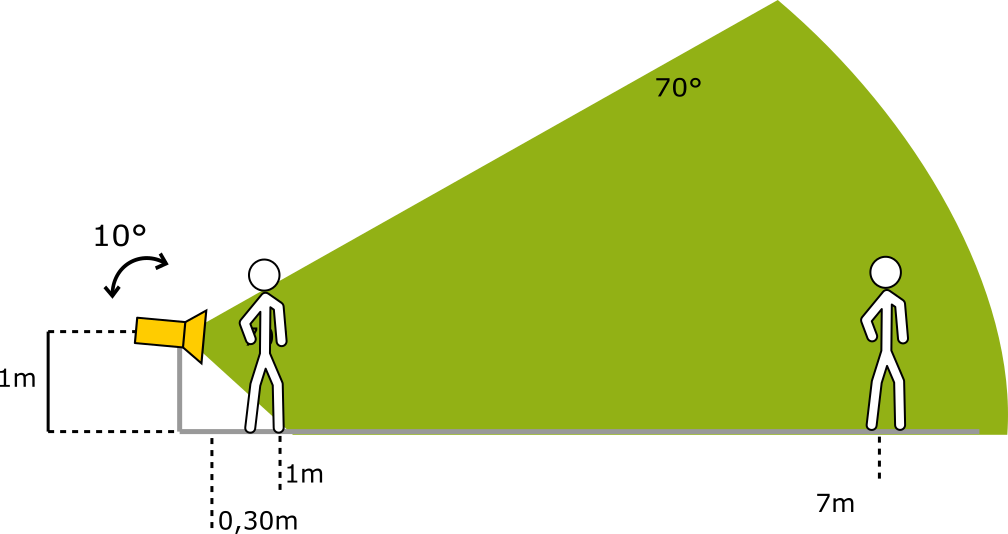

1m (3,2ft) | [5° +5°] be carefull not to install the camera with 0° angle (horizontal) |  |  | Detection Zone:
|

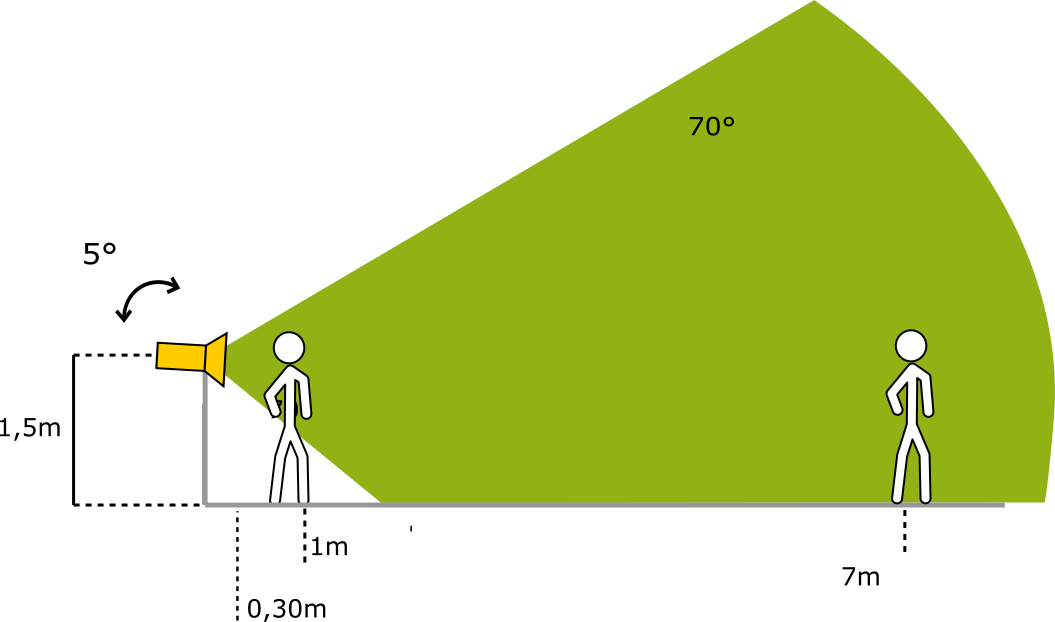

1.50m (4,9ft) | [10° +/-5° ] |  |  | Detection Zone:
|

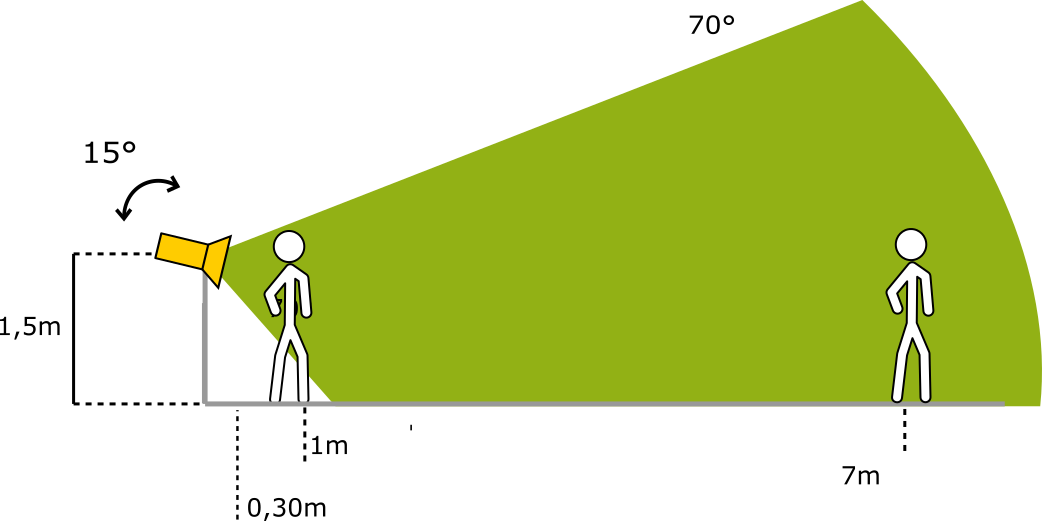

2m (6,5ft) | [15° +/-5° ] |  |  | Detection Zone:
|

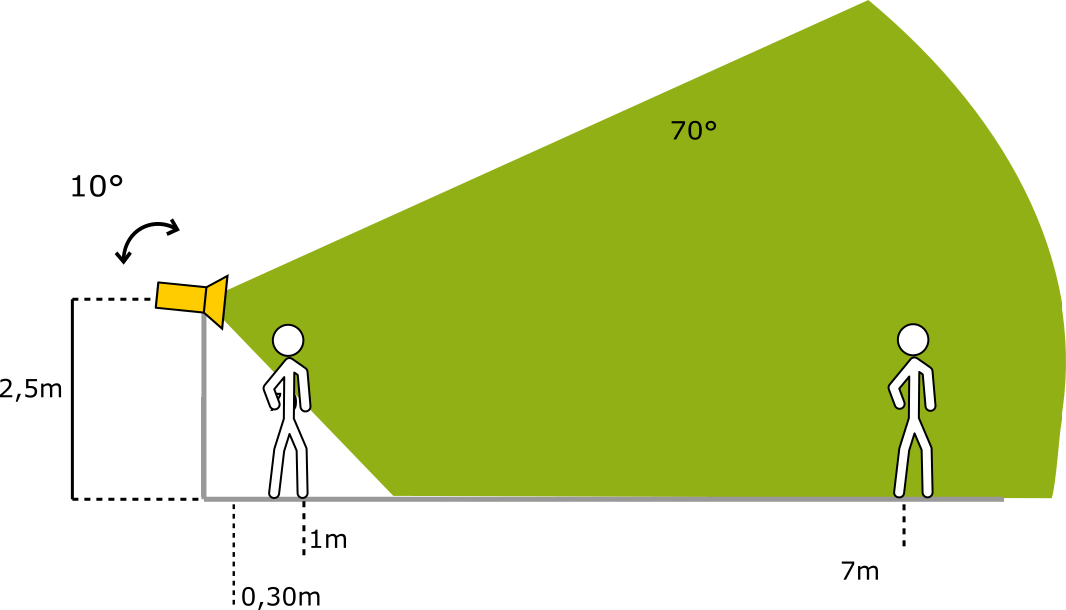

2.5m (8,2ft) | [17.5° +/- 7.5°] |  |  | Detection Zone:
|

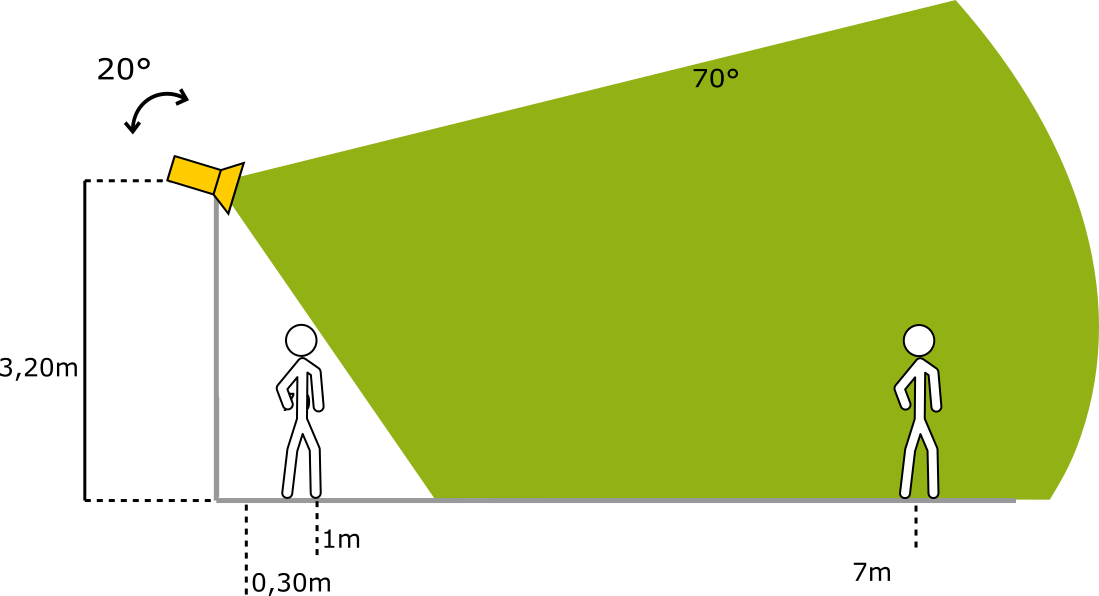

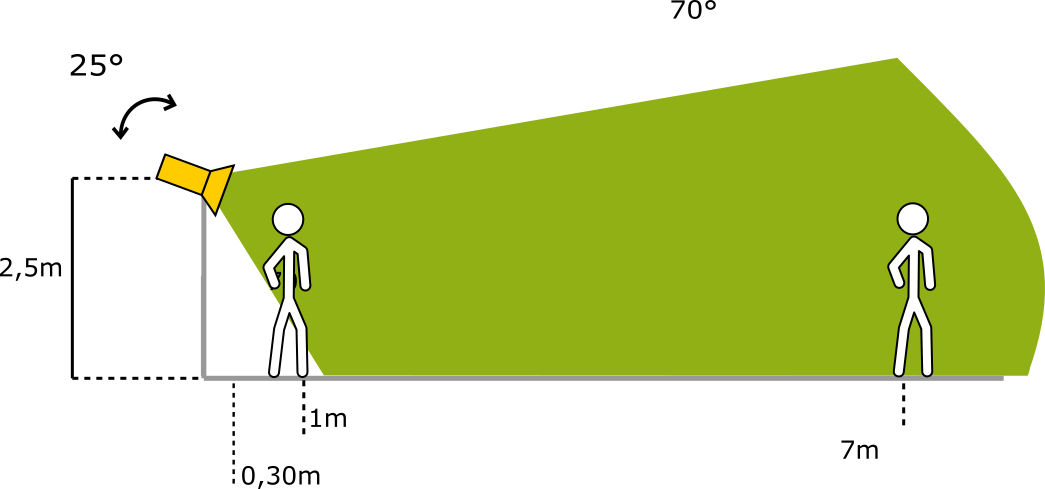

3.2m (10,5ft) | [25° +/-5° ] |  |  | Detection Zone:
|
Day/night performance
The table below shows the vehicle detection performance of the Blaxtair product based on the position of the detected vehicle relative to the AI camera.
The table presents:
Performance of detection by day for a vehicle 100% visible to a vehicle 50% visible
Performance of detection are the same whatever the weather is sunny , cloudy, rainy
Performance of detection by night for a vehicle 100% visible to vehicle 50% visible

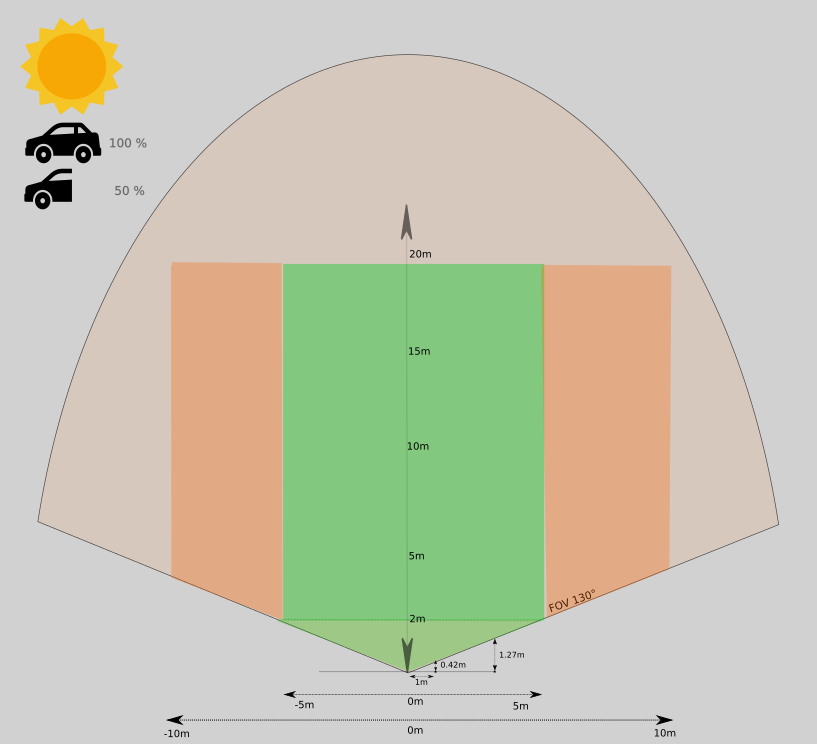

Field of View and detection zone | |
MR130 Single camera mode configuration | MR260 |
 | |
|
For optimal vehicle detection performance during day → configure the zone between
What happen during day for a length of detection beyond 20 meters? Configuration with length higher than 20m (65.6ft) is possible as system works properly but the system performances are not fully caracterized. The installation require a check by the Blaxtair Team to ensure nominal performance. 📧hotline@blaxtair.com | |
 | |
|

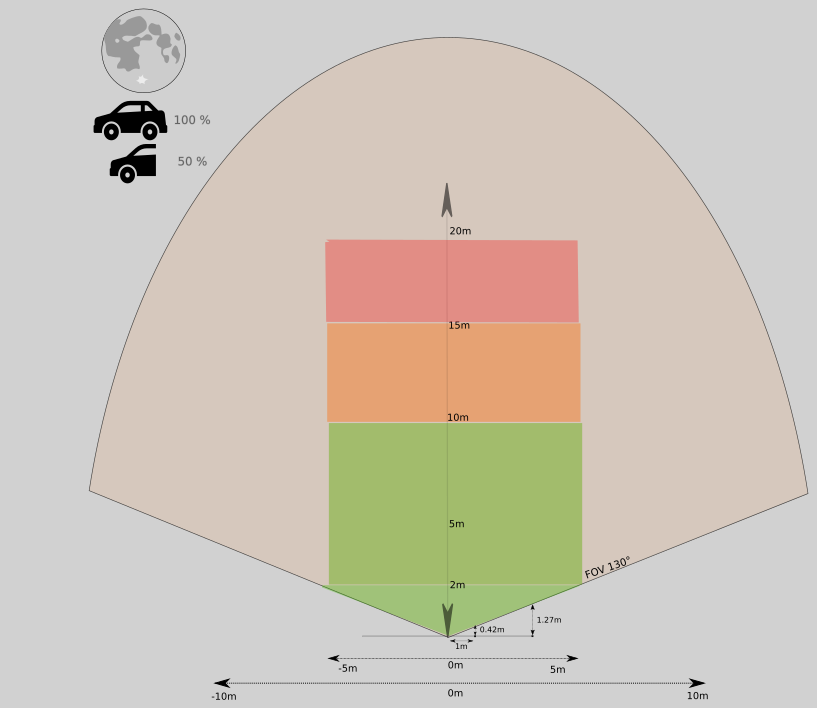

For optimal vehicle detection performance during night → configure the zone between
What happens during night for a length of detection beyong 10 meters? Configuration with length higher than 10m (32.8ft) is possible up to 15m as system works properly but the system performance are not fully caracterized. The installation require a check by the Blaxtair Team to ensure nominal performance. 📧hotline@blaxtair.com After 15m (49.2ft) the performance is not sufficient. | |
Contact us by email at :
On-road vehicle
The bellow on-road vehicle are detected by the Blaxtair system
On-road vehicle | Visual |

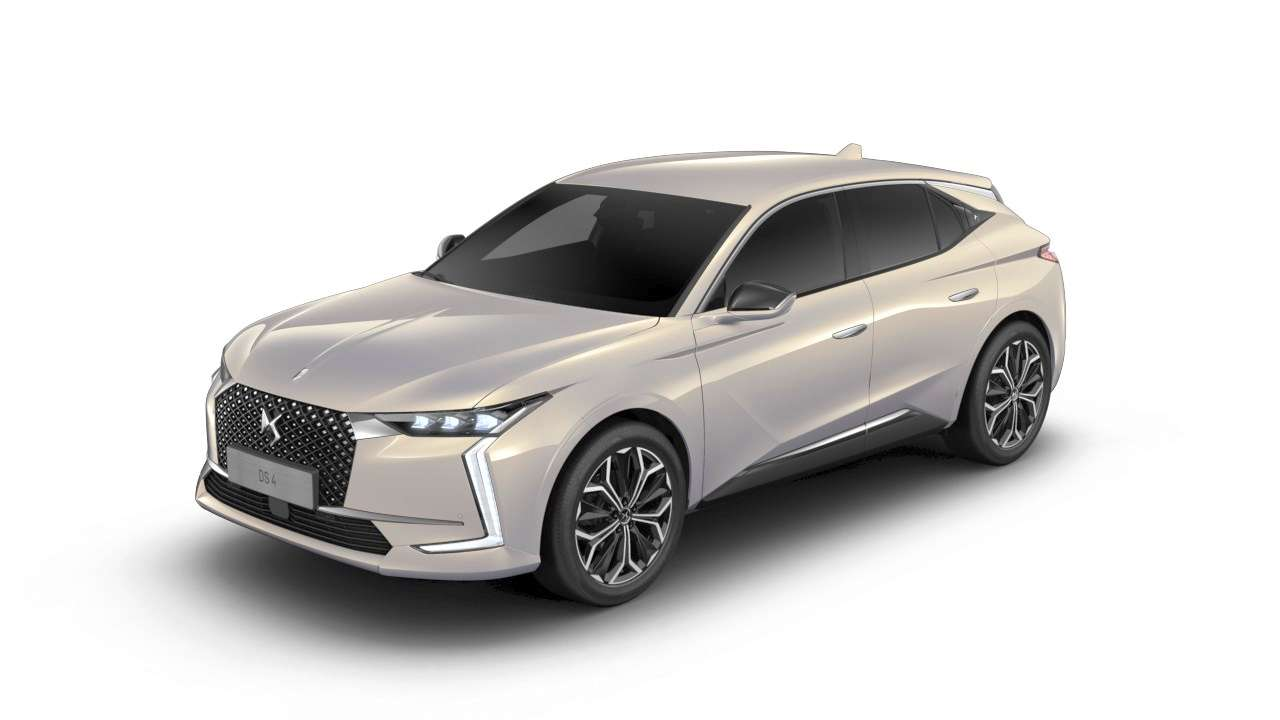

Cars |  |

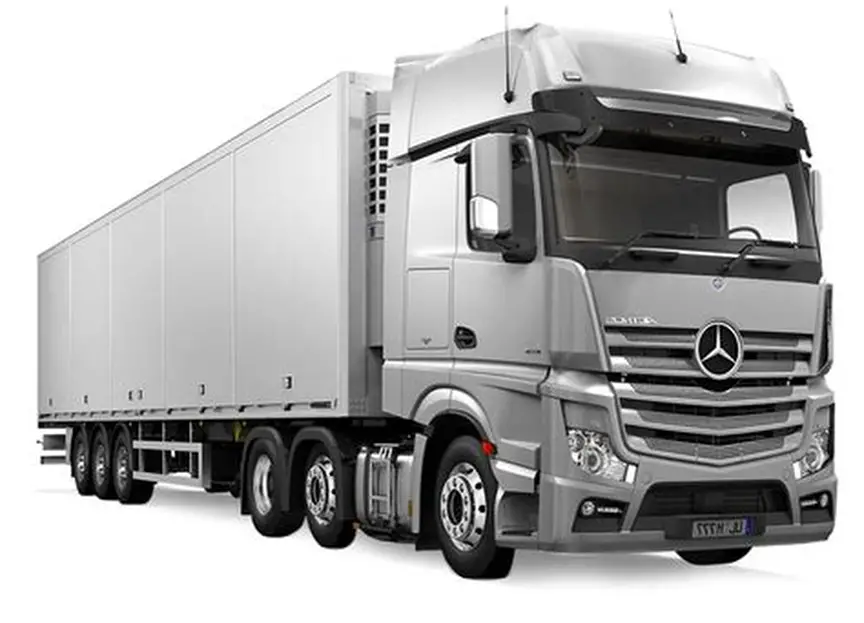

Trucks |  |

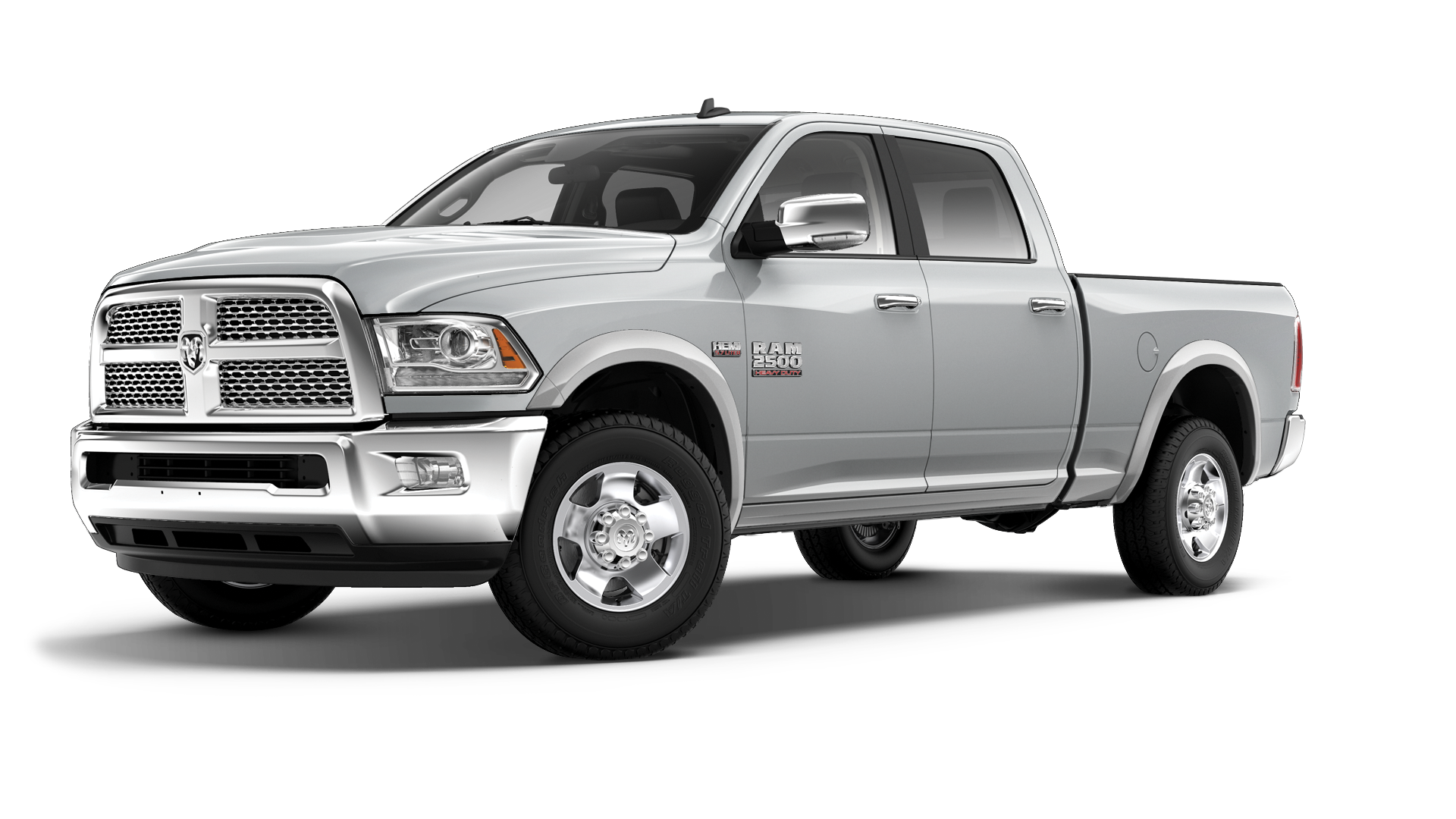

Pick-ups |  |

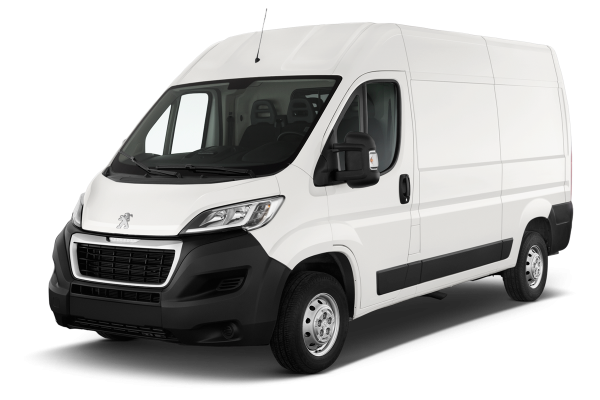

Vans |  |

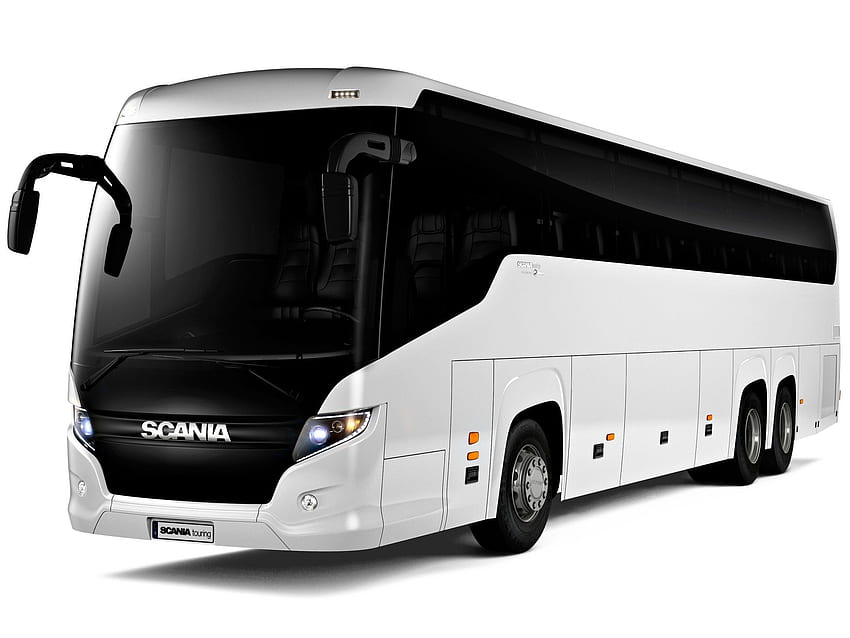

Bus |  |

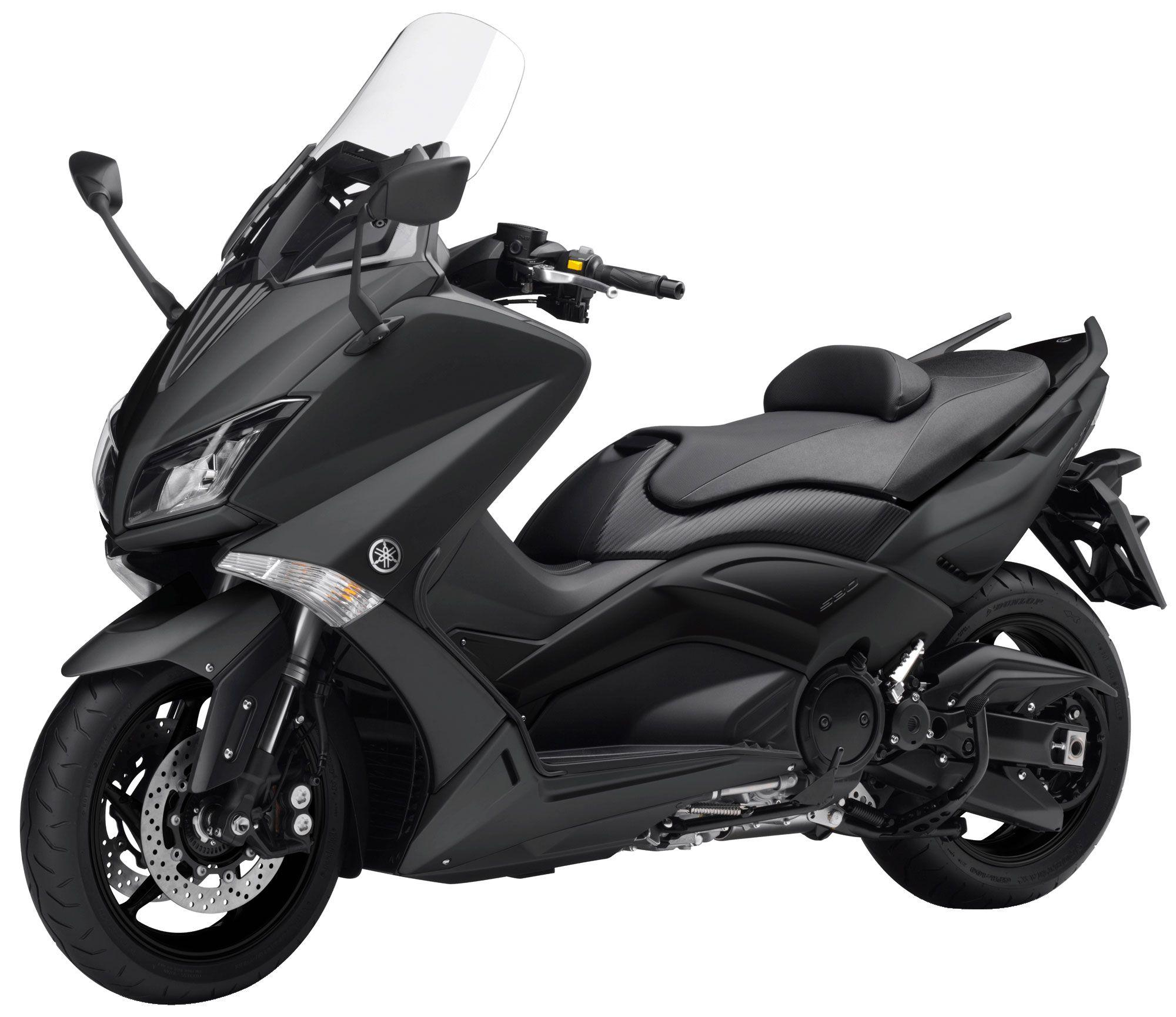

Scooters |  |

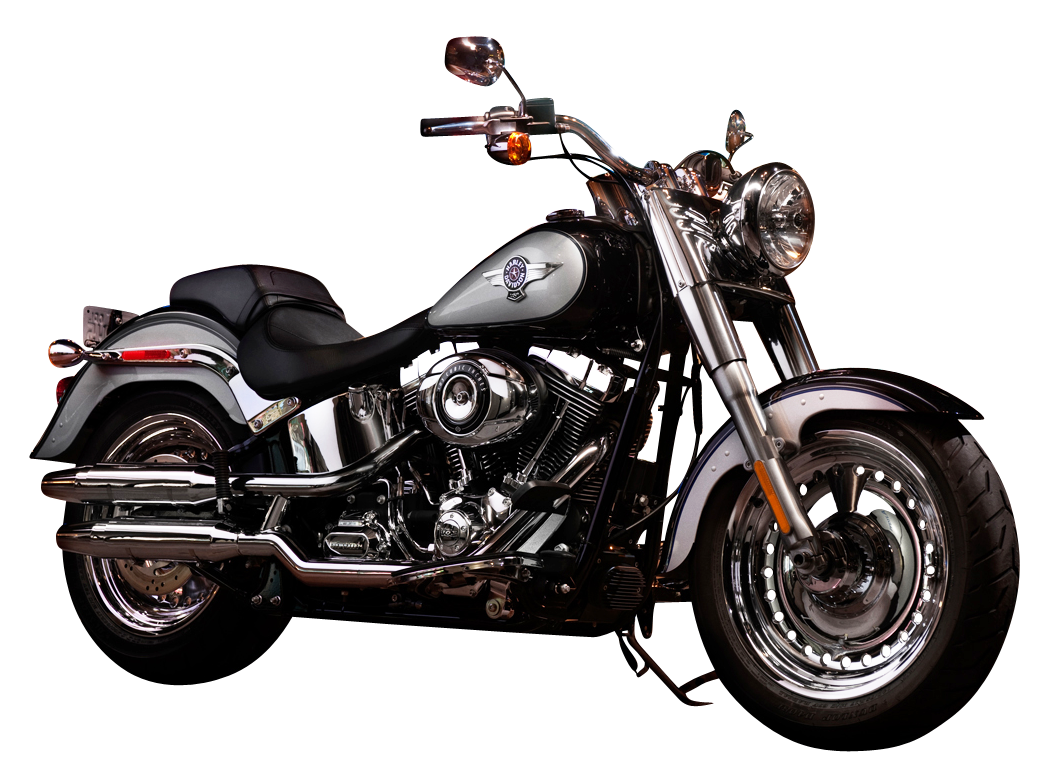

Moto |  |
