Description

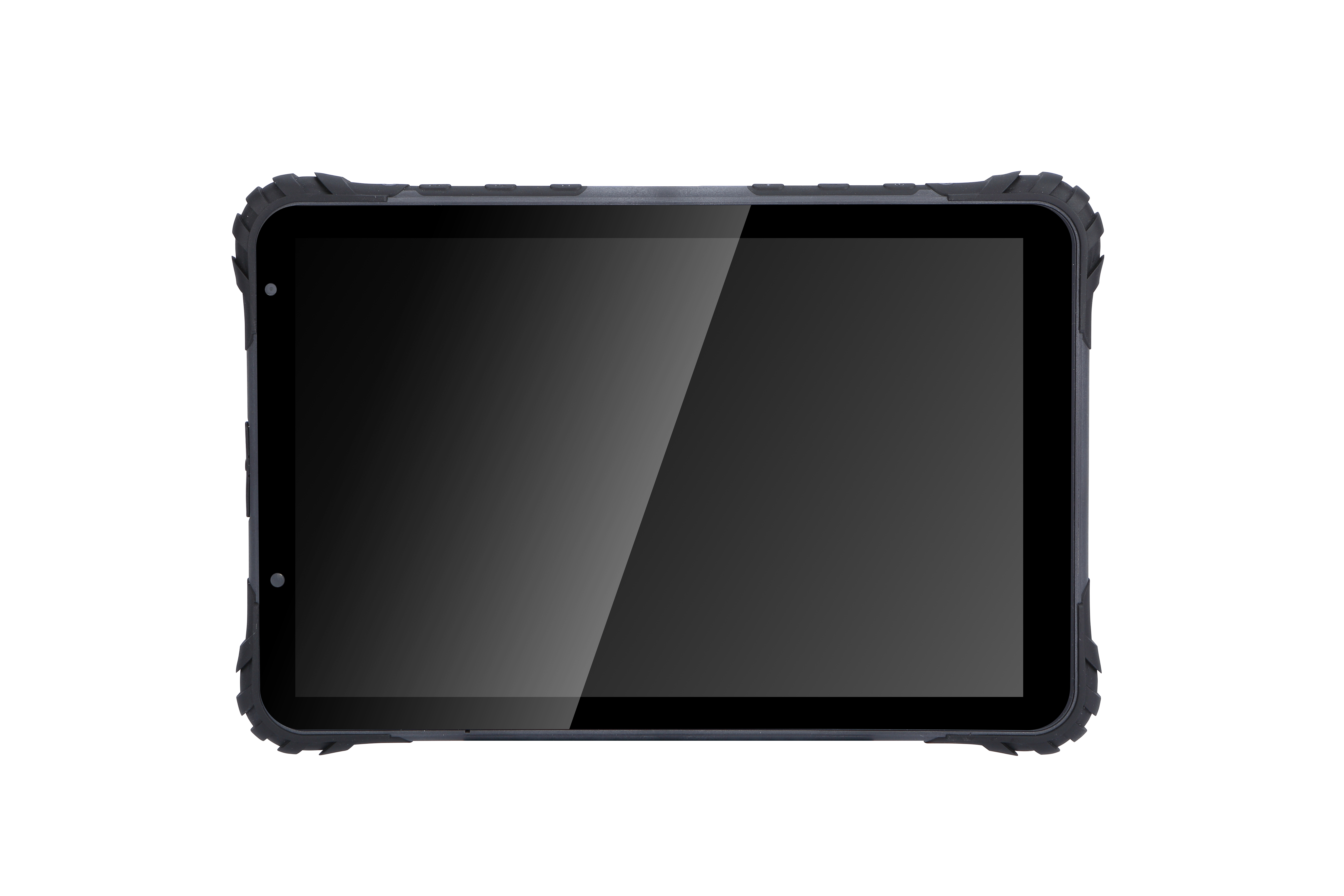

Standard display for Blaxtair system
-
Waterproof and dustproof
-
Compact 8"
|
|
|
Certifications and approvals
|
Type |
Standards |
|
Water/dust protection |
IEC 60529 - IP67 Sealing level is ensured under the following conditions
|
|
Climatic test |
ISO 16750-4
|
|
Vibrations & Shocks |
ISO 16750-3
|
|
Electromagnetic Compatibility (EMC/ESD) |
Directive 2014/30/UE
|
|
Electrical loads |
ISO 7637-2
|
|
Radio frequency |
RED - Radio Equipment Directive 2014/53/EU
|
|
Marks |
CE, FCC, ROHS, REACH |
|
IOT |
CE RED, UKCA, FCC ID, IC ID |
|
Region |
Regulatory compliance/quality marks |
|
Europe |
CE |
|
Great Britain |
UKCA |
|
USA |
FCC ID |
|
Canada |
IC ID |
IoT Country Approval
|
Region |
Countries |
|
Europe |
France, Germany, Austria, Spain, Poland, United Kingdom, Czech Republic, Italy, Belgium, Switzerland, Romania, Denmark, Portugal, Ireland, Indonesia, Ukraine, Slovak Republic, Hungary, Norway, Luxembourg, Sweden, Greece, Netherlands, Finland, Slovenia, Latvia, Estonia, Serbia, Monaco, Lituanie |
|
Middle East & Africa |
La Reunion |
|
North America |
United States of America, Canada |
Installation/configuration notes
|

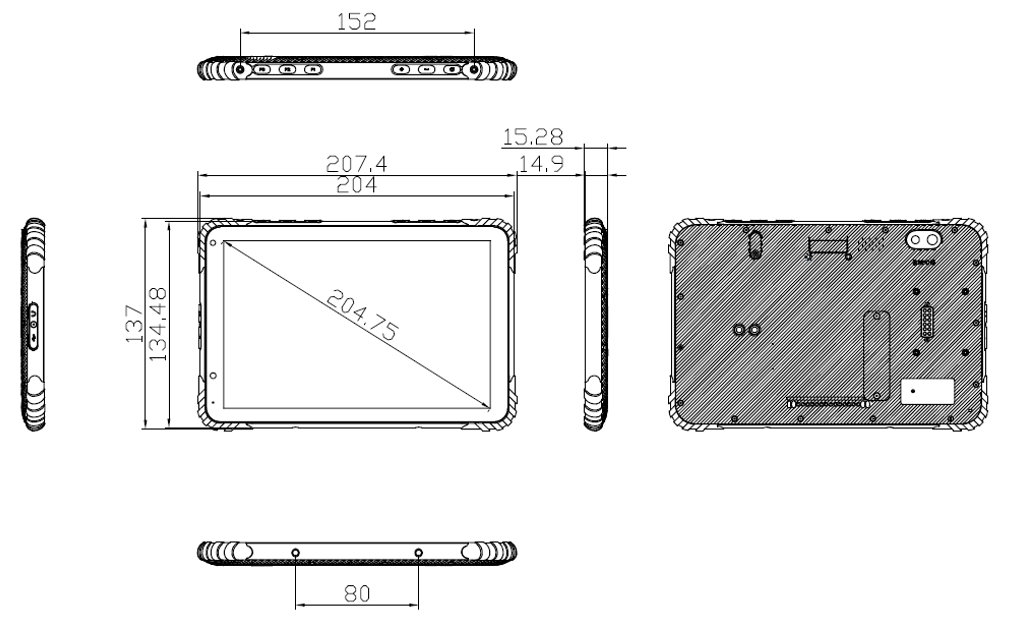

Smart display without cables |
|---|
|
|

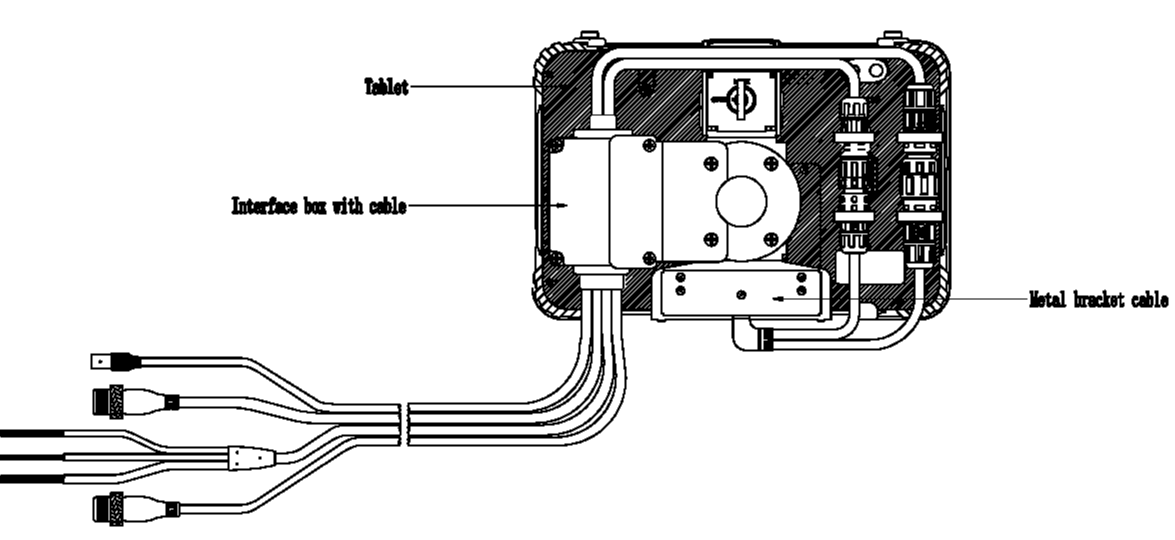

Smart display with metal craddle and cables |
|---|
|
|

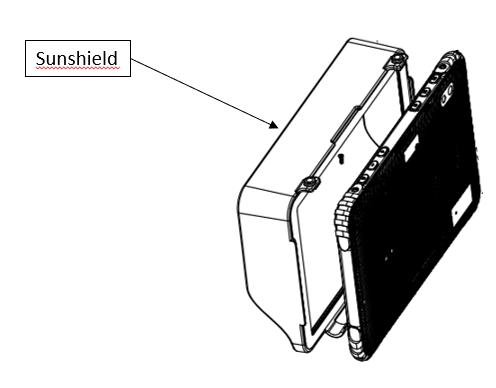

Smart display with Sunshield |
|
Technical specifications
Electrical
|
Rated Voltage |
12-24 VDC nominal
For vehicle voltage >24 VDC use a power converter |
|
Input voltage |
~12-32 VDC |
|
Power Consumption |
14.4 W-21W @12V (1.2A-1.8A)
Depends on system usage and configuration |
USER CONNECTION
|
Smart display connections |
|||
|---|---|---|---|
|
Cable 1 |
M12 |
1500 mm |
Male M12 6 Pin
|
|
Cable 2 |
no connector |
4800 mm |
System Power supply |
|
Cable 3 |
no connector |
4800 mm |
Discrete inputs x2 |
|
Cable 4 |
no connector |
4800 mm |
Discrete outputs x2 |
|
Cable 5 |
M12 |
1500 mm |
NA |
Image performance
|
Resolution |
1280 x 800 px |
Audio performance
|
Max. volume |
95 dB at 30 cm |
|
Min. volume |
60 dB at 30 cm |
Miscellaneous
|
Supported Languages |
English, French, German, Spanish |
|
Diagnostics |
Various status conditions are tracked in the internal diagnostic log. Critical fault conditions will also be displayed on the screen |
Mechanical
|
Smart display |
|
|---|---|
|
Dimensions (L x W x H) |
207 x 137 x 15 mm (8.1 x 5.4 x 0.6 in) |
|
Weight |
528 g |
Environmental
|
Operational Temperature |
-20°C to +60°C (-4 °F to 140 °F) |
|
Storage Temperature |
-20°C to +70°C (-4 °F to 158 °F) |
Ordering information
|
Smart display with craddle |
||
|---|---|---|
|
105-540-001 |
HS code |
8528.5900 |
|
1 x BXT Smart Display 8"
|
||
