LED Buzzer
Description
Audible and visual warning devices for the Blaxtair system
Our Led Buzzer combines the aesthetics of a sounder with the latest LED technology to create an extremely efficient sounder/visual alarm combination.
-
Weatherproof - IP65
-
Ultra-low current consumption
-
Temperature range from -20°C to +50°C
-
Three color for each state of the system (ready, alarm and technical problem)
|
|
|---|
Certifications and approvals
|
Standards |
Type |
|
Water/dust protection |
IP65 |
|
Marks |
CE, UKCA, EAC, RoHS, WEEE |
|
Region |
Regulatory compliance/quality marks |
|
Europe |
CE |
Installation / configuration notes
|

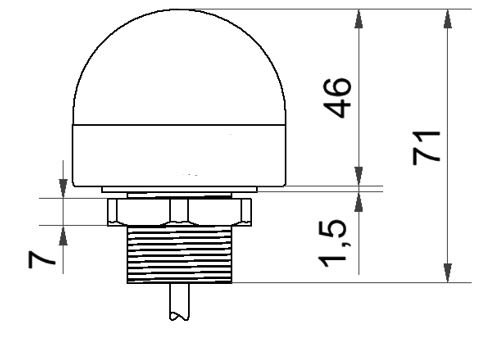

Front view |

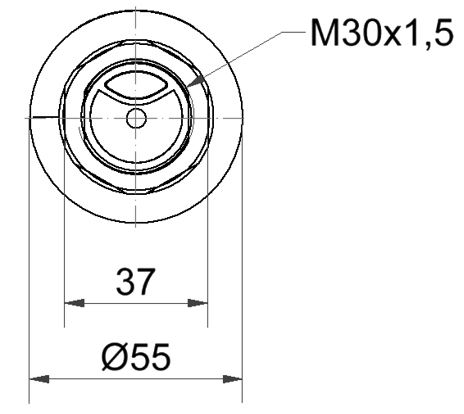

Bottom view |
|
|
Technical specifications
Electrical
|
Rated voltage |
10-30 Vdc |
|
Nominal voltage |
24 Vdc |
|
LED Buzzer current consumption (typical) |
80 mA @ 24 Vdc |
Light
|
Lens color |
Red / Green / Yellow |
|
Light Effect |
Fix |
|
Type |
Led |
Sound
|
Sounder Type |
Electronic |
|
Frequency and pattern |
Intermittent 3400 Hz - 1 tone |
|
Typical Sound Pressure Level @ 1m on axis |
85 dB @ 24 V |
User connection
|
Flash beacon connector |
Deutsch DT 4-pin |
|
Connector kit |
Deutsch DT 4-pin Pigtail Kit (Female Terminals) |
Mechanical
|
Flash beacon |
|
|---|---|
|
Dimensions (W x H) |
71 x 55 mm ( 2.8 x 2.2 in) |
|
Weight |
119 g |
|
Housing Colour |
Black |
|
Housing Material |
PC / ABS |
|
Cable length |
200 mm |
|
Connector kit length |
3 m |
Environmental
|
Operational Temperature |
-20°C to +50°C (-4 °F to 122 °F) |
|
Storage Temperature |
-20°C to +50°C (-4 °F to 122 °F) |
Ordering information
|
Led Buzzer |
||
|---|---|---|
|
100-211-001 |
HS code |
8530900000 |
|

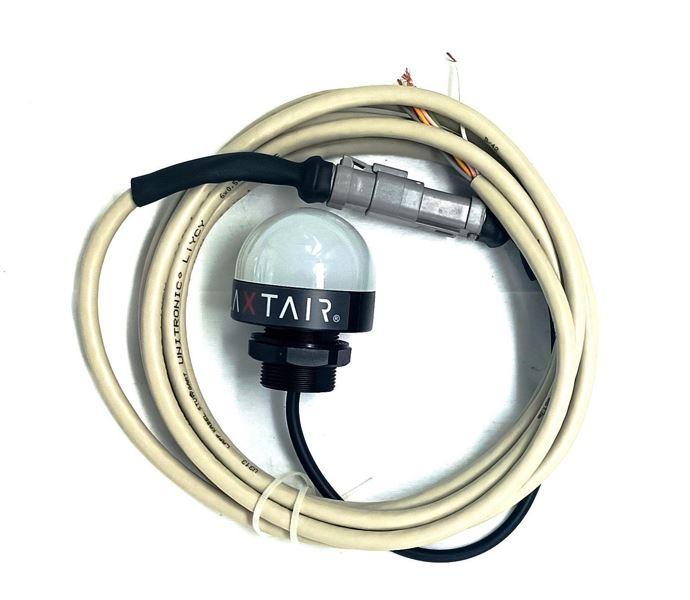

Blaxtair Origin Led Buzzer with 3 m cable (Deutsch connector) and mounting bracket |
||
