Standard Display
Description

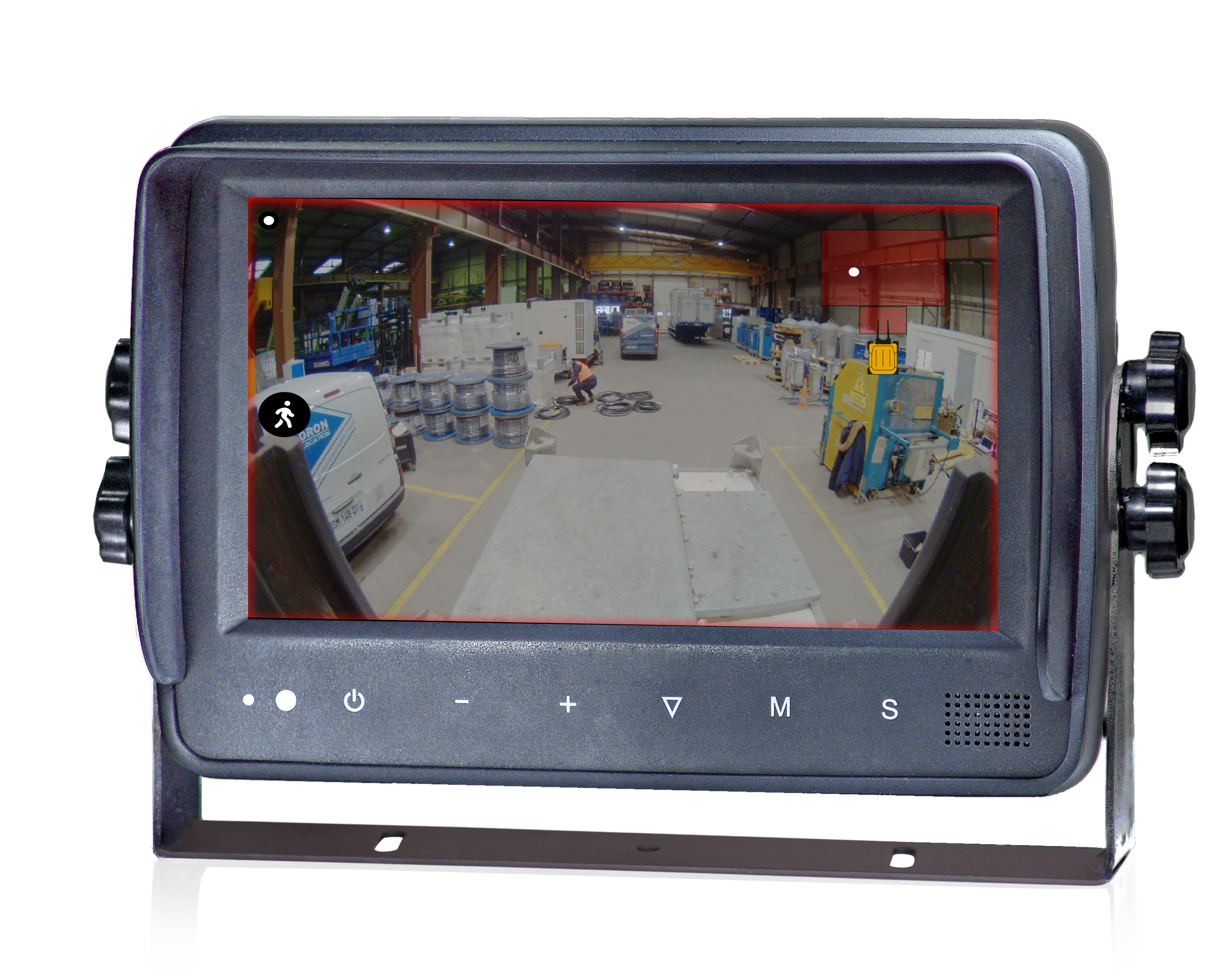

Standard display for Blaxtair Origin system
-
Waterproof and dustproof
-
Compact 7"
|
|
|---|
Certifications and approvals
|
Standards |
Type |
|
Water/dust protection |
IP66 |
|
Marks |
CE, FCC |
|
Region |
Regulatory compliance/quality marks |
|
Europe |
CE |
Installation/configuration notes
|
Front view |
Top view |
|
|
|

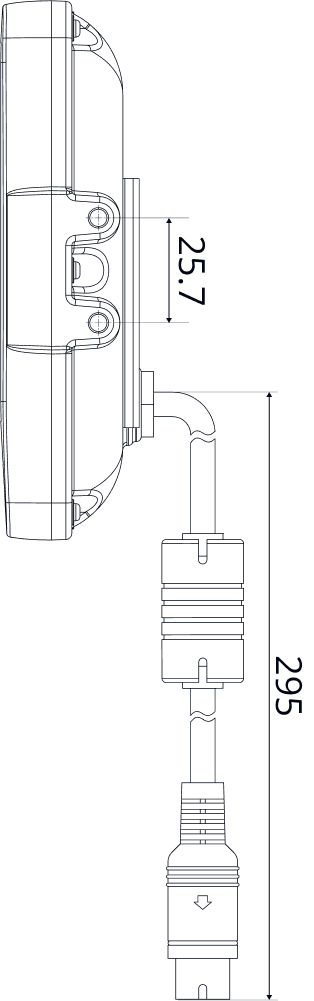

Side view |
|
|
|
|
Technical specifications
Electrical
|
Rated voltage |
12-24 Vdc |
|
Input voltage |
10 - 32 Vdc |
|
Power consumption |
~10W |
|
IR remote control battery |
CR2025 Lithium cell |
Display
|
Size |
7" |
|
Type |
TFT LCD |
|
Resolution |
1024 x 600 |
|
Image format |
PAL / NTSC |
|
Brightness |
600 cd/m² |
|
Contrast |
700:1 |
|
Display colors |
16.7 M dithering |
|
Color depth |
24 bit |
|
Viewing angle |
U: 85° / D: 85°, R/L: 85° |
Audio
|
Speaker |
x1 |
|
Max. volume |
80 dBA |
|
Min. volume |
The installer can set up the minimum sound of the display (between ~40dBA and maximum sound (80 dBA)) |
Mechanical
|
Display |
|
|---|---|
|
Dimensions (Wx H x D) |
197.2 x 131.3 x 37.4 mm (7.8 x 5.2 x 1.2 in) |
|
Weight |
765 g (with sunshield) |
|
Display with mounting bracket and sunshield |
|
|---|---|
|
Dimensions (Wx H x D) |
227.8 x 153.9 x 83.5 mm (9 x 6.1 x 3.3 in) |
|
Weight |
1.15 kg |
|
AV + Power supply cable |
|
|---|---|
|
Length |
2 m (5.56 ft) |
Environmental
|
Operational Temperature |
-20°C to +70°C (-4 °F to 158 °F) |
|
Storage Temperature |
-30°C to +80°C (-22 °F to 176 °F) |
Ordering information
|
Display |
||
|---|---|---|
|
200-514-001 |
HS code |
|
|
Blaxtair Origin standard display, multi-video input (x3 - no split screen feature), waterproof, with U-support bracket, sun shield, IR remote control (no battery included), and 2m AV + power supply cable |
||
|
Extension display cables |
||
|---|---|---|
|
Ordering notes The extension display cable is mandatory to connect the Blaxtair Origin processing unit to the display |
||
|
200-312-001 |
HS code |
|
|
3m extension display cable |
||
|
200-312-002 |
HS code |
|
|
5m extension display cable |
||
|
200-312-003 |
HS code |
|
|
10m extension display cable |
||
|
200-312-004 |
HS code |
|
|
15m extension display cable |
||
