Processing unit - Main cable

Processing unit main cable for Blaxtair Origin

Processing Unit - Main Cable

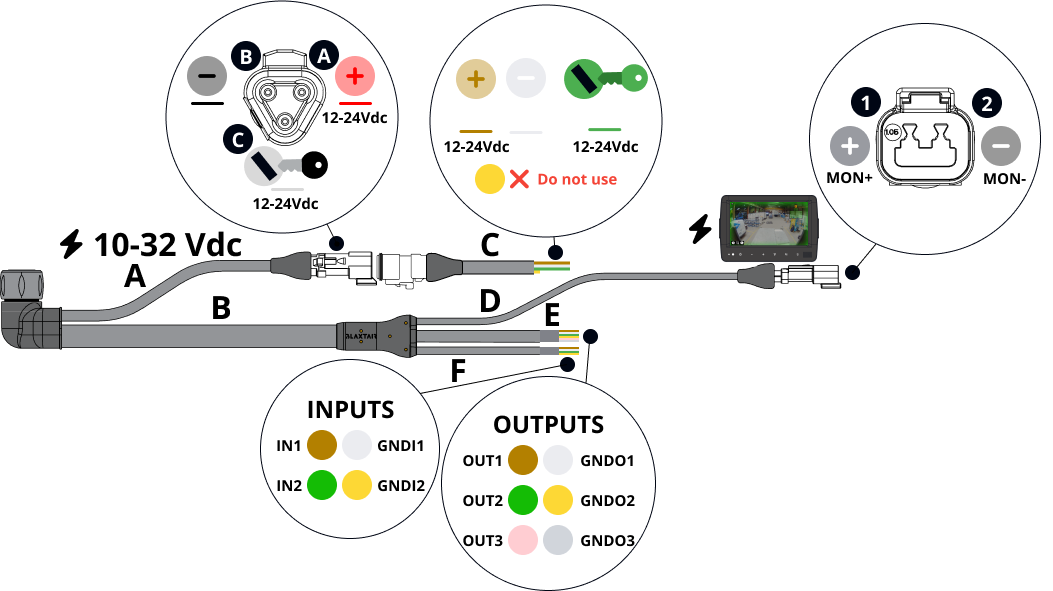

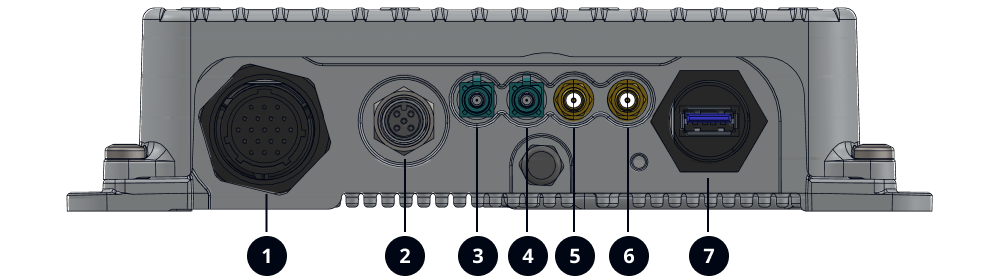

The main connector is connector 1 in the following figure

Processing unit - Main connector - 1			Main cable connector

Pinout	Function	Description	Recommended Wire Gauge	Section	Color / Label
L	B+	Battery Power (+12/+24V) *	AWG20	A	Red (A)
K	B+	Battery Power (+12/+24V) *	AWG20	A	Red (A)
N	B-	Battery Ground *	AWG20	A	Black (B)
U	B-	Battery Ground *	AWG20	A	Black (B)
M	Ignition	Discrete Input Ignition signal 12V à 24V	AWG20	A	Grey (C)
B	Disc_In1_GND	Discrete Input 1 Ground	AWG22	B-F	White (IN1-R GND)
A	Disc_In1	Discrete Input 1 Signal 36V - 100mA Max	AWG22	B-F	Brown (IN1-R)
C	Disc_In2_GND	Discrete Input 2 Ground	AWG22	B-F	Yellow (IN2-R GND)
P	Disc_In2	Discrete Input 2 Signal 36V - 100mA Max	AWG22	B-F	Green (IN2-R)
R	Disc_Out1	Discrete Ouput 1 Signal I_Load=0,2A	AWG22	B-E	Grey (OUT1)
V	Disc_Out1_GND	Discrete Output 1 Ground	AWG22	B-E	Grey (GNDO1)
S	Disc_Out2	Discrete Ouput 2 Signal I_Load=0,2A	AWG22	B-E	Grey (OUT2)
T	Disc_Out2_GND	Discrete Output 2 Ground	AWG22	B-E	Grey (GNDO2)
J	Disc_Out3	Discrete Ouput 3 Signal I_Load=0,2A	AWG22	B-E	Grey (OUT3)
H	Disc_Out3_GND	Discrete Output 3 Ground	AWG22	B-E	Grey (GNDO3)
F	CAN_H	CAN - 500kbits on Rload=120R	AWG22	B-E	White (C)
G	CAN_L	CAN - 500kbits on Rload=120R	AWG22	B-E	White
D	Power_Disc_Out4	Power Discrete output I_Load=1A	AWG20	B-D	White (MON+)
E	Disc_Out4_GND	Power Discrete Ground	AWG20	B-D	White (MON-)

*It is mandatory to connect the ground of each discrete input used (Disc_In1_GND and/or Disc_In2_GND) to the electrical ground.

Main Cable
200-310-001	HS code

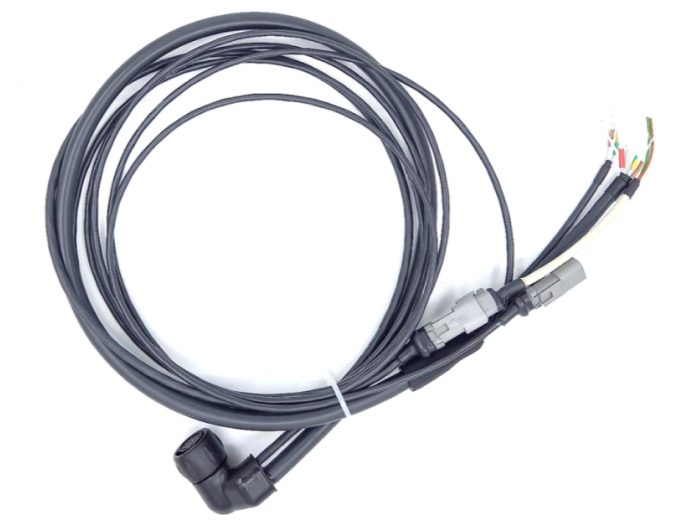

Main cable including 2 x input, 3 x output, 1 x Can bus (1m) - 1 x display power supply with 2 PIN Deutsche connector (5m) - 1 x processing unit power supply with 3 PIN Deutsche connector (1 m)
