2.2 Datasheet - Checklist

Please find the PDF version at this link.

Description

The Blaxtair Checklist is a tool used to ensure compliance with safety regulations and standards in workplaces. It consists of a set of questions that guide employers and employees in identifying potential hazards, assessing safety practices, and implementing corrective measures to prevent workplace injuries and accidents.

The checklist system consists of:

a smart display installed on a vehicule with an optional PIN code access and set of checklist questions
an online web dashboard to administrate the vehicle fleet equiped with the checklist, create accounts and analyse reports

The user manual providing necessary information to install and operate the Blaxtair Checklist System is presented here.

THE BLAXTAIR CHECK LIST IS TO BE USED AS A SAFETY TOOL BUT DOES NOT REPLACE THE NEED FOR DRIVERS TO COMPLY WITH THE RULES OF THE ROAD, OSHA RULES AND REGULATIONS AND OTHER DRIVING SAFETY PRACTICES AND STANDARDS.

Product versions

The Blaxtair checklist can either be installed :

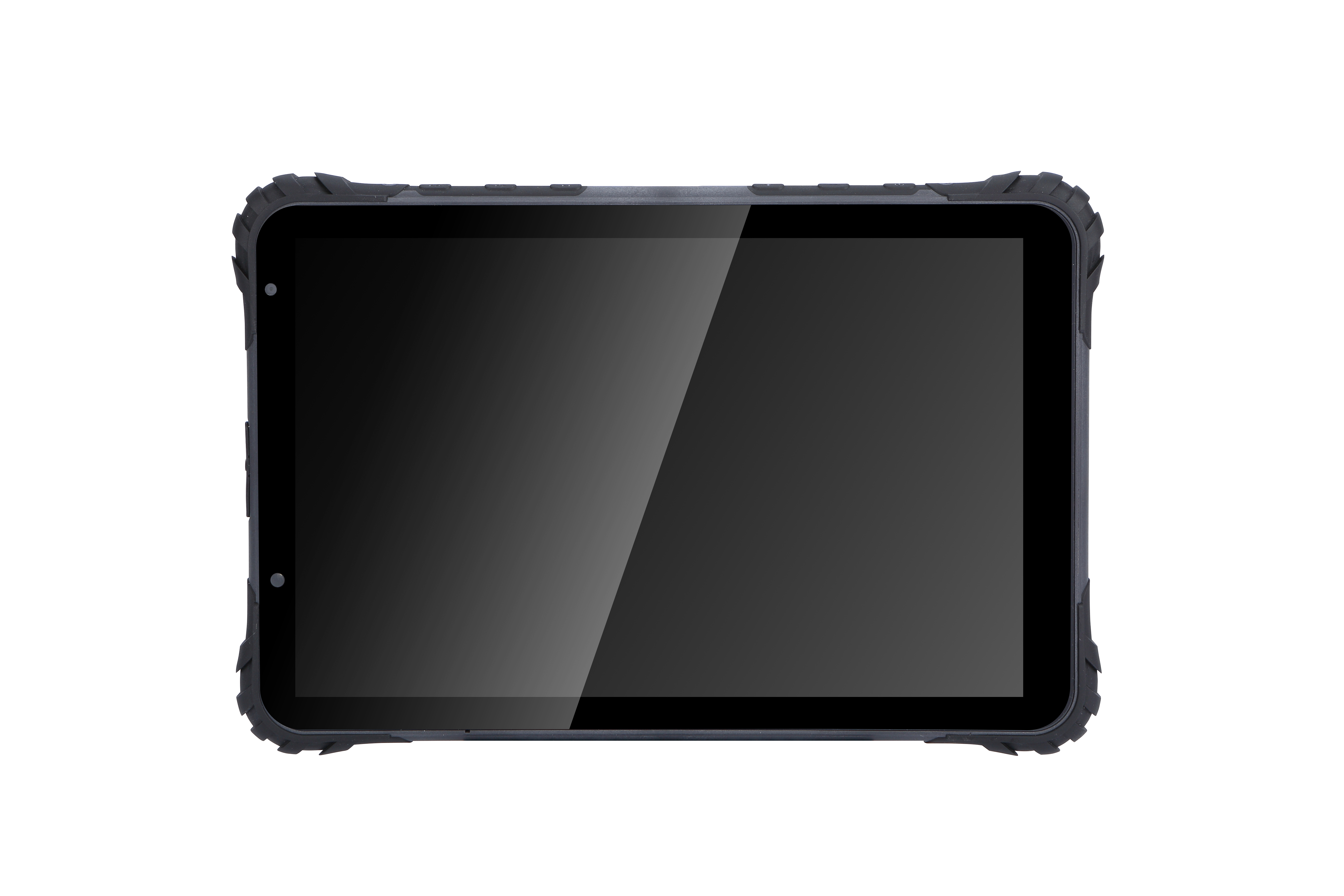

Stand alone : Smart AI display with its craddle installed on the vehicule. The smart display is touchscreen. It allows to answer the questions.
Embedded to Blaxtair Origin :
- The display of BXTO is replaced by the Smart AI display of the checklist.
- After filling the checklist, the smart display switchs to the BXT Origin detection live view.
- The checklist can be installed on an existing BXTO. A software update might be required.
Embedded to Blaxtair MR130-MR260 :
- The checklist is displayed on the smart display of the Blaxtair MR130/MR260 system.
- After filling the checklist, the smart display switchs to the BXT live view.
- The checklist can be installed on an existing Blaxtair system. A software update might be required.

The smart diplay datasheet is presented here. This document presents certification & approvals, installation and configuration notes with dimensions of the system, technical specifications (electrical, mechanical, environmental).

Features

The Blaxtair Checklist features are presented below:

PIN CODE FEATURE: allows to identify the user of the vehicule. This feature can be enabled or disabled via the Blaxtair dashboard. If PIN CODE is activated, it will be requested at each key off/ key on and can therefore serve as an access control.
QUESTIONS FEATURE: allows to perform an inspection of the vehicule depending on the answers to a set of questions.
- The questions can be either critical or not.
- The critical questions are those that allow to interact with the vehicle in case the inspection is failed.
DISCRETE OUTPUT FEATURE: the checklist provides an output signal.
Depending on the type of questions and answers, the ouput signal can be either 12V or 0V.
The use of this ouput is the exclusive responsability of the customer. For instance, this output could be used to allow movement/ engine start or not - this choice and related connection is under customer’s responsibility. Slowdown system is NOT provided in the checklist equipement.
NOTIFICATION FEATURE: allows to send an email to a predefined list of operators in case of failed checklist. This allows to plan and automatise the maintenance of the vehicules.
DASHBOARD FEATURE:
- Define the checklist fleet (users, vehicules, questions)
- Monitor the state of the inspections depending on the answers to the checklist.

Needs and requirements

The Blaxtair checklist requires 4G or WIFI connection for the following steps:

Setting up of the checklist (first configuration for example)
Updating content of the checklist (change of questions for exemple)
Sending reports to the checklist dashboard

The blaxtair checklist needs a 12-32VDC power.

Note

The checklist can still be answered in case of absence of connection. The validated report will be sent afterwards when the connection is retrieved.

Ordering information

Checklist product on Blaxtair MR130/MR260

Licence for the Checklist feature (compatible with Blaxtair MR130/MR260 system)

699-980-008

HS code

Licence card allowing to activate the checklist on the Blaxtair MR130/MR260 system.

1 licence activates the checklist on 1 Blaxtair system.

Checklist product on Blaxtair Origin

Checklist product with Blaxtair Origin system
100-950-013	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system with checklist - MR120 - Forklifts and small trucks configuration - Front or Rear application - 5 m 1 x color camera with a U-bracket mount, 1 x 5m camera cable, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, output, and Can bus, 1 x display with mounting kit, 3m display extension cable, 1 x Check-list Tablet kit for BXTO
100-950-014	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system with checklist - MR120A - Forklifts and small trucks configuration - Front and Rear alternate application - 5 m 2 x color camera with a U-bracket mount, 2 x 5m camera cable, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, output, and Can bus, 1 x display with mounting kit, 3m display extension cable, 1 x Check-list Tablet kit for BXTO
100-950-015	HS code	8530.80.00.00
Blaxtair Origin pedestrian detection system wit checklist - MR120A - Forklifts and small trucks configuration - Front and Rear alternate application - 5 m - Pro Installation kit 2 x color camera with a U-bracket mount, 2 x 5m camera cable, 1 x processing unit - 12-24VDC - including 128 GB SSD, IOT/GPS module & antenna, and fuse kit, 1 x power supply cable including inputs, output, and Can bus, 1 x display with mounting kit, 3m display extension cable, 1 x Check-list Tablet kit for BXTO, 1 x Pro installation kit for BXTO

Checklist product stand alone version

Checklist standalone product
140-950-002	HS code
1 x BXT AI Smart Display 8" 1 x Metal Cradle with cables with 6 axis mount bracket (Power : VCC 12-32V, 2 x Inputs, 2 x outputs & AHD camera connector) 1 x Protective hood 1 x Relay kit 12V 1 x Relay kit 24V 1x 4m extension cable
